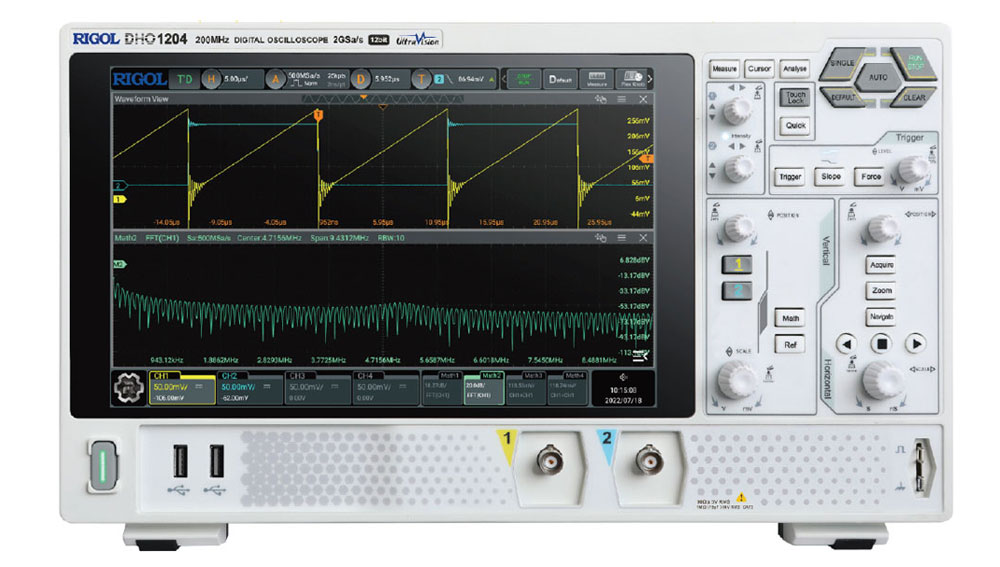

DHO1000 series
DHO1000 시리즈 디지털 오실로스코프에는 RIGOL에서 개발한 2세대 칩셋이 장착되어 있습니다. 노이즈 플로어(Noise floor)가 낮고 12비트의 고해상도 오실로스코프 DHO4000은 아주 작은 신호도 확인할 수 있습니다.
Product Features
• Brand-new chipset "Centaurus" developed by RIGOL
• Ultra-low noise floor for cleaner signals, measuring small signals accurately
• 12-bit vertical resolution[1]
• 70/100/200 MHz analog bandwidth (selectable), 2/4 analog channels, and 1 EXT channel
• Up to 2 GSa/s real-time sample rate
• Max. memory depth: 100 Mpts (optional)
• Vertical sensitivity range: 500 μV/div to 10 V/div
• Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
• 10.1'' 1280*800 HD touch display
• User-friendly Flex Knobs, bringing smoother interaction
• Standard photoelectric encoder operating knobs, effectively prolonging its service life
• Standard USB Device & Host, LAN, and HDMI interfaces
ㅡ 라인업 ㅡ

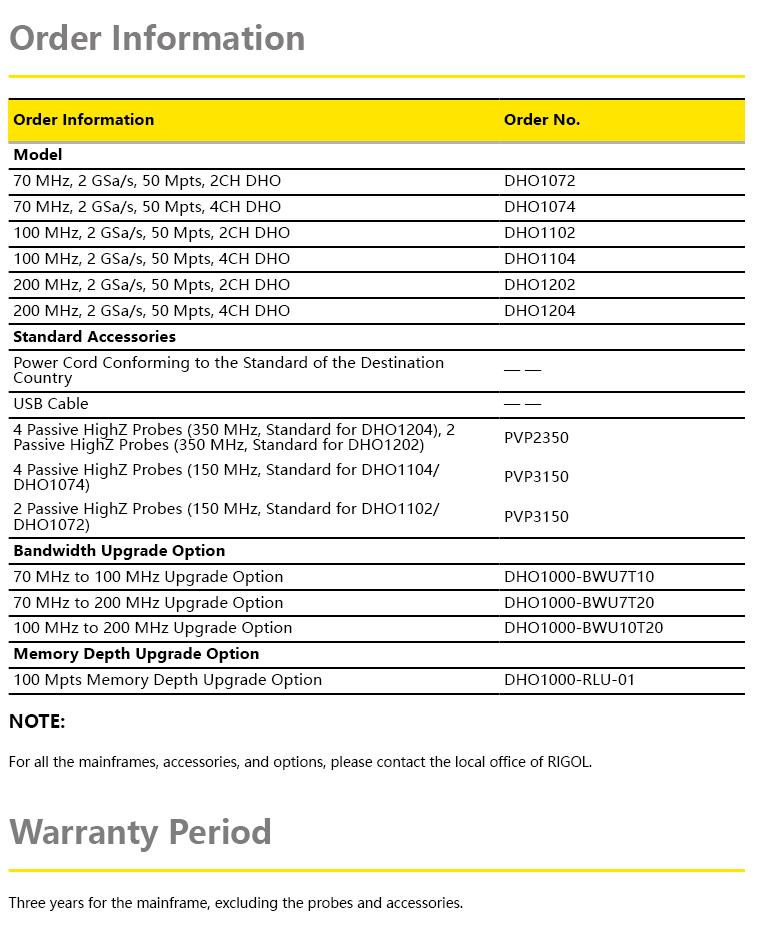

모델 | 대역폭 | 아날로그채널 | 최대메모리깊이 | 파형캡처속도 |
DHO1204U | 200MHz | 4 | 50Mpts(opt.) | 500,000wfms/s |
DHO1202U | 200MHz | 2 | 50Mpts(opt.) | 500,000wfms/s |
DHO1204 | 200MHz | 4 | 100Mpts(opt.) | 1,500,000wfms/s |
DHO1202 | 200MHz | 2 | 100Mpts(opt.) | 1,500,000wfms/s |
DHO1104 | 100MHz | 4 | 100Mpts(opt.) | 1,500,000wfms/s |
DHO1102 | 100MHz | 2 | 100Mpts(opt.) | 1,500,000wfms/s |
DHO1072 | 70MHz | 2 | 100Mpts(opt.) | 1,500,000wfms/s |
DHO1074 | 70MHz | 4 | 100Mpts(opt.) | 1,500,000wfms/s |
