- 제품사양
-
- 입력용량
- 100W x 2ch
300W & 400W
max 2,000W - 입력전압
- up to 600V
- 기 타
- Ethernet, USB and GPIB interfaces
- 특 징
- up to 10ch
- 제품설명

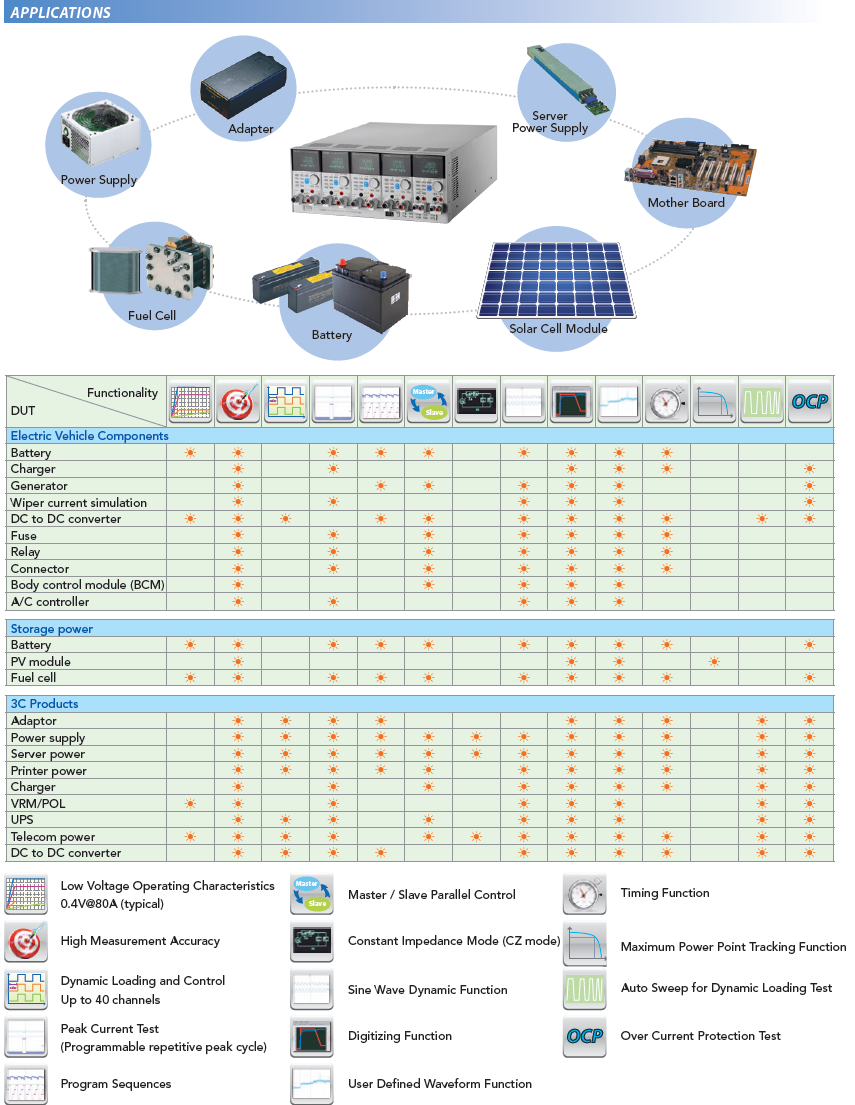

- Chroma's 63600 series DC electronic loads are designed for testing multi-output AC/DC power supplies, DC/DC converters, chargers,batteries, server power supplies, and power electronic components. They are excellent for research, development, production, and incoming inspection applications.
- 원산지 | Taiwan
- 제품 정보

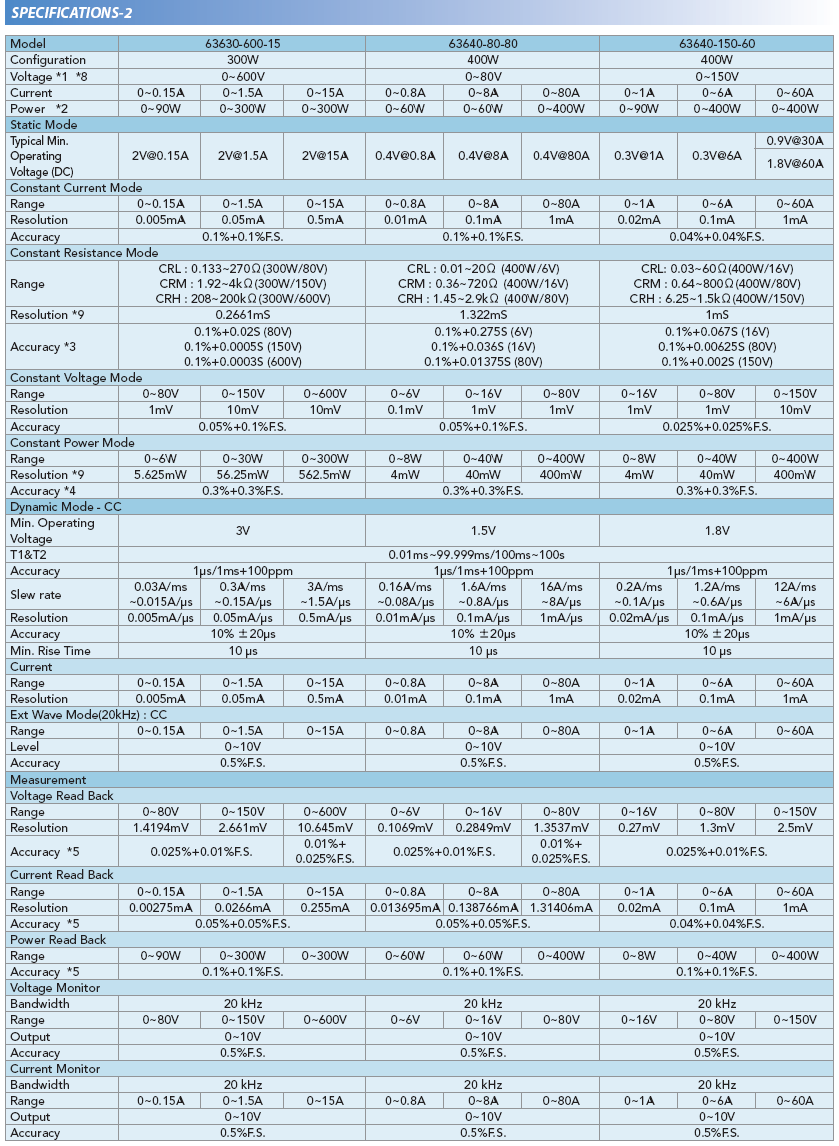

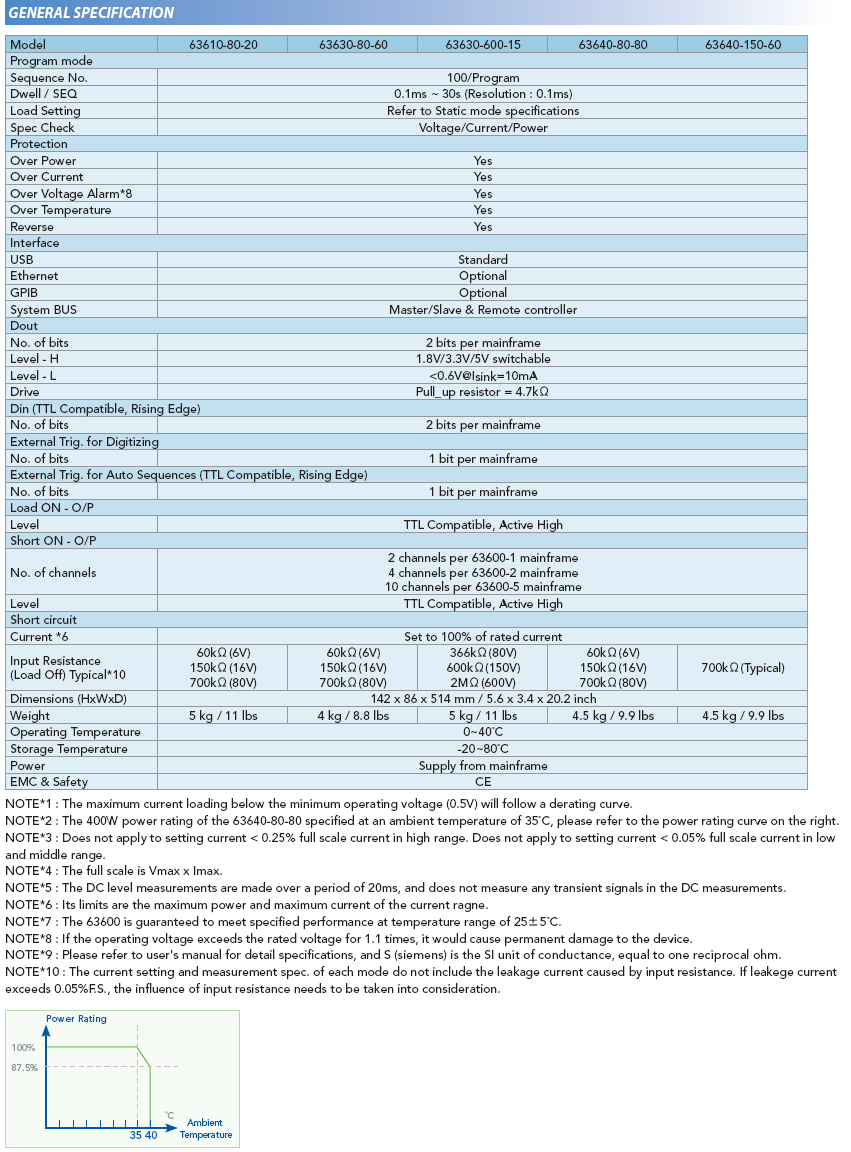

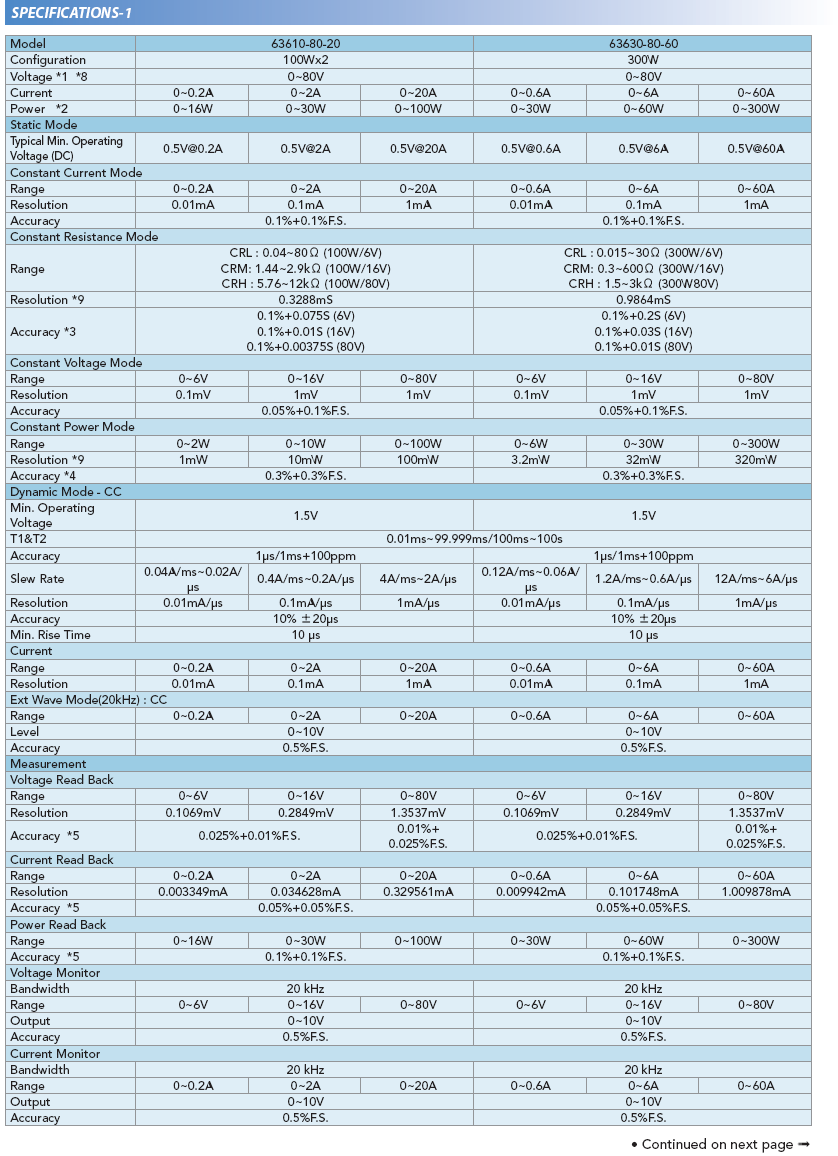

- 상세 사양
- 기타 옵션
KEY FEATURES
■ Max. power : 100Wx 2(Dual),300W & 400W
■ Voltage range : up to 600V

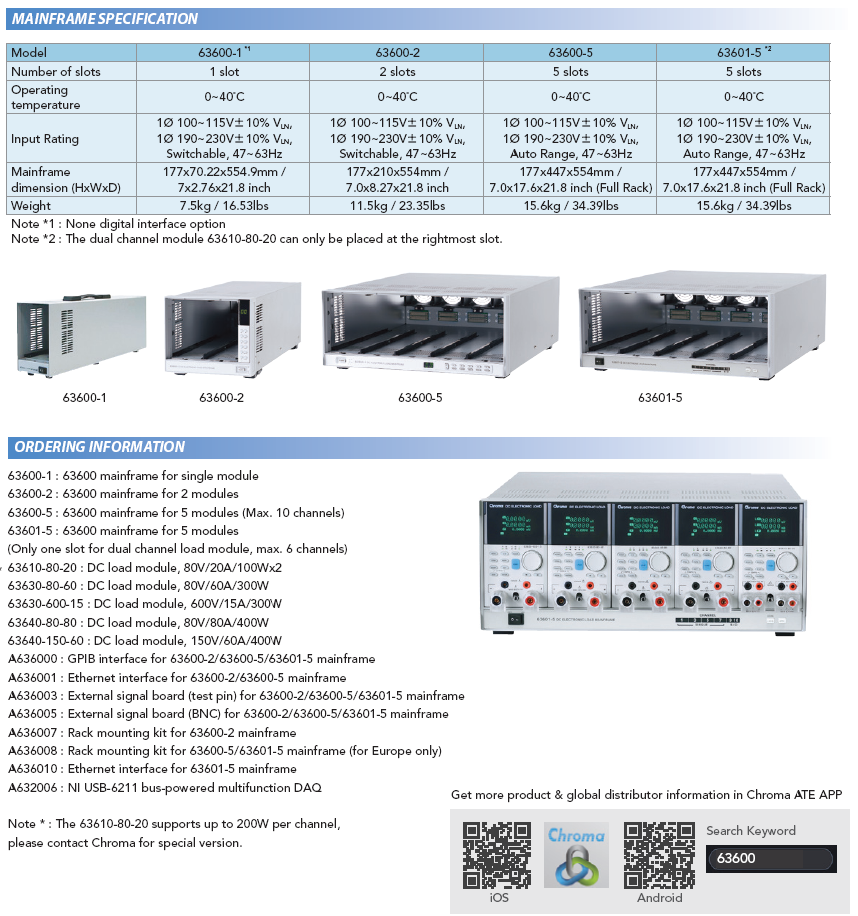

■ 5 module mainframe Max. 2000W, load modules up to 400W/ea
■ Up to 10 channels in one mainframe,fit for testing multiple output SMPS
■ 0.4V @ 80A (Typical) low voltage operatingcharacteristics

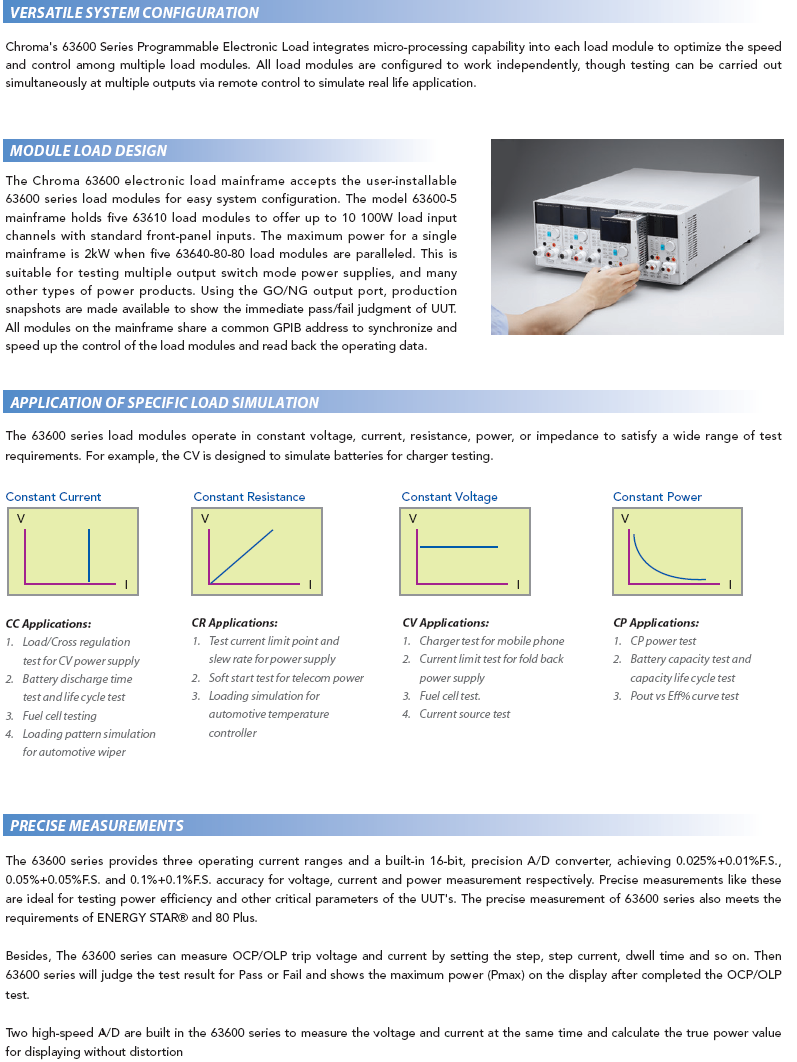

■ Flexible CC, CR, CV and CP operation modes
■ CZ mode for turn on capacitive load simulation
■ Parallel mode for high current and power application up to 2kW
■ Multi channel synchronous control
■ Auto frequency sweep up to 50kHz
■ Real time power supply load transient response simulation and Vpk+/- measurement
■ User defined waveform
■ Max. Power Point Tracking
■ User programmable 100 sequential front panel input status for user-friendly operation
■ Precision voltage and current measurement
■ Precision high speed digitizing measurement/data capture
■ Voltage, current and Pmax measurement for OCP/OLP testing
■ Timing measurement for batteries
■ Short circuit simulation
■ Self-test at power-on
■ Full protection : OC, OP, OT protection and OV alarm
■ Ethernet, USB and GPIB interfaces
