Oscilloscopes / MDA 8000HD

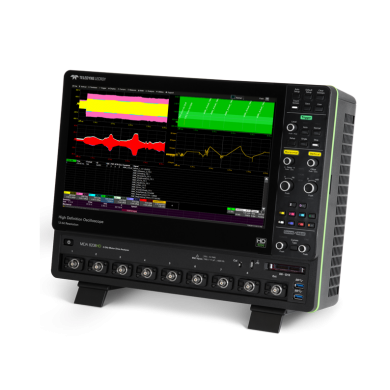

The Motor Drive Analyzer is built on an 8 channel, 12-bit resolution oscilloscope platform. It acquires any signal and performs three-phase electrical and mechanical power calculations. It provides complete power section and embedded control test coverage
Main Specifications | |
| Bandwidth | 350 MHz - 2 GHz |
| Memory | 50 Mpts - 5 Gpts |
| Max Memory | 5 Gpts |
| Input Channels | 8 |
| Max Sampling Rate | 10 GS/s |
| Resolution | 12-bit |
The mean-value Numerics table displays voltage, current, power, speed, torque, etc. values for short (or long) time periods during constant load, speed and torque operating conditions - just like what a dedicated power analyzer instrument provides.
Capture thousands of power cycles over long time periods. Per-cycle Waveform views help you understand dynamic behaviors. Use Zoom+Gate to isolate and correlate power behaviors to control system operation during dynamic load, speed, and torque operating conditions.
Acquire and display analog, digital and serial data signals from both power and embedded control systems. Correlate power system behaviors to control system activity during time periods as short as a single device switching cycle.
Nine speed, four angle, and five torque sensors supported – most supported only by the Motor Drive Analyzer. Calculate mechanical power at your bench without external sensors connected.
Rigorous software DFT method precisely separates desired frequency content. Provides THD numeric calculation and per-cycle Waveforms, harmonic order table and spectral displays (up to nine simultaneous).
Two simultaneous vector displays permit visualization of three-phase system voltage and current. Vector information can be harmonically filtered and is compatible with Zoom+Gate to show vector changes during dynamic or long acquisitions.
Support for two simultaneous αβγ (Clarke) and dq0 (Park) real-time transformations with X-Y plot capability available for d vs. q and α vs. β components
View and control 16 analog channels on a single display with OscilloSYNC Oscilloscope Synchronization. Setup is incredibly easy – it’s like having a single 16-channel acquisition system with the benefit of being able to use each oscilloscope or MDA independently.
| Bandwidth | 350 MHz |
| Sample Rate | 10 GS/s on 8 Ch with ESR |
| Maximum Acquisition Memory | 5 Gpts (2 Ch operation) |
| Input Channels | 8 |
| Vertical Resolution | 12 bits |
| Bandwidth | 500 MHz |
| Sample Rate | 10 GS/s on 8 Ch with ESR |
| Maximum Acquisition Memory | 5 Gpts (2 Ch operation) |
| Input Channels | 8 |
| Vertical Resolution | 12 bits |
| Bandwidth | 1 GHz |
| Sample Rate | 10 GS/s on 8 Ch with ESR |
| Maximum Acquisition Memory | 5 Gpts (2 Ch operation) |
| Input Channels | 8 |
| Vertical Resolution | 12 bits |
| Bandwidth | 2 GHz |
| Sample Rate | 10 GS/s on 8 Ch with ESR |
| Maximum Acquisition Memory | 5 Gpts (2 Ch operation) |
| Input Channels | 8 |
| Vertical Resolution | 12 bits |
