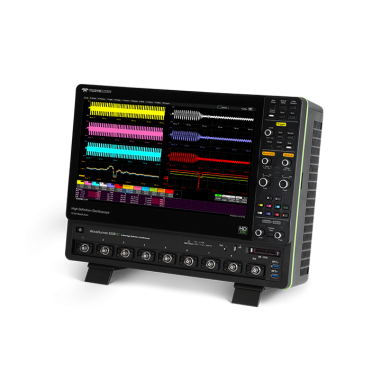

        제품명 Oscilloscopes
        모델명 WaveRunner 8000HD
        특 징 •대역폭: 350 MHz - 2 GHz
        상세사양
        •Bandwidth : 350 MHz - 2 GHz
        •Memory : 50 Mpts - 5 Gpts
        •Max Memory : 5 Gpts
        •Max Sampling Rate: 10 GS/s
        •Input Channels : 8
        •Resolution :12-bit
        브랜드 LECROY
        판매가격 전화문의 : ☎070-4333-8982
        배송비 무료배송
        견적문의 위시리스트

        상품 기본설명

        Oscilloscopes / WaveRunner 8000HD

        제품사양

        Providing 12 bits all the time, more channels than any other oscilloscope, and long memory without tradeoffs – the WaveRunner 8000HD 8 channel oscilloscope captures every detail.


        Main Specifications

        Bandwidth350 MHz - 2 GHz

        Memory50 Mpts - 5 Gpts
        Max Memory5 Gpts
        Input Channels8
        Max Sampling Rate10 GS/s
        Resolution12-bit



        Key Features
        • Highest resolution – 12 bits all the time
        • More channels, flexibility – 8 analog and 16 digital channels
        • Longest Memory – 5 Gpt records with simple navigation – no compromise
        • View 16 channels on one display with OscilloSYNC™
        • Powerful, deep toolbox enables and simplifies complex analysis
        • MAUI with OneTouch user interface for intuitive and efficient operation



        HD4096 – 12 Bits All the Time, 16 x Closer to Perfect
        Teledyne LeCroy HD4096 logo badge

        Teledyne LeCroy high definition 12-bit oscilloscopes use unique HD4096 technology to provide superior and uncompromised measurement performance. HD4096 technology provides the highest resolution and lowest noise at full bandwidth—12 bits all the time with no compromise.

        More Channels, More Flexibility
        Two WaveRunner 8000HD 8 channel high definition oscilloscopes connected with OscilloSYNC testing a small motor drive with the HVD Series high voltage differential probes and three CP series current probes acquiring signals from the drive output with twelve signals displayed on one oscilloscope display using also digital logic (MSO) inputs, a passive probe, a high voltage fiber optic probe, a ZS1000 single-ended active probe, and a current sensor connected to a CA10 current sensor adaptor

        The WaveRunner 8000HD 8 channel oscilloscopes are the only oscilloscopes to offer 8 analog channels and 16 digital channels, allow synchronization of two 8-channel systems, and not penalize you for using a digital channel. Other oscilloscopes require that you trade a valuable analog channel in exchange for digital inputs.

        16 Channels with OscilloSYNC
        Two WaveRunner 8000HD 8 channel high definition oscilloscopes connected together using OscilloSYNC to provide 16 channels on one oscilloscope display

        View and control 16 analog channels on a single display with OscilloSYNC technology – just like having a single 16-channel acquisition system. Setup is incredibly easy with four simple steps. The activation key can be downloaded at no charge from: teledynelecroy.com/redeem/OscilloSYNC

        Longest Memory, Simple Navigation
        WaveRunner 8000HD 8 channel high definition oscilloscope displaying a five gigapoint (Gpt) acquisition with a fault at the very end of the acquisition

        With up to 5 Gpts of acquisition memory, WaveRunner 8000HD 8 channel, 12-bit oscilloscopes capture long periods of time, yet maintain high sample rate for visibility into the smallest details. WaveRunner 8000HD can acquire 500 ms of data at the full 10 GS/s sample rate - and always with 12 bits of resolution.

        3-Phase Power Conversion Testing
        WaveRunner 8000HD 8 channel high definition oscilloscope with the HVD Series high voltage differential probes and three current probes acquiring signals from a DC to AC inverter

        WaveRunner 8000HD 8 channel, 12-bit oscilloscopes deliver 8 analog channels (16 with OscilloSYNC), 3-phase power analysis software, and high performance probes for inverter subsection, power system and control testing.

        Automotive Electronics Testing
        WaveRunner 8000HD 8 channel high definition oscilloscope performing an automotive ethernet test, displaying decoded data with an intuitive, color-coded overlay and a searchable protocol table while also showing an eye diagram of the PAM-3 automotive ethernet signal

        WaveRunner 8000HD 8 channel, 12-bit oscilloscopes combine a high channel count, long memory, and wide range of validation and debug software to best address the specific test needs of the automotive industry.

        Power Integrity and Power Sequencing Test
        WaveRunner 8000HD 8 channel high definition oscilloscope screen capture of turn-on power sequence of eight different power rails during a fifty megapoint (Mpt) acquisition using coaxial cables and RP4030 solder-in leads 1 megohm (MΩ) coupled to the oscilloscope inputs

        WaveRunner 8000HD 8 channel, 12-bit oscilloscopes' high resolution, long memory and high channel count let you validate and debug all aspects of power supply, delivery and consumption - for complete confidence.

        Deeply Embedded Computing Systems Testing
        WaveRunner 8000HD 8 channel high definition oscilloscope screen capture of low-speed (I2C, SPI, UART-RS232, etc.) serial data signals, decoding them, and presenting decoded data in an intuitive, color-coded overlay and in a searchable protocol table while also performing statistical analysis and displaying histograms, tracks, and eye diagrams

        WaveRunner 8000HD 8 channel, 12-bit oscilloscopes acquire the longest records at the highest resolution for the most comprehensive deeply embedded computing system analysis (analog, digital, serial data and sensor).









        라인업


        WaveRunner 8038HD   (350 MHz Bandwidth, 8 Input Channels, 50 Mpts/ch, 10GS/s)
        Quick Specs
        Bandwidth350 MHz
        Sample Rate10 GS/s on 8 Ch with ESR
        Maximum Acquisition Memory5 Gpts (2 Ch operation)
        Input Channels8
        Vertical Resolution12 bits
        WaveRunner 8058HD   (500 MHz Bandwidth, 8 Input Channels, 50 Mpts/ch, 10GS/s)
        Quick Specs
        Bandwidth500 MHz
        Sample Rate10 GS/s on 8 Ch with ESR
        Maximum Acquisition Memory5 Gpts (2 Ch operation)
        Input Channels8
        Vertical Resolution12 bits
        WaveRunner 8108HD   (1 GHz Bandwidth, 8 Input Channels, 50 Mpts/ch, 10GS/s)
        Quick Specs
        Bandwidth1 GHz
        Sample Rate10 GS/s on 8 Ch with ESR
        Maximum Acquisition Memory5 Gpts (2 Ch operation)
        Input Channels8
        Vertical Resolution12 bits
        WaveRunner 8208HD   (2 GHz Bandwidth, 8 Input Channels, 50 Mpts/ch, 10GS/s)
        Quick Specs
        Bandwidth2 GHz
        Sample Rate10 GS/s on 8 Ch with ESR
        Maximum Acquisition Memory5 Gpts (2 Ch operation)
        Input Channels8
        Vertical Resolution12 bits
