Programmable DC Electronic Load (UEL Series)

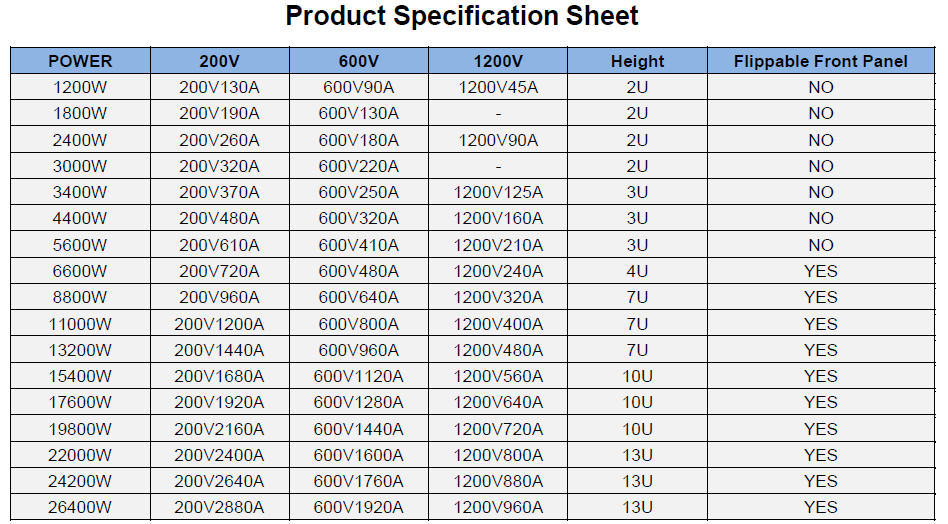

| Programmable DC Electronic Load [UEL-Series] LINE-UP | ||||||
| POWER | VOLTAGE | CURRENT | MODEL | HEIGHT | Flippable Front Panel | |

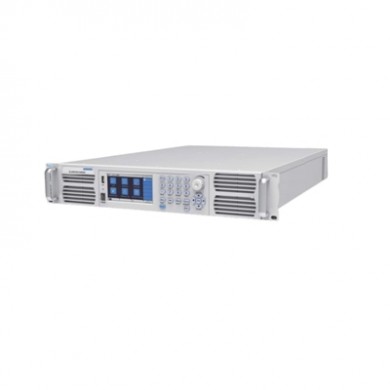

| 600W | 200V | 60A | UEL-200VDC600W | 2U | NO | |
| 600V | 40A | UEL-600VDC600W | NO | |||
| 1200W | 200V | 130A | UEL-200VDC1200W | NO | ||
| 600V | 90A | UEL-600VDC1200W | NO | |||
| 1200V | 45A | UEL-1200VDC1200W | NO | |||
| 1800W | 200V | 190A | UEL-200VDC1800W | NO | ||
| 600V | 130A | UEL-600VDC1800W | NO | |||

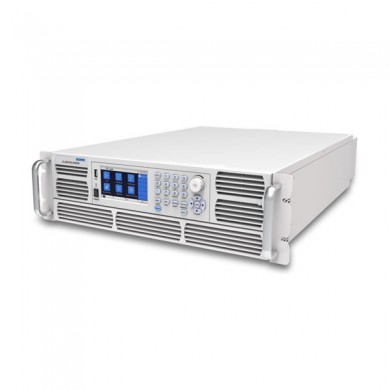

| 2400W | 200V | 260A | UEL-200VDC2400W | 3U | NO | |
| 600V | 180A | UEL-600VDC2400W | NO | |||
| 1200V | 90A | UEL-1200VDC2400W | NO | |||
| 3000W | 200V | 320A | UEL-200VDC3000W | NO | ||
| 600V | 220A | UEL-600VDC3000W | NO | |||
| 3400W | 200V | 370A | UEL-200VDC3400W | NO | ||
| 600V | 250A | UEL-600VDC3400W | NO | |||
| 1200V | 130A | UEL-1200VDC3400W | NO | |||
| 4400W | 200V | 480A | UEL-200VDC4400W | NO | ||
| 600V | 320A | UEL-600VDC4400W | NO | |||
| 1200V | 160A | UEL-1200VDC4400W | NO | |||
| 5600W | 200V | 610A | UEL-200VDC5600W | NO | ||
| 600V | 410A | UEL-600VDC5600W | NO | |||
| 1200V | 210A | UEL-1200VDC5600W | NO | |||

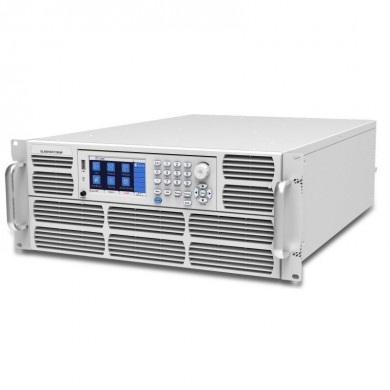

| 6600W | 200V | 720A | UEL-200VDC6600W | 4U | YES | |
| 600V | 480A | UEL-600VDC6600W | YES | |||
| 1200V | 240A | UEL-1200VDC6600W | YES | |||
| 8100W | 200V | 720A | UEL-200VDC8100W | YES | ||
| 600V | 600A | UEL-600VDC8100W | YES | |||
| 1200V | 300A | UEL-1200VDC8100W | YES | |||

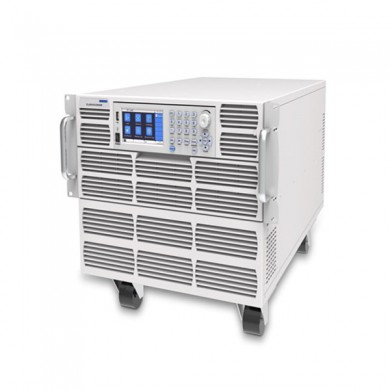

| 8800W | 200V | 960A | UEL-200VDC8800W | 7U | YES | |
| 600V | 640A | UEL-600VDC8800W | YES | |||
| 1200V | 320A | UEL-1200VDC8800W | YES | |||
| 10300W | 200V | 960A | UEL-200VDC10300W | YES | ||
| 600V | 760A | UEL-600VDC10300W | YES | |||
| 1200V | 380A | UEL-1200VDC10300W | YES | |||
| 11000W | 200V | 1200A | UEL-200VDC11000W | YES | ||
| 600V | 800A | UEL-600VDC11000W | YES | |||
| 1200V | 400A | UEL-1200VDC11000W | YES | |||
| 12500W | 200V | 1200A | UEL-200VDC12500W | YES | ||
| 600V | 920A | UEL-600VDC12500W | YES | |||
| 1200V | 460A | UEL-1200VDC12500W | YES | |||
| 13200W | 200V | 1440A | UEL-200VDC13200W | YES | ||
| 600V | 960A | UEL-600VDC13200W | YES | |||
| 1200V | 480A | UEL-1200VDC13200W | YES | |||
| 14700W | 200V | 1440A | UEL-200VDC14700W | YES | ||
| 600V | 1080A | UEL-600VDC14700W | YES | |||
| 1200V | 540A | UEL-1200VDC14700W | YES | |||

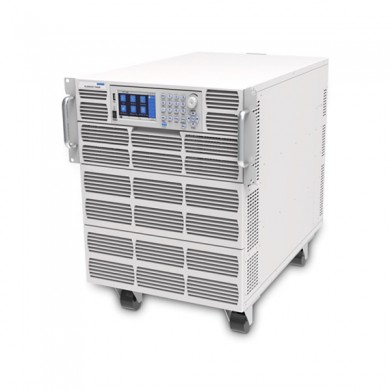

| 15400W | 200V | 1680A | UEL-200VDC15400W | 10U | YES | |
| 600V | 1120A | UEL-600VDC15400W | YES | |||
| 1200V | 560A | UEL-1200VDC15400W | YES | |||
| 16900W | 200V | 1680A | UEL-200VDC16900W | YES | ||
| 600V | 1240A | UEL-600VDC16900W | YES | |||
| 1200V | 620A | UEL-1200VDC16900W | YES | |||
| 17600W | 200V | 1920A | UEL-200VDC17600W | YES | ||
| 600V | 1280A | UEL-600VDC17600W | YES | |||
| 1200V | 640A | UEL-1200VDC17600W | YES | |||
| 19100W | 200V | 1920A | UEL-200VDC19100W | YES | ||
| 600V | 1400A | UEL-600VDC19100W | YES | |||
| 1200V | 700A | UEL-1200VDC19100W | YES | |||
| 19800W | 200V | 2160A | UEL-200VDC19800W | YES | ||
| 600V | 1440A | UEL-600VDC19800W | YES | |||
| 1200V | 720A | UEL-1200VDC19800W | YES | |||
| 21300W | 200V | 2160A | UEL-200VDC21600W | YES | ||
| 600V | 1560A | UEL-600VDC21600W | YES | |||
| 1200V | 780A | UEL-1200VDC21600W | YES | |||
| 22000W | 200V | 2400A | UEL-200VDC22000W | 13U | YES | |
| 600V | 1600A | UEL-600VDC22000W | YES | |||
| 1200V | 800A | UEL-1200VDC22000W | YES | |||
| 23500W | 200V | 2400A | UEL-200VDC23500W | YES | ||
| 600V | 1720A | UEL-600VDC23500W | YES | |||
| 1200V | 860A | UEL-1200VDC23500W | YES | |||
| 24200W | 200V | 2640A | UEL-200VDC24200W | YES | ||
| 600V | 1760A | UEL-600VDC24200W | YES | |||
| 1200V | 880A | UEL-1200VDC24200W | YES | |||
| 25700W | 200V | 2640A | UEL-200VDC25700W | YES | ||
| 600V | 1880A | UEL-600VDC25700W | YES | |||
| 1200V | 940A | UEL-1200VDC25700W | YES | |||
| 26400W | 200V | 2880A | UEL-200VDC26400W | YES | ||
| 600V | 1920A | UEL-600VDC26400W | YES | |||
| 1200V | 960A | UEL-1200VDC26400W | YES | |||
| 27900W | 200V | 2880A | UEL-200VDC27900W | YES | ||
| 600V | 2040A | UEL-600VDC27900W | YES | |||
| 1200V | 1020A | UEL-1200VDC27900W | YES | |||
