| 벤치탑 AC 파워미터 GPM-8310

> 제품소개 > 파워메터(전력분석기)벤치형 파워메터 GWINSTEK

제품명	벤치탑 AC 파워미터
모델명	GPM-8310
상세사양	•벤치탑 AC 파워미터, GPM-8213 •디스플레이 : 5인치 TFT LCD •입력 전압/전류 : 600Vrms/20Arms •입력 전력 : 75mW~12kW •입력 주파수 : DC/0.1Hz~100kHz •인터페이스 : RS-232/USB/LAN/GPIB, DA4(옵션)
인터페이스	•RS-232/USB/LAN/GPIB, DA4(옵션)
브랜드	GWINSTEK
판매가격	전화문의 : ☎070-4333-8982
배송비	주문시 결제

견적문의 위시리스트

전체목록 ◀◀ 뒤로가기

상품 기본설명

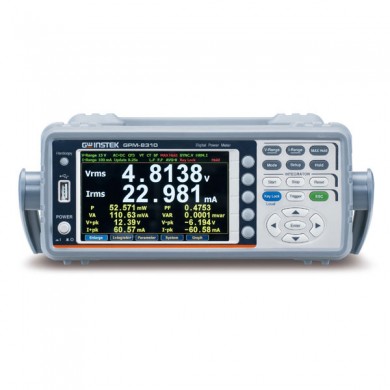

벤치탑 AC 파워미터 GPM-8310

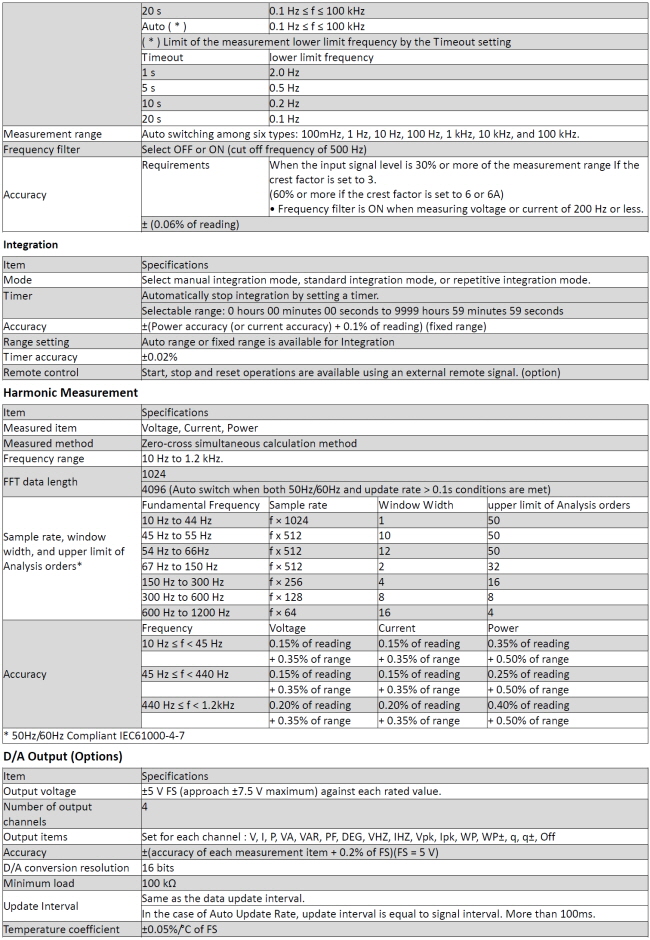

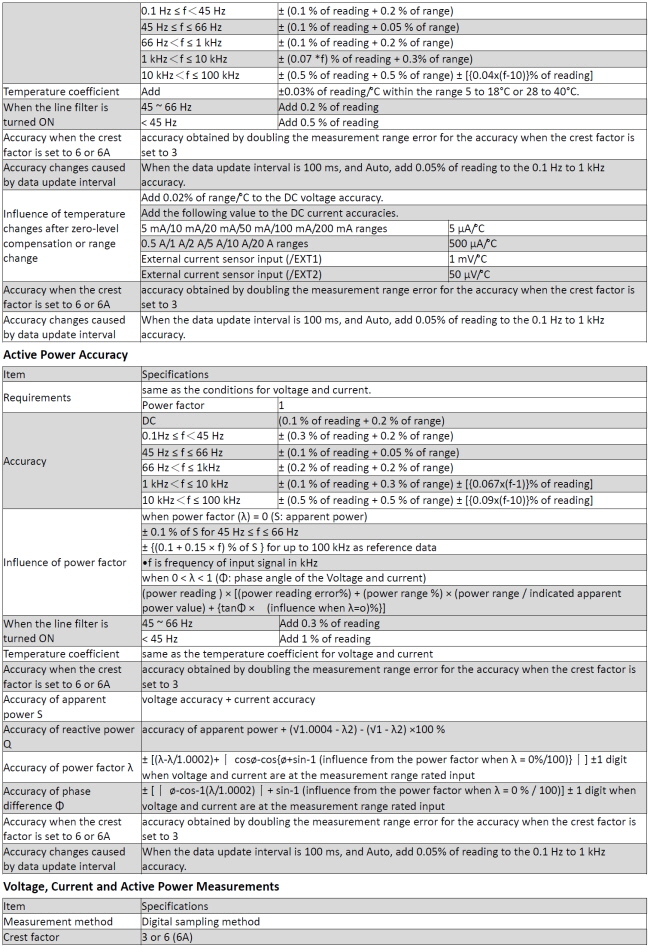

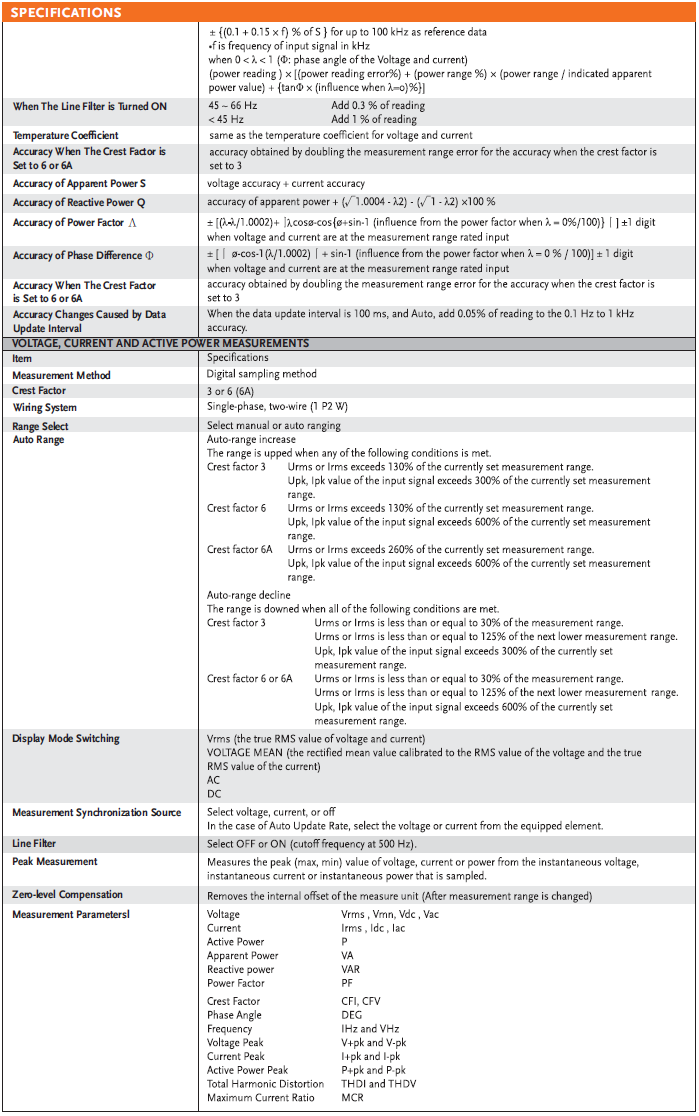

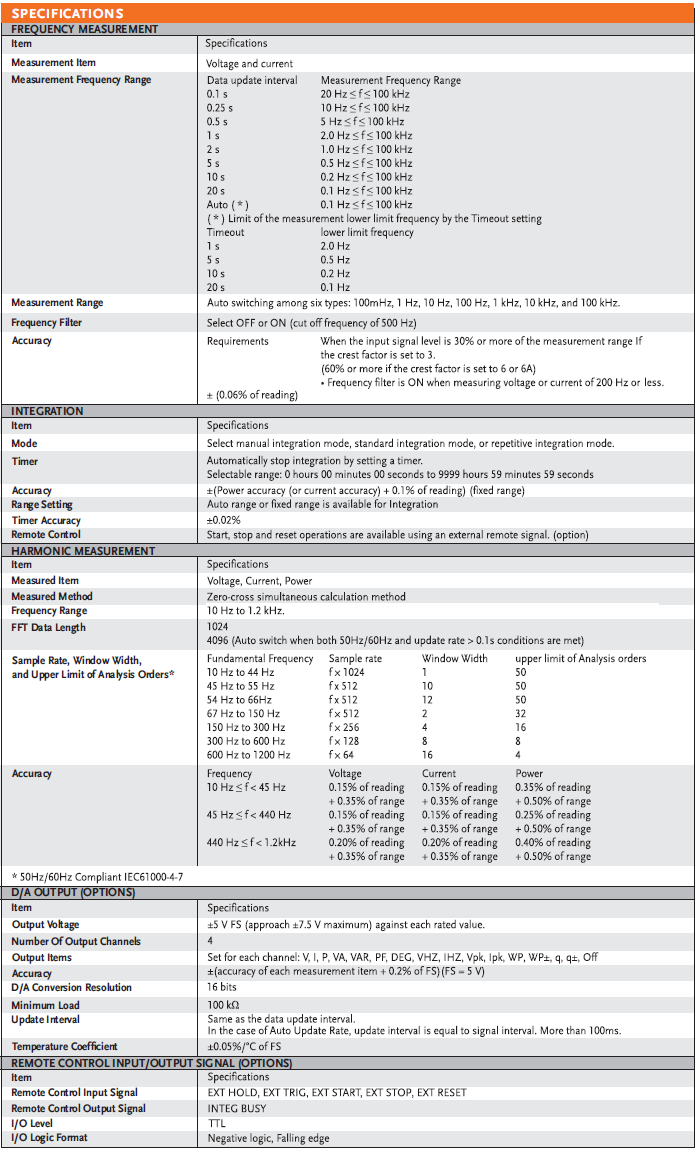

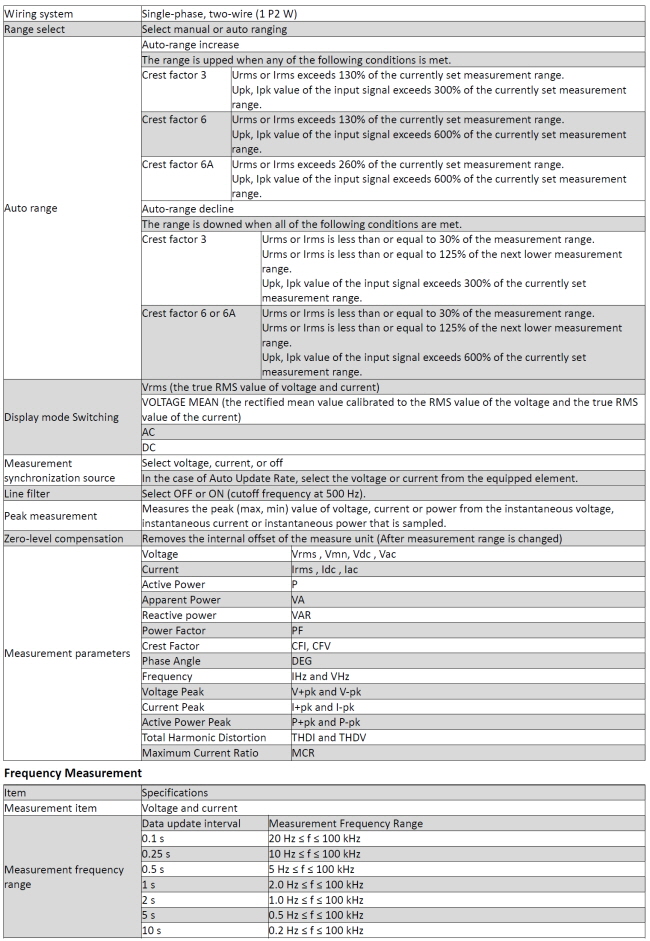

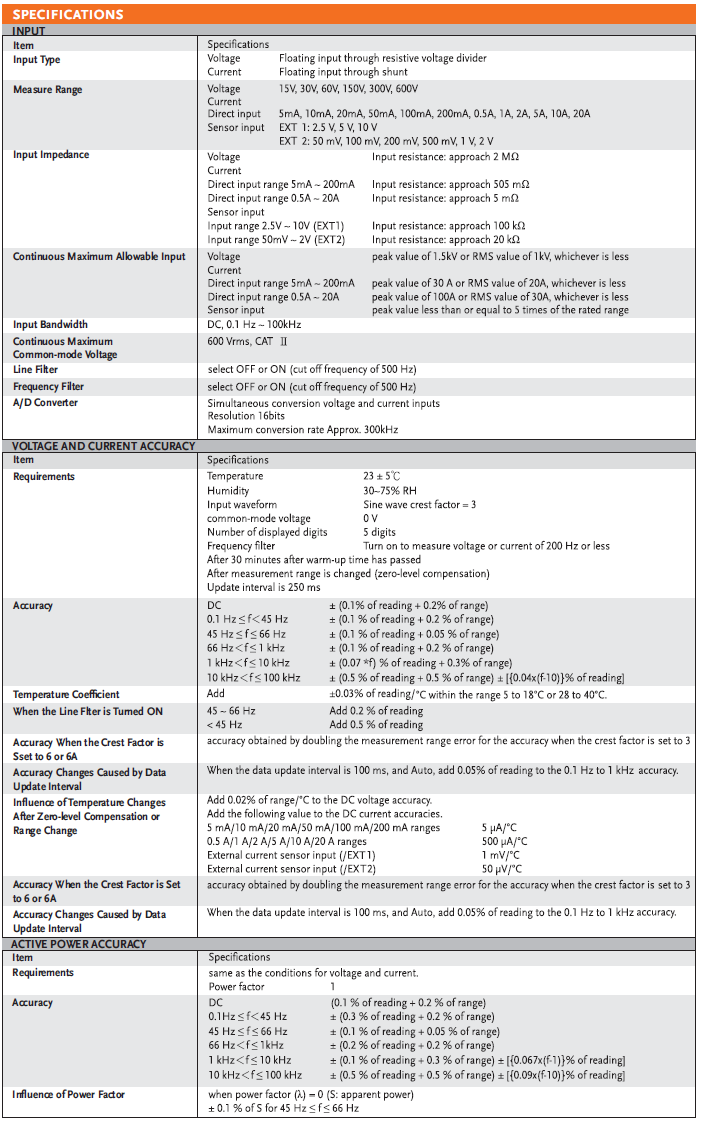

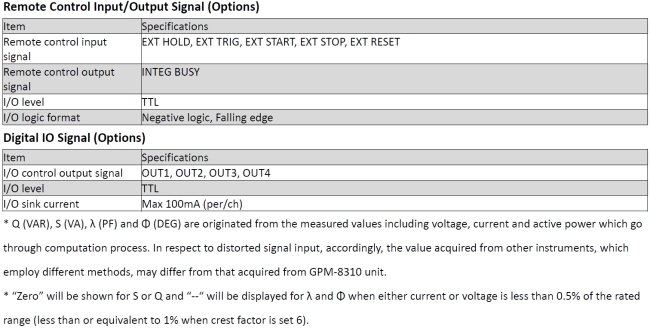

제품사양

주요 특징

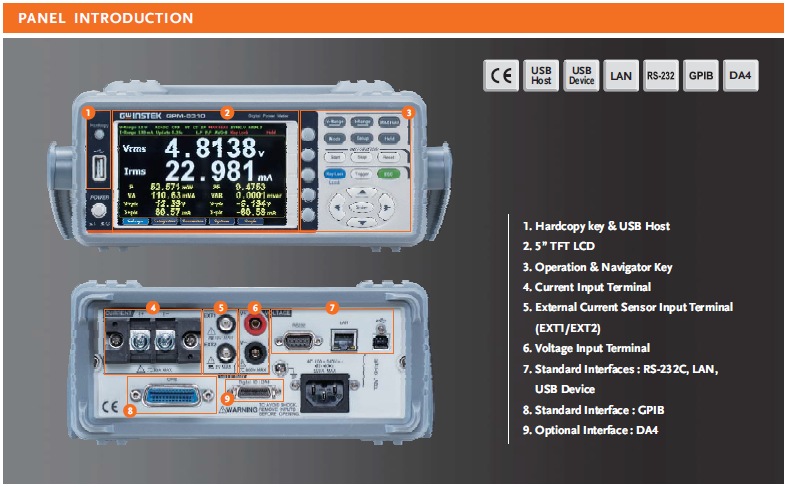

• 5” TFT LCD

• DC, 0.1Hz ~ 100kHz voltage/current test bandwidth

• 2 numerical display modes:
General mode: displays 2 main test items + 8 secondary test items;
Simple mode: displays the test values of 4 main test items

• Waveform display: V (voltage), I (current), P (power)

• V/I can be measured to a deformed wave with CF of 3, and the half-range CF can reach 6 or 6A

• 50th order of harmonic measurement and analysis (value and bar graph)

• Integration function supports automatic level-changing

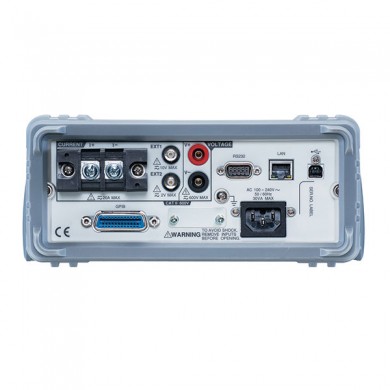

• External current sensor input terminals (EXT1/EXT2)

• Standard interfaces: RS-232C, USB device/ host, LAN, GPIB

• Optional interface: Digital I/O (DA4) (must be installed before leaving the factory)

• Optional accessory: GPM-001

GW Instek GPM-8310 is a digital power meter for single-phase (1P/2W) AC power measurement. Features include DC, 0.1Hz~100kHz test bandwidth, 16bits A/D, and 300 kHz sampling rate. It adopts 5” TFT LCD screen with a five-digit measurement display and provides 25 power measurement related parameters, and has a high-precision measurement capability. It also features the ability to display waveform (voltage/current/power), the integration measurement function, harmonic measurement and analysis of each order, external sensor input terminals, and various communication interfaces, etc., to help users achieve clear, convenient and accurate power measurements. This power meter is a most cost-effective power meter with most complete functionalities among the products of the same category.

기본 액세서리
Safety Instruction Sheet x 1, Power cord x 1, Test lead GTL-209 x 1, Test lead GTL-212 x 1, CD x 1 (including complete user manual and USB driver), DA4 cable GTL-214 (available for GPM-8310 with DA4 only)
옵션
옵션.01	GPIB 인터페이스 (공장 출하 설치)
옵션 액세서리
GPM-001	Test Fixture (with connection cable)
GTL-209	Test Lead, Banana to Bare-wire, Approx. 1000mm
GTL-210	Test Lead, Banana to Banana, Approx. 1000mm
GTL-212	Test Lead, O-Type to Bare-wire, Approx. 1000mm
GTL-213	Test Lead, O-Type to Banana, Approx. 1000mm
GTL-214	DA4 Cable, Approx. 1000mm
GTL-232	RS-232C cable, 9-pin Female to 9-pin, null modem for computer, Approx. 2000mm
GTL-246	USB Cable, A-B type, Approx. 1200mm
GTL-248	GPIB Cable, Approx. 2000mm
GRA-422	Rack Mount Kit, 19" 2U





라인업

문 정보
GPM-8310	Digital Power Meter with RS-232C/USB device & Host/LAN/GPIB	견적요청
GPM-8310 with DA4	Digital Power Meter with RS-232C/USB device & Host/LAN/GPIB + DA4	견적요청
옵션 액세서리
GPM-001	Test Fixture (with connection cable)	견적요청
GTL-209	Test Lead, Banana to Bare-wire, Approx. 1000mm	17,000
GTL-210	Test Lead, Banana to Banana, Approx. 1000mm	23,000
GTL-212	Test Lead, O-Type to Bare-wire, Approx. 1000mm	17,000
GTL-213	Test Lead, O-Type to Banana, Approx. 1000mm	23,000
GTL-214	DA4 Cable, Approx. 1000mm	94,000
GTL-232	RS-232C cable, 9-pin Female to 9-pin, null modem, Approx. 2000mm	11,000원
GTL-246	USB Cable, A-B type, Approx. 1200mm	14,000원
GTL-248	GPIB Cable, Approx. 2000mm	195,000원
GRA-422	Rack Mount Kit, 19" 2U	53,000원
