Programmable linear DC power in a quarter-rack package / XT series

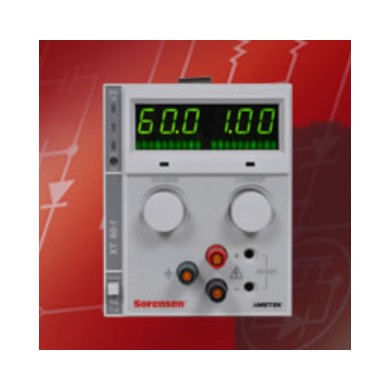

Sorensen XT Series
Product Overview
The Sorensen XT provides 60 watts of programmable linear DC power in a quarter-rack package. With seven models to choose from, XT is the smart choice for both benchtop and system applications where up to 60 watts of programmable, clean DC power is required. XT is also ideal for OEM applications where a wide adjustment of output voltage or current is required for up to 60 watts in a compact package.
The Sorensen XT is a preferred source for system development and test. It is available in singles, duals, triples and quads in a single package for benchtop use. For systems applications, multiple units can also be rack mounted in one to four unit configurations for up to four independent 60–watt outputs. XT can also be combined in a rack with the 300–watt HPD or 500–watt XPD.
Key Features
- Very low noise and ripple
- Excellent line⁄load regulation
- Fast transient response
- Constant voltage or constant current mode
- LabWindows® drivers
- CE approvals

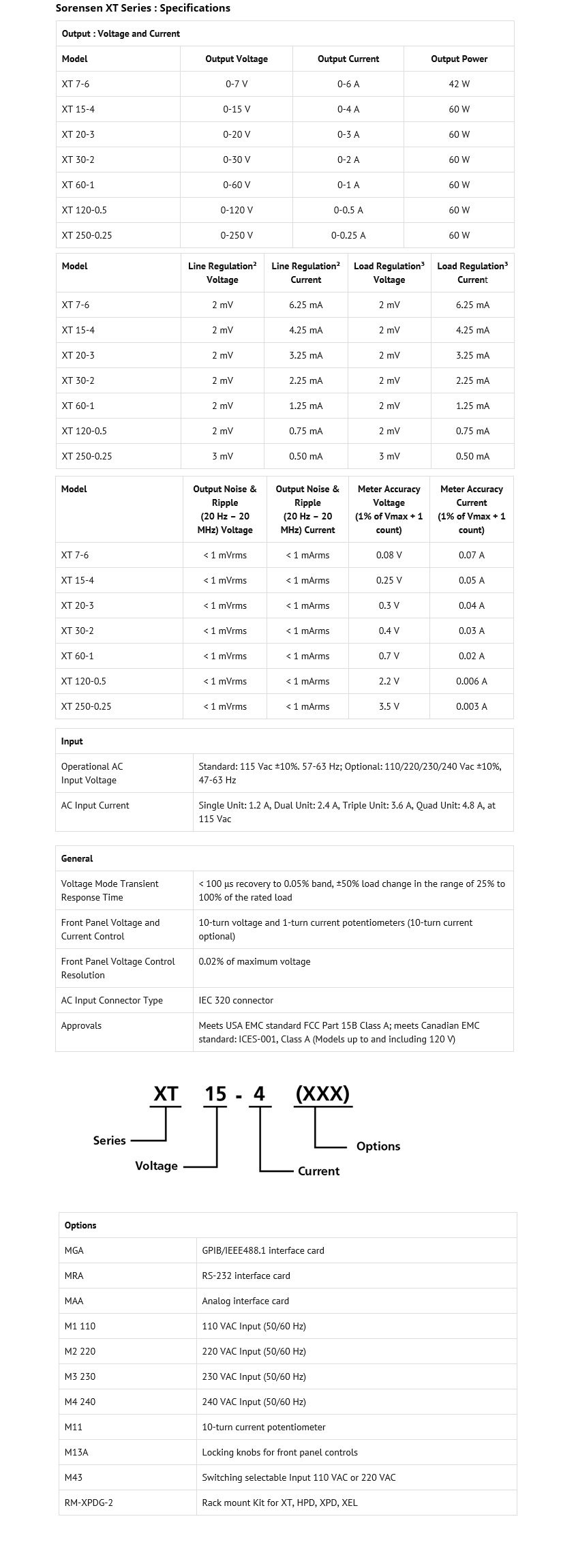

Specifications
