| High Power Modular DC Power Supplies (SG Series)



제품명 High Power Modular DC Power Supplies
모델명 Sorensen SG Series
특 징 •용량: 4 kW – 150 kW
상세사양

•출력 채널 : 1CH
•전압 : 10–1000V
•전류 : 5–6000 A

•SGI sereis / SGA sereis

인터페이스 •RS-232C (GPIB/LAN 옵션)
인증 •UL/CSA , CE
브랜드 AMETEK / USA
판매가격 전화문의 : ☎031-750-0440
배송비 주문시 결제

상품 기본설명

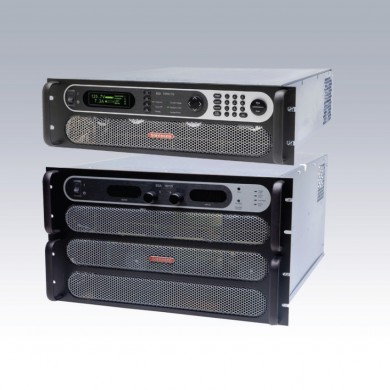

High Power Modular DC Power Supplies (SG Series)

제품사양

Programmable Precision High Power DC Power Supply



Sorensen SG Series Overview
The Sorensen SG Series (hereafter SG Series) represents the next generation of high power programmable DC power supplies. The SG Series is designed for exceptional load transient response, low noise and the highest power density in the industry. With a full 15 kW available down to 20VDC output in a 3U package the SG Series leads the industry in power density. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units.

At the heart of the SG series is a 5 kW power module. Depending on the output voltage, one to six modules can be configured in a single chassis to deliver 5 kW to 30 kW of power. Combinations of these chassis can then be easily paralleled to achieve power levels up to 150 kW. Paralleled units operate like one single supply providing total system current. Available in two control versions, the SGA has basic analog controls, while the SGI provides intelligent control features.


SGI: Advanced Intelligent Control

(Sorensen General purpose Intelligent) The SGI combines onboard intelligent controls with the outstanding power electronics common to all SG family supplies. These controls enable sophisticated sequencing, constant power mode and save/recall of instrument settings. Looping of sequences makes the SGI ideal for repetitive testing. An impressive vacuum fluorescent graphical display in eight languages, context sensitive “soft” keys and front panel keyboard simplify programming of the SGI.

SGA: Outstanding Value - Analog Control
(Sorensen General purpose Analog) The SGA, with its industry leading performance, is available for customers requiring simple front panel analog controls or external control. With the same high performance power electronics as the SGI, the SGA provides essential features like 10- turn potentiometers for setting voltage and current, 3 ½ digit LED readout plus front panel over-voltage protection (OVP) preview/adjustment and reset.



SGI / SGA Comparison Chart

Feature

SGA

SGI

Modular Design

Fast Load Transient

Parallelable

Analog & Digital Summing

Optional

Direct Front Panel V/1 Control

3½ Digit LED Readout


Graphics Display


Sequencing


Save / Recall Setups


System Power Readouts


Constant Power Mode


IEEE-488.2/RS-232C

Optional

RS-232C Std
IEEE-488.2 Optional

LXI Class C Ethernet/ RS-232

Optional

RS-232C Std, Ethernet Optional

Front Panel Dust Filter

Optional (3U unit only)

Optional (3U unit only)





Applications

Burn-In

Compliance Testing

Materials Research

Process Control

Product Validation

Automotive Electronics

Rackmount ATE Systems

Battery Charging

See the SFA product page for very high current slew rate and low stored energy applications.



Sorensen SG Series Specifications

Common

Remote Sense

Terminals are provided to sense output voltage at point of load. Maximum line drop 5% of rated voltage per line for 40-100V models, line drop 1V of rated voltage per line for 10-20V models, 1.5V for 30V models, 2% of rated voltage per line for models 160V and greater. (Greater line drop is allowed, but output regulation specifications no longer apply).

Parallel Operation

Up to 5 units may be paralleled for additional current within the power supply single-unit specifications, with exception of the DC output current set accuracy. Additional paralleled SG units will add 0.3% inaccuracy per unit. To parallel more than 5 units, contact factory.

Series Operation

Up to 2 units (see Output Float Voltage)



Input

Nominal Voltage
3 phase, 3 wire + ground

208/230 VAC (operating range 187 - 253 VAC)
380/400 VAC (operating range 342 - 440 VAC)
440/480 VAC (operating range 396 - 528 VAC)

Frequency

47 – 63Hz , 400Hz ( 400Hz @ 208VAC, for 6U units is optional modification and does not carry CE, UL or CSA markings )

Power Factor

>0.9 typical for 10V - 30V, 50V, 1000V and other models with optional “PF” modification.
>0.75 typical for 208/220 VAC input
(40V, 60V - 800V models, 0.9 available with modification “PF”)
> 0.72 typical for 380/480 VAC input
(40V, 60V - 800V models, 0.9 available with modification “PF”)
> 0.69 typical for 440/480 VAC input
(40V, 60V - 800V models, 0.9 available with modification “PF”)

Protection

½ cycle ride-though , typical, on all three phases, 3 cycle ride through on single phase; missing phase shutdown ( 800V model 6.4 msec on all 3 phases )



Programming & Read-back Specifications ( with sense wires used )



Programming

Read-Back / Monitoring



Accuracy

Resolution

Accuracy

Resolution

Front panel Display

SGA: +/- (0.5%fs + 1 digit) SGI (40-1000V) +/- 0.1% of voltage at full scale SGI (40-1000V) +/- 0.4% of current at full scale

SGA: 3.5 digits SGI: 4.0 digits

SGA: +/- (0.5%fs + 1 digit) SGI, Voltage: +/- 0.1% of full scale SGI, Current: +/- 0.4% of full scale

SGA: 3.5 digits SGI: 4.0 digits

Knob control & Display read-back

SGI (10-30V) 0.1% of set point +0.1% of voltage rating SGI (10-30V) 0.1% of set point +0.4% of current rating

SGI (10-30V) 0.1% of actual +0.15% voltage rating

Remote Analog Interface

Voltage +/-0.25% of full scale Current (40-1000V) 0.8% of full scale , (10-30V) 1.0% of full scale

N/A

(40-1000V) +/-1.0% of full scale

N/A

25-pin D-sub connector (0~5 V or 0~10 V)

(10-30V) +/-0.5% of full scale

Remote Digital Interface

Voltage: +/- 0.1% of full scale, Current: +/- 0.4% of full scale

+/-0.002% of full scale

Voltage: +/- 0.1% of full scale
Current: +/- 0.4% of full scale

+/-0.002% of full scale

RS-232C (Standard on SGI), Optional IEEE-488.2 and Optional LXI Compliant 10/100 base-T Ethernet (see Options)

OVP

+/- 1% of full scale

+/-0.002% of full scale





Programming range: 5-110% Configured from front panel, remote analog or via optional digital inputs

User I/O

Disconnect & Polarity-reversal relay control ( Only available with Ethernet Option )

Digital 10-pin Molex type connector Chart Below

Software

IVI & CVI drivers available under DOWNLOADS at: www.ProgrammablePower.com

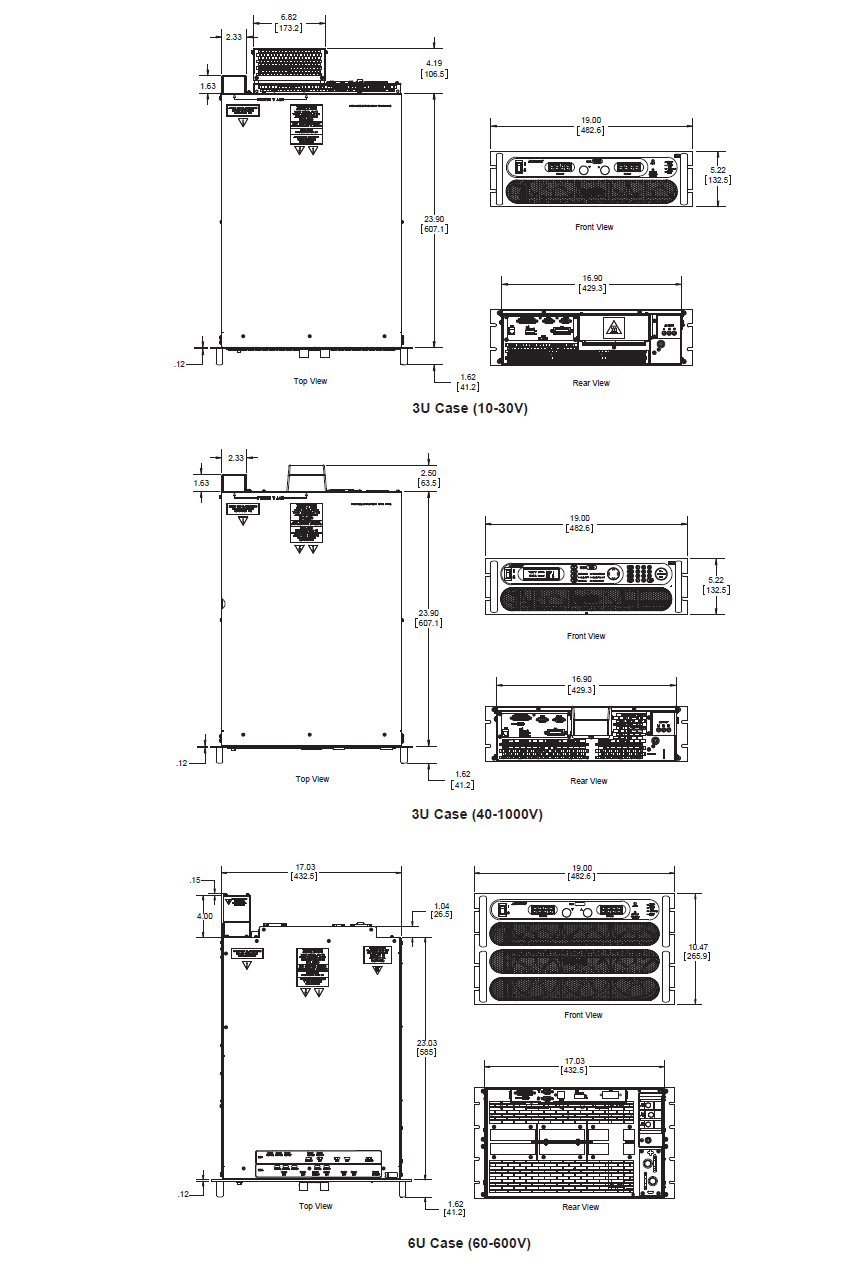

Physical



3U Models (10V-30V)

3U Models (40V-1000V)

6U Models (60V-600V)

Width

19.00 in (48.3 cm)

19.00 in (48.3 cm)

19.00 in (48.3 cm)

Depth

28.09 in (71.35 cm)

26.4 in (67.1 cm)

27.06 in (68.8 cm)

Height

5.25 in (13.3 cm)

5.25 in (13.3 cm)

10.5 in (26.7 cm)

Weight

(4kW, 10V 15V) <65 lbs (29 kg)
(5kW, 20V 30V)
<65 lbs (29 kg)
(8kW, 10V 15V)
<85 lbs (39 kg)
(10kW, 20V 30V)
<85 lbs (39 kg)
(12kW, 10V 15V)
<110 lbs (50 kg)
(15kW, 20V 30V)
<110 lbs (50 kg)

(5kW) 60 lbs (27 kg)
(10kW)
75 lbs (34 kg)
(15kW)
90 lbs (41 kg)

(20kW) 140 lbs (64 kg)
(25kW)
155 lbs (71 kg)
(30kW)
170 lbs (78 kg)

Shipping Weight

Contact factory for more product & shipping weights



Output

Ripple & Noise (Voltage Mode, Typical)

See Output: Voltage & Current Ranges Chart above. Ripple and noise specified at full load, nominal AC input. Noise measured with 6ft. cable, 1μf at load

Output Rise Time (40-800V)

< 100 ms 5-95% of full scale typical - resistive load (Contact factory for model specific slew rates)

Output Rise Time
(10-30V)

Rise Time, ms, MAX

Condition

10

Measured from 10% to 90% of the output voltage change - resistive load, typical

Output Voltage Fall Time
(10-30V)

Fall Time, MS MAX

Condition

No Load 1
50

100% CC Load 10

100% CR Load 10

Measured from 90% to 10% of the output voltage change. - resistive load, typical

Output Current Rise Time
(10-30V)

Rise Time, ms, MAX

Condition

20

Measured from 10% to 90% of the output current change - resistive load, typical

Output Current Fall Time
(10-30V)

Rise Time, ms, MAX

Condition

10

Measured from 90% to 10% of the output current change - resistive load, typical

Line Regulation (with sense wires used)

(±10% of nominal AC input, constant load)
Voltage Mode: +/- 0.01% of full scale (40-800V)
Current Mode: +/- 0.05% of full scale (40-800V)
Voltage Mode and Current Mode: +/- 0.05% of full scale (10-30V)

Load Regulation (with sense wires used)

(no load to full load, nominal AC input)
Voltage Mode: +/- 0.02% of full scale (40-800V)
Current Mode: +/- 0.1% of full scale
Voltage Mode: +/- 0.05% of full scale (10-30V)

Load Transient Response

Recovers within 1ms to +/-0.75% of full-scale of steadystate output for a 50% to 100% or 100% to 50% load change

Efficiency

87% typical at nominal line and max load

Stability

±0.05% of set point after 30 minute warm-up and over 8 hours at fixed line, load and temperature, typical

Temperature Coefficient

0.02%/ C of maximum output voltage rating for voltage set point, typical
0.03%/ C of maximum output current rating for current set point, typical

Output Float Voltage

Negative terminal within +/- 300 V of chassis potential.
(We recommend the use of optional isolated analog Interface (IAI).) Supplies in "series" should be the same output voltage/current, in not system current is limited to lower of the two supplies.



Environmental

Operating Temperature

0 to 50º C

Storage Temperature

-25º C to 65º C

Humidity Range

Relative humidity up to 95% non-condensing, 0º C – 50º C

Altitude

Operating full power available up to 5,000 ft. (~1,500 m), derate 10% of full power for every 1,000 feet higher; non-operating to 40,000 ft. (~12,000 m)

Cooling

Front and side air inlet, rear exhaust. Temperature controlled, variable speed fans. Units may be stacked without spacing.

Regulatory

Certified to UL/CSA 61010 and IEC/EN 61010-1 by a NRTL, CE Compliant, Semi-F47 Compliant.
LVD Categories: Installation Category II: Pollution Degree 2; Class II Equipment: for Indoor Use Only, back panel not user accessible
(see user manual for installation instructions)
EMC Directive, EN 61326:1998

Front Panel Dust Filter

30 PPI (Pores Per Inch) - must ensure adequate airflow and / or derate max. temperature.
3U unit only.



Output: Voltage and Current Ranges

3U

6U

Ripple & Noise

Power

4/5 kW

8/10 kW

12/15 kW

16/20 kW

20/25 kW

24/30 kW

rms

(20Hz-00kHz)

p-p

(20Hz-20MHz)

Voltage

Current

Current

10

400

800

1200

1600*

2000*

2400*

20mV

50mV

15

267

534

801

1068*

1335*

1602*

20mV

50mV

20

250

500

750

1000*

1250*

1500*

20mV

60mV

30

167

334

501

668*

835*

1002*

20mV

60mV

40

125

250

375

500*

625*

750*

20mV

75mV

50

100

200

300

400*

500*

600*

20mV

75mV

60

83

167

250

333

417

500

20mV

75mV

80

63

125

188

250

313

375

20mV

100mV

100

50

100

150

200

250

300

20mV

100mV

160

31

63

94

125

156

188

25mV

150mV

200

25

50

75

100

125

150

25mV

175mV

250

20

40

60

80

100

120

30mV

200mV

300

17

33

50

67

83

100

30mV

200mV

330

15

30

45

61

76

91

30mV

200mV

400

12

25

38

50

63

75

30mV

300mV

500

10

20

30

40

50

60

50mV

350mV

600

8

17

25

33

42

50

60mV

350mV

800

6.2

12.5

18.7

25*

31.2*

37.5*

80mV

500mV

1000

5

10

15

20*

25*

30*

100 mV

650 mV

* By way of paralleling 5kW, 10kW & 15kW supplies



Analog User I/O Pinouts

1

Isolated Remote ON/OFF

14

Isolated TTL/CMOS ON/OFF Control

2

Isolated Circuit Return

15

Remote Voltage Programming

3

Remote Overvoltage Set

16

Remote Current Programming

4

Voltage Return for Pins 9, 15, or 21

17

Fault State

5

Remote ON/OFF

18

Shutdown Fault

6

Circuit Common

19

Output Voltage Monitor

7

Output Current Monitor

20

Voltage Return for Pins 9, 15, or 21

8

Local Voltage Control Monitor

21

Voltage Control Resistance

9

Remote Voltage Programming

22

Current Control Resistance

10

Remote Current Programming

23

Current Return for Pins 10, 16, or 22

11

Local Current Control Monitor

24

Circuit Common

12

Not Used

25

Current Return for Pins 10, 16, or 22

13

Not Used





Digital User I/O Pinouts ( Ethernet Option Only )

1

Fold Back Monitor

2

Direct Shutdown

3

Fault Indication

4

Trigger Out

5

Common

6

Polarity output reversal signal

7

Isolation relays relay open signal

8

Sense relays open signal

9

Common

10

Trigger in

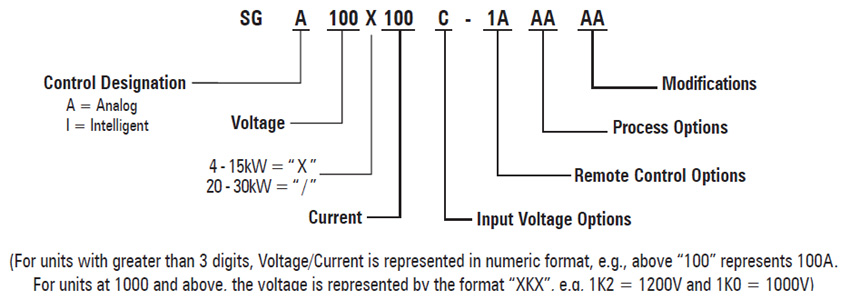

옵션 및 악세서리




Control Options


A: Analog

I: Intelligent


Input Options


C: Input Voltage 187 / 242VAC, 3 Phase

D: Input Voltage 342 / 440VAC, 3 Phase

E: Input Voltage 396 / 528VAC, 3 Phase


Remote Control Options


0A: No Option

1A: IEEE-488.2 + RS-232C (Note: SGI comes standard with RS-232C)

1C: Ethernet + RS-232C

1D: Isolated Analog Control

1E: Shaft Locks (SGA series only)

2A: Combined Options 1A+1D

2C: Combined Options 1A+1E (SGA Only)

2G: Combined Options 1C+1D

2H: Combined Options 1C+1E (SGA Only)

2J: Combined Options 1D+1E (SGA Only)

3C: Combined Options 1A+1D+1E (SGA Only)

3G: Combined Options 1C+1D+1E (SGA Only)


Process Options


AA: No option

AB: Certificate of Calibration to ANSI / NCSL Z540-1 (includes Test Data)


Modifications


AJ: Front panel dust filter - factory installed - 3U unit only

CV: 400Hz AC input @ 208 VAC ( does not carry CE, CSA or UL marks ) ( 6U only ) STD on 3U

PF: Passive power factor correction to 0.9 (Only applicable to 40V, 60V to 800V. Included in 10V-30V, 50V and 1000V.)


Accessories


890-453-03: Paralleling Cable (for up to 5 units, requires one cable per unit placed in parallel)

K550212-01: 3U Rack Slides (for 5kW, 10kW and 15kW models)

K550213-01: 6U Rack Slides (for 20kW, 25kW and 30kW models)

K550532-01: Front panel dust filter - field installation kit - 3U unit only

5551082-01: Optional AC input cover kit - 3U unit only





라인업







*** 본 (주)파워티엠 홈페이지의 게시물 및 제품 자료를 사전 동의없이 무단으로 복사 및 배포를 금지합니다. ***


이 분류에 등록된 다른 상품이 없습니다. 전체목록 ▲ 맨위로 ◀◀ 뒤로가기

배송정보

★ 배송정보 ★
1. 재고 보유상품의 경우 입금확인 후 1~3일 정도 상품 준비기간이 소요되며, 주문량이 많을 경우
    준비기간이 조금 더 소요될 수 있습니다.
    (단, 재고 소진 상품의 경우 배송기간이 3주~4주 소요될수 있사오니 참고바랍니다.)
2. 주문하신 상품은 배송완료 문자를 받아보신 후 1~2일 이내에 수령하실 수 있습니다.
3. 10만원 이상 구매시 배송료는 무료입니다.
※ 해외배송은 무료배송이벤트에서 제외됩니다.해외배송 상품무게는 별도 측정 후
    주문상품 구매액 + 운임료와 함께 결제해주셔야 합니다.



관련상품

★ 관련상품 ★

등록된 상품이 없습니다.







회사소개



전력전자제품



계측기기제품



제어계측시스템



자료실



고객지원

인사말

회사소개

회사연혁

오시는길

DC파워서플라이

SMPS/ LED컨버터

양방향파워/회생형파워

전자로드(전자부하기)

AC파워소스

AC/DC 저항로드뱅크

단종제품(전력기기)

디지털멀티메터

오실로스코프

스펙트럼분석기

클램프메터(전류계)

파워메터(전력분석기)

제네레이터/파형발생기

저항계 / LCR메터

내전압 절연저항시험기

데이터로거/레코더

열화상카메라

기타 계측기

단종제품(계측기기)





충방전시스템

신뢰성시험기

자동차부품시험

발전기 시험기

소프트웨어

매뉴얼 자료실

프로그램 자료실

카타로그 자료실

사양서 자료실

기술 자료실

공지사항

이벤트게시판

1:1문의

온라인 A/S요청

교정접수안내

교정신청서



견적요청

온라인 견적요청

업체명: (주)파워티엠 | 대표자: 차효정 | 주소: 경기도 성남시 중원구 갈마치로 302, B동 602호(상대원동,우림라이온스밸리5차)
전화(Tel): 031-750-0440 | 팩스(Fax): 031-750-0442 | e메일: powertm@powertm.co.kr
사업자등록번호: 215-87-96171 | 통신판매업신고: 제2016-성남중원-0113호
Copyright © (주)파워티엠. All Rights Reserved.
