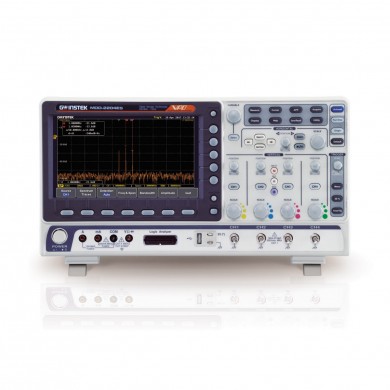

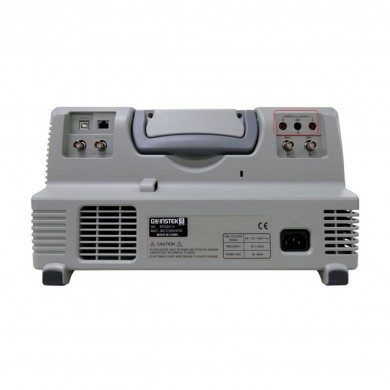

| 혼합신호 오실로스코프 (MDO-2000E)



제품명 혼합신호 오실로스코프
모델명 MDO-2000E
특 징 •대역폭: 200MHz/ 100MHz/ 70MHz
상세사양

•혼합신호 오실로스코프, MDO-2000E

•대역폭 : 200MHz/100MHz/70MHz

•채널 : 2CH/4CH

•샘플링 속도 : 최대 1GSa/s

•레코드 길이 : 최대 10Mpts

•디스플레이 : 8인치 TFT LCD (WVGA 800 x 480)

인터페이스 •USB/LAN
브랜드 GWINSTEK / Taiwan
판매가격 전화문의 : ☎031-750-0440
배송비 무료배송

상품 기본설명

혼합신호 오실로스코프 (MDO-2000E)

제품사양

주요 특징

• 200/100/70MHz bandwidth selections ; 2 or 4 channels

• Real time sample rate for each channel is 1GSa/s (2 channel models)

• Maximum real time sample rate is 1GSa/s (4 channel models)

• Per Channel 10M memory depth and VPO waveform display technology

• Waveform update rate up to 120,000 wfms/s

• 8 “ WVGA TFT LCD display

• Maximum 1M FFT provides higher frequency domain resolution measurements

• High ,low and band pass filter functions

• 29,000 segmented memories and waveform search functions

• I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function

• Data log function is able to track signal changes up to 1000 hours

• Network storage function

• Mask test function

• MDO-2000EG equips with a spectrum analyzer and a dual channel 25MHz AWG MDO-2000EX equips with a spectrum analyzer ; a dual channel 25MHz AWG; DMM and power supply



One Oscilloscope ,Two Domains

MDO-2000E series is multi-functional mixed domain oscilloscope. The series includes two feature combinations : MDO-2000EG and MDO-2000EX. MDO-2000EG models have a built-in spectrum analyzer and a dual channel 25MHz arbitrary waveform generator and MDO-2000EX models feature a built-in a spectrum analyzer, arbitrary waveform generator, a 5,000 count DMM, and a 5V/1A power supply. The first of its kind, MDO-2000EX is the only oscilloscope to equip with aDMM and a power supply in the T&M industry.

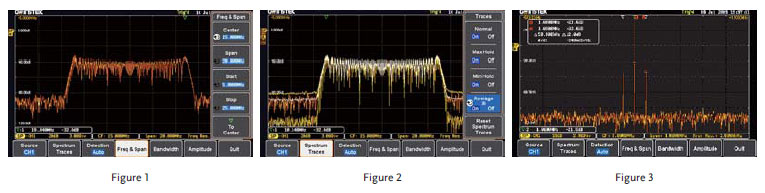

While entering the spectrum mode, MDO-2000E series will display a full screen of frequency domain. Users can input Center frequency, Span, Start frequency, and Stop frequency based upon test requirements so as to rapidly and intuitively observe required frequency range that allows users to experience the user interface of a real spectrum analyzer. While observing frequency domain display, engineers can observe waveform characteristics, which are not easilyto be seen from time domain waveforms, for instance, the harmonic composition of a waveform and the frequency characteristics of a modulation signal. Compared with oscilloscope' FFT, MDO-2000E series allows engineers to effectively conduct signal measurements on frequency domain.



Conventional DSO's FFT always calculates the entire signal bandwidth up to half the sampling rate (Fs). However, the insufficient calculation capability can't conduct FFT calculation with more points. Users can't have the signal's detailed frequency information due to the insufficient frequency resolution from the calculation result. Whereas MDO-2000E series analyzes signal spectrum of interest. Compared with oscilloscope' FFT, MDO-2000E series allowsengineers to effectively conduct signal measurements on frequency domain. Right illustration shown the conventional DSO's FFT (above figure) VS. MDO-2000E's Spectrum analyzer (below figure).






MDO-2000E series frequency domain also includes Spectrum Trace Type settings (Normal, Max-hold, Min-hold, and Average)(Figure 1). Users can freely select various Spectrum Traces for simultaneous display. Detection method (Sample, +Peak, -Peak, and Average)(Figure 2) can be individually set for each Trace. Additionally, users, via Cursor, can manually mark the corresponding positions to reflect Frequency and Amplitude. The Search function can also be appliedto log spectrum's Peak Table. Amplitude is displayed with dB and Marker can obtain measurement data. Users can use the Search function to search and mark the amplitude and frequency of spectrum signal. Search methods include Max. peak and threshold. Measurement results can be displayed and saved.(Figure 3)













Compared with the general spectrum analyzer, the spectrum function of MDO-2000E series can test below~9kHz signals, which is applicable to the frequency domain analysis of audio frequency and vibration. MDO-2000E series can also test the frequency domain signal with DC component without damaging the instrument. With respect to frequency domain waveform display, MDO-2000E series, featuring the same capability of a real-time spectrum analyzer, is fasterthan the general spectrum analyzer. Why? It is because MDO-2000E series utilizes digital circuit and software to calculate FFT. The general spectrum analyzer can only process the signal of a narrow frequency bandwidth at a time by frequency sweeping. Each sweeping will take several ms to dozens of ms. Hundreds and thousands of frequency sweepings are gathered to form a spectrum. Therefore, the displayed spectrum is not obtained at the same time. MDO-2000E series obtains spectrum display at the same time by utilizingdigital circuit and software to calculate FFT that is faster than the frequency sweeping method. The FFT settings of oscilloscopes are based upon horizontal scale (sample rate) setting, which is totally different from the frequency range setting of MDO-2000E series. Most instruments will have insufficient frequency resolution due to insufficient FFT points while conducting spectrum measurement by FFT. Compared with the FFT of oscilloscopes, MDO-2000E series satisfies users with signal measurement requirementsunder 9kHz; a better setting interface, measurement resolution and measurements speed.



Specifications

MDO-2072EG(X)

MDO-2074EG(X)

MDO-2102EG(X)

MDO-2104EG(X)

MDO-2202EG(X)

MDO-2204EG(X)

Channels

2ch+Ext

4ch

2ch+Ext

4ch

2ch+Ext

4ch

Bandwidth

DC~70MHz

DC~70MHz

DC~100MHz

DC~100MHz

DC~200MHz

DC~200MHz

(-3dB)

(-3dB)

(-3dB)

(-3dB)

(-3dB)

(-3dB)

Rise time

5ns

5ns

3.5ns

3.5ns

1.75ns

1.75ns

BandwidthLimit

20MHz

20MHz

20MHz

20MHz

20M/100MHz

20M/100MHz

Vertical Sensitivity

Resolution

8 bit

1mV~10V/div

Input Coupling

AC, DC, GND

Input Impedance

1MΩ// 16pF  approx.

DC Gain Accuracy

±(3%)when 2mV/div or greater is selected

±(5%)when 1mV/div is selected;

Polarity

Normal & Invert

Maximum Input Voltage

300Vrms, CAT I

Offset Position Range

1mV/div ~ 20mV/div : ±0.5V

50mV/div ~ 200mV/div : ±5V

500mV/div ~ 2V/div : ±25V

5V~10V/div : ±250V

Waveform Signal Process

 +, -, ×, ÷, FFT, User Defined Expression.

FFT:1Mpts

FFT:Spectral magnitude. Set FFTVertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular,Hamming, Hanning, or Blackman.

Trigger

Source

CH1 ,CH2, CH3, CH4, Line, EXT*

*dual channel models only

Trigger Mode

Auto (supports Roll Mode for 100 ms/div andslower), Normal, Single Sequence

Trigger Type

Edge, Pulse Width(Glitch), Video, Pulse Runt,Rise & Fall(Slope), Alternate,tme out, Event-Delay(1~65535 events),Time-Delay(Duration,4nS~10S), Bus

Holdoff range

4ns~10s

Coupling

AC,DC,LF rej. ,HF rej. ,Noise rej.

Sensitivity

1div

External Trigger

Range

±15V

Sensitivity

DC ~ 100MHz Approx. 100mV

100MHz ~ 200MHz Approx. 150mV

Input Impedance

1MΩ±3%~16pF

Horizontal

Time base Range

1ns/div ~ 100s/div (1-2-5 increments)

ROLL: 100ms/div ~ 100s/div

Pre-trigger

10 div maximum

Post-trigger

2,000,000 div maximum.

Time base Accuracy

±50 ppm over any ≥ 1 ms time interval

Real Time Sample Rate

Max.:1GSa/s (4chmodel)

Per channel 1GSa/s (2chmodel)

Record Length

Per Channel 10M pts

Acquisition Mode

Normal, Average, Peak Detect, Single

Peak Detection

2ns (typical)

Average

selectable from 2 to 256

X-Y Mode

X-Axis Input

Channel 1; Channel 3*

*four channel models only

Y-Axis Input

Channel 2; Channel 4*

*four channel models only

Phase Shift

±3° at 100kHz

Cursors and Measurement

Cursors

Amplitude, Time, Gatingavailable;Unit:Seconds(s),Hz(1/s) ,Phase(degree) ,Ration(%)

Automatic Measurement

38 sets: Pk-Pk, Max, Min, Amplitude, High, Low,Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot,RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, -Width,Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, %Flicker ,Flicker Idx,FRR, FRF,FFR, FFF, LRR, LRF, LFR, LFF, Phase

Control Panel Function

Auto counter

6 digits, range from 2Hz minimum to the ratedbandwidth

Autoset

Single-button, automatic setup of all channelsfor vertical, horizontal and trigger systems, with undo Autoset

Save Setup

20 sets

Save Waveform

24 sets

Display

TFT LCD Type

8" TFT LCD WVGA color display

Display Resolution

800 horizontal × 480 vertical pixels (WVGA)

Interpolation

Sin(x)/x

Waveform Display

Dots, vectors, variable persistence (16ms~4s),infinite persistence

Waveform Update Rate

120,000 waveforms per second, maximum

Display Graticule

8 x 10 divisions

Display mode

YT ;XY

Interface

USB Port

USB 2.0 High-speed host port X1, USB 2.0High-speed device port X1

Ethernet(LAN) Port

RJ-45 connector, 10/100Mbps with HP Auto-MDIX

Go-NoGo BNC

5V Max/10mA TTL open collector output

Kensington Style Lock

Rear-panel security slot connects to standardKensington-style lock.

Spectrum Analyzer Specifications

Frequency range

DC~500MHz (Max. ,Max.bandwidth~500MHzuncalibrated)

Span

1kHz~500MHz(Max.)

Resolution bandwidth

1Hz ~ 500kHz(Max.)

Reference level

 -50 dBm to +40dBm in steps of 5dBm

Vertical units

dBV RMS; Linear RMS; dBm

Vertical position

 -12divs to +12divs

Vertical scale

1dB/div to 20dB/div in a 1-2-5 Sequence

Display average noise level

1V/div < -50dBm, Avg : 16

100mV/div  < -70dBm, Avg: 16

10mV/div  < -90dBm, Avg :16

Spurious response

2nd harmonic distortion< 40dBc

3rd harmonic distortion< 45dBc

Frequency domain trace types

Normal ; Max Hold ; Min Hold ; Average (2 ~256)

Detection methods

Sample ; +Peak ; -Peak ; Average

FFT Windows

FFT Factor :

Hanning 1.44

Rectangular 0.89

Hamming 1.30

Blackman 1.68

AWG  Specifications

Channels

2

Sample Rate

200 Msa/s

Vertical Resolution

14 bits

Max. Frequency

25 MHz

Waveforms

Sine, Square, Pulse, Ramp, DC, Noise, Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine,Cardiac

Output Range

20 mVpp to 5 Vpp, HighZ;10 mVpp to 2.5 Vpp, 50Ω

Output Resolution

1mV

Output Accuracy

2% (1 kHz)

Offset Range

±2.5 V, HighZ;±1.25 V, 50 Ω

Offset Resolution

1mV

Sine

Frequency Range

100mHz to 25MHz

Flatness

±0.5 dB( relative to 1kHz)

Harmonic Distortion

-40 dBc

Stray (Non-harmonic)

-40 dBc

Total Harmonic Distortion

1%

S/N Ratio

40 dB

Square/Pulse

Frequency Range

100 mHz to 15MHz

Rise/Fall time

<15ns

Overshoot

<3%

Duty cycle

Square:50%;Pulse:0.4%~99.6%

Min. Pulse Width

30 ns

Jitter

500 ps

Ramp

Frequency Range

100mHz~1MHz

Linearity

1%

Symmetry

0 to 100%

DMM Specifications (MDO-2000EX only)

5,000 counts

DIGITLEVEL

CAT II 600Vrms, CAT III 300Vrms

DC VOLTAGE

50mV, 500mV, 5V, 50V, 500V,  1000V  6ranges

Accuracy

50mV, 500mV, 5V, 50V, 500V, 1000V ±(0.1%reading + 5 digits)

Input Impedance

10MΩ

DC CURRENT

50mA, 500mA,  10A   3ranges

Accuracy

50mA - 500mA  ±(0.5% reading + 0.05mA)

10A  ±(0.5% reading + 50mA)

AC VOLTAGE

 50mV, 500mV, 5V, 50V, 700V  5ranges

Accuracy

50mV, 500mV, 5V, 50V, 700V ±(1.5%  reading+ 15 digits) at 50Hz-1kHz

* Amplitude greater than 0.2% ofthe full scale reading.

AC CURRENT

50mA, 500mA, 10A 3ranges

Accuracy

50mA, 500mA, ±(1.5% reading + 0.05mA)  at50Hz-1kHz

10A ±(3% reading + 50mA)  at50Hz-1kHz

* Measure range: >10mA

RESISTANCE

500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 5ranges

Accuracy

500Ω, 5kΩ, 50kΩ, 500kΩ ±(0.3%  reading + 3digits)

5MΩ ±(0.5%  reading + 5digits)

Power supply Specifications (MDO-2000EX only)

Output Channel

CH1 & CH2

Output voltage range

1.0V~5.0V

Output Current (Max.)

1A

Voltage Step

0.1V Continuously Adjustable

output Voltage Accuracy

±3%

Ripple and Noise

50mVrms

Miscellaneous

Multi-language menu

Available

operation environment

Temperature: 0°C to 50°C. Relative Humidity ≤80% at 40°C or below; ≤ 45% at 41°C ~ 50°C.

On-line help

Available

Time clock

Time and Date ,Provide the Date/Time for saveddata

Dimensions

384mmX208mmX127.3mm

Weight

3kg

Pleasedo not hesitate to contact us if you have any queries on the MDO-2000E seriesannouncement.



옵션 및 악세서리


기본 액세서리

Power Cord, Certificate of Calibration, CD-ROM (with Quick Start Guide, User Manual, Programming Manual), Passive probe (one probe per channel)

GTL-110

BNC-BNC cable*2

GTL-105A

Alligator Clip test lead (only on MDO-2000EX)

GTL-207

Banana plug test lead (only on MDO-2000EX)


라인업



주문 정보

MDO-2204EG

200MHz,4-channel, Digital Storage Oscilloscope,

Spectrum analyzer ,dual channel25MHz AWG

견적요청

MDO-2104EG

100MHz, 4-channel, Digital Storage Oscilloscope,

Spectrum analyzer ,dual channel25MHz AWG

견적요청

MDO-2074EG

70MHz, 4-channel, Digital Storage Oscilloscope,

Spectrum analyzer ,dual channel25MHz AWG

견적요청

MDO-2204EX

200MHz, 4-channel, Digital Storage Oscilloscope,

Spectrum analyzer ,dual channel25MHz AWG ,5,000 counts DMM and power supply

견적요청

MDO-2104EX

100MHz, 4-channel, Digital Storage Oscilloscope,

Spectrum analyzer ,dual channel25MHz AWG ,5,000 counts DMM and power supply

견적요청

MDO-2074EX

70MHz, 4-channel, Digital Storage Oscilloscope,

Spectrum analyzer ,dual channel25MHz AWG ,5,000 counts DMM and power supply

견적요청

MDO-2202EG

200MHz,2-channel, Digital Storage Oscilloscope,

Spectrum analyzer ,dual channel25MHz AWG

견적요청

MDO-2102EG

100MHz, 2-channel, Digital Storage Oscilloscope,

Spectrum analyzer ,dual channel25MHz AWG

견적요청

MDO-2072EG

70MHz, 2-channel, Digital Storage Oscilloscope,

Spectrum analyzer ,dual channel25MHz AWG

견적요청

MDO-2202EX

200MHz,2-channel, Digital Storage Oscilloscope,

Spectrum analyzer ,dual channel25MHz AWG ,5,000counts DMM and power supply

견적요청

MDO-2102EX

100MHz, 2-channel, Digital Storage Oscilloscope,

Spectrum analyzer ,dual channel25MHz AWG ,5,000 counts DMM and power supply

견적요청

MDO-2072EX

70MHz, 2-channel, Digital Storage Oscilloscope,

Spectrum analyzer ,dual channel25MHz AWG ,5,000 counts DMM and power supply
