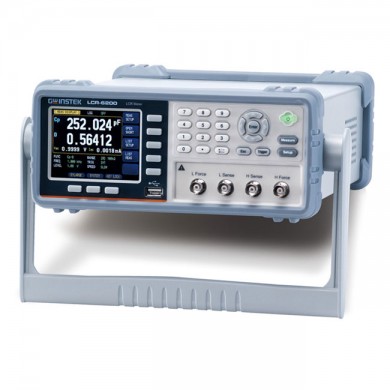

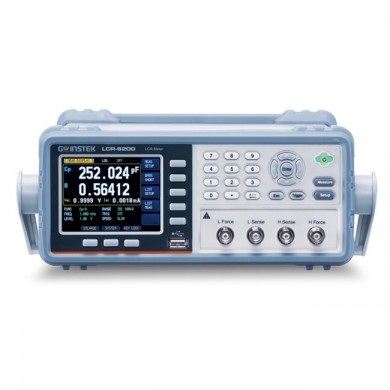

| LCR Meter (LCR-6000)



제품명 LCR Meter
모델명 LCR-6000
특 징 •0.05% 정확도
상세사양

•벤치탑 LCR 미터, LCR-6000
•측정 주파수 대역 : 10Hz~2/20/100/200/300kHz
•기본 정확도 : 0.05%

인터페이스 •RS-232C/USB/Handler
브랜드 GWINSTEK / Taiwan
판매가격 전화문의 : ☎031-750-0440
배송비 주문시 결제

상품 기본설명

LCR Meter (LCR-6000)

제품사양

LCR-6300 : 10Hz~300kHz(±0.01%)

LCR-6200 : 10Hz~200kHz(±0.01%)

LCR-6100 : 10Hz~100kHz(±0.01%)

LCR-6020 : 10Hz~20kHz(±0.01%)

LCR-6002 : 10Hz~2kHz(±0.01%)





주요 특징

• 3.5” color LCD

• 5 models (10Hz~2kHz/20kHz/100kHz/200kHz/300kHz)

• Consecutive test frequency

• Basic accuracy : 0.05%

• Measuring speed up to 25ms (max.)

• Full frequency range or spot OPEN/SHORT

• 16 major/secondary parameter measurement combinations and two additional monitoring parameters(maximum four different parameters can be shown simultaneously)

• DCR measurement and internal D.C. bias voltage (±2.5V)

• PASS/FAIL judgment

• Auto Level Control (ALC) function

• BIN function provides 9BIN and 1AUX, totally 10 BIN

• 10 steps listed tests to select different frequency, voltage and current criteria

• Standard interface : RS-232C, Handler and USB storage

• Compact size, ideal for automatic equipment (2U,1/2 RACK)



GW Instek introduces the brand new high precision LCR meter─LCR-6000 series, which, with five models, has a test frequency range extending from 2kHz/20kHz/100kHz/200kHz/300kHz (maximum) and with 0.05% basic accuracy. The compact size design, 2U height and 1/2 rack, is one of the practical features of the series which is the optimum space saver suitable for either bench top or system rack. The compacted LCR-6000 series with abundant features is absolutelythe excellent tool for R&D, production test, IQC, etc. on implementing each test stages for passive components.



The LCR-6000 series provides rich functionalities with the compact size. First of all, the entire series adopts 3.5-inch color LCD and features opulent display parameters. In addition to simultaneously displaying setting criteria and measurement results, the series increases two additional monitoring parameters. In other words, there are four parameters, primary/secondary and two monitoring, simultaneously shown on the screen that tremendously enhancesthe measurement efficiency. The enlarge display mode not only emphasizes the measurement results, but also provides PASS/FAIL judgment to facilitate a rapid and convenient test result.



Convenience is one of the unique features. The LCR-6000 series comes equipped with two zero methods, which are full frequency range and spot. Users, without turning off the power and changing test fixture, can freely change frequency within the provided frequency range to conduct measurements. By so doing, tremendous time can be saved from repeatedly executing zero operation. Additionally, frequency range of the series is consecutive that allows usersto input precise frequency value to conduct the most genuine test on components.



The LCR-6000 series also features diverse ancillary measurements to meet the measurement requirements of different materials. For instance, the series provides the automatic level control (ALC) function to satisfy the test voltage requirement of MLCC. For inductive component measurements, the series provides the adjustable test current function and the D.C. resistance measurement function. The optional external bias current adapter (±2.5A) is tosatisfy the measurement requirements. With respect to the D.C. bias voltage test for capacitive components requirements, the series allows users to conduct verification measurement on materials by its internal ±2.5V adjustable voltage or via an optional external bias voltage adapter (±45V). Furthermore, 10 steps of listed test functionalities allow users to set testing parameters (either by frequency, or voltage, or current) for each step based on users’ requirements in order to observe the trendof DUT characteristics.



The LCR-6000 series has 10 memory sets defined by panel setting criteria to facilitate users in selecting test criteria and saving time in repeated settings. 10,000 measurement result storage capability can easily record measurement results instantaneously. The USB host allows easy access to recorded results without connecting the series to the PC. The USB host also allows USB to retrieve and save screen so as to assist users in compiling setting guidelines.



For the external control, the LCR-6000 series provides handler interface and collocates with its measurement sorting function (9BIN, AUX: 1BIN) to facilitate the connection with sorting machine so as to sort out the materials. For remote control and measurement result retrieval requirements, the LCR-6000 series provides RS-232Cto assist setting control or measurement result retrieval via the PC commands. Additionally, the free PC software gives users aninstant tool to store measurement results that saves time in developing programs.



The brand new compacted LCR-6000 series can effectively improve the limitation of space. Diverse measurement functionalities and display methods are making the series the high CP ratio choice in meeting the requirements of R&D, component assessment for engineering departments, category sorting requirements for component production, and IQC for verification on component specifications.



Consecutive frequency and Convenient zero function

The LCR-6000 series, within the provided frequency range, features consecutive and adjustable frequency capability which allows users to conduct measurement and analysis on components with the most genuine frequency requirements. For OPEN/SHORT fixture compensation function, the LCR-6000 series is equipped with full frequency range zero and spot zero selections. After executing full frequency range zero, users, under the conditions of not turning off thepower and not changing test fixture, can freely change test frequency for the LCR-6000 series to execute component measurements that tremendously saves time in repeatedly zeroing test fixture after changing frequency.

01

Consecutive and adjustable frequency

Freely input frequency within provided frequency range

02

Selectable fixture zeroing methods

Full frequency range zero or spot zero



Rich and diverse information display

The measurement result display of the LCR-6000 series not only reveals primary and secondary measurement parameters but also includes two monitoring parameters. Therefore, four DUT related parameters can be simultaneously shown on the display screen to save time if repeated measurements are required. With respect to display screen, the LCR-6000 series features diverse display to meet users’ observation requirements. For instance, MEAS display shows settingparameters and measurement results at the same time; ENLARGE display focuses on measurement results and PASS/FAIL judgment is available, which is conducive to assist engineers to swiftly obtain the validity of measurement results.

03

MEAS display

Parameter setting and four measurement parameters

04

ENLARGE display

Enlarge measurement results and include PASS/FAIL judgment



10 points listed tests and PC software

The LCR-6000 series provides the 10 points listed test function, which allows users to define a set of DUT measurement parameters (such as Cs- Rs) and to set 10 test criteria of category (either by frequency or by voltage or by current) but different values to conduct measurements. Through this function, users can rapidly and clearly obtain DUT’s characteristic variation trend to determine the adaptability of DUT’s practical applications. The measurementresults can be recorded directly in the internal memory and be transferred to the PC through USB. The LCR-6000 series also provides free PC software (maximum 1,000 points listed tests) in order to satisfy users’ analytical requirements on delicate variation.

05

Listed tests

Variation criteria based upon frequency or voltage/current

06

On software ─ characteristic curve

Provide more delicate characteristic variation trend



Diverse ancillary measurement functions

To satisfy the diverse measurement application requirements for different components and materials, the LCR-6000 series collocates with many auxiliary measurement functions. For capacitor measurement, Automatic Level Control (ALC) is mainly for component which requires a constant or rated test voltage such as multi-layer ceramic capacitor (MLCC). An internal D.C. bias voltage (±2.5V, internal) is allowing simulating A.C. and D.C. coexistence tolearn capacitance variation. For inductor measurement, the D.C. resistance measurement function is to validate D.C. resistance characteristics. Additional, the LCZ function is to quickly identify components ’characteristics. When the function is activated, the LCR-6000 series will automatically determine DUTs’ characteristics and reveal the optimum parameters to show the measurement results.

07

Automatic level control  08

Ideal for measuring components with voltage requirements

08

Internal bias (±2.5V adjustable)

Ideal for capacitive components’ characteristic tests

09

D.C. resistance measurement

Ideal for inductive components’ D.C. characteristics verification

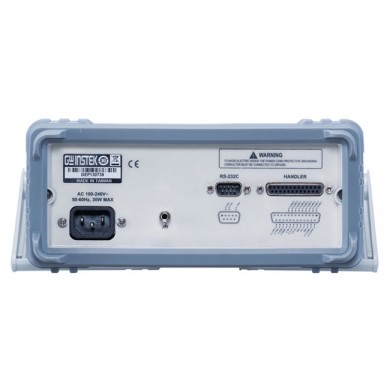

Standard interface

For interface connectivity, the LCR-6000 series comes equipped with handler interface and RS-232C interface. Handler outputs 10 BIN (9BIN, AUX: 1BIN) sorting results that is best for external connection control, for instance, connecting to a sorting machine to conduct components’ sorting operation. RS-232C is suitable for remote control and measurement results retrieval. The PC gives commands to control settings or to read measurement results so as toachieve the requirements of verifying automotive applications.


-



제품 사양

테스트 주파수

LCR-6300 : 10Hz~300kHz(±0.01%)

LCR-6200 : 10Hz~200kHz(±0.01%)

LCR-6100 : 10Hz~100kHz(±0.01%)

LCR-6020 : 10Hz~20kHz(±0.01%)

LCR-6002 : 10Hz~2kHz(±0.01%)

분해능

4디지트

출력 임피던스

30Ω/50Ω/100Ω 선택 가능

기본 정확도

Slow

0.05%

Med

0.05%

Fast

0.10%

테스트 속도

Slow

333ms

Med

100ms

Fast

25ms

테스트 신호 레벨

AC

전압

10.00mV~2.00V(±10%)

CV : 10.00mV~2.00V(±6%)

전류

100.0uA~20.00mA(±10%)

CC : 100.0uA~20.00mA(±6%) @ 최대 2V

DCR

±1V(2Vpp), 구형파, 3Hz, 최대 0.033A

DC 바이어스

내부

±2.5V (0.5%+0.005V)

디스플레이 범위

R, Z, X

0.00001Ω~99.9999MΩ

G, Y, B

0.01nS~999.999S

L

0.00001uH~9999.99H

C

0.00001pF~9999.99mF

D

0.00001~9.99999

Q

0.00001~99999.9

θd

-179.999˚~+179.999˚

θr

-3.14159~+3.14159

DCR

0.00001Ω~99.9999MΩ

△%

-99999%~+99999%

테스트 모드

측정 조합

Cs-Rs, Cs-D, Cp-Rp, Cp-D,

Lp-Rp, Lp-Q, LS-Rs, Ls-Q,

Rs-Q, Rp-Q, R-X, DCR,

Z-θr, Z-θd, Z-D, Z-Q,

Auto LCZ

모니터

Z, D, Q, Vac, Iac, △, △%, θr, θd, R, X, G, B,Y

(2개 선택 가능)

기타 기능

List 테스트

10개 스텝

BIN 기능

Comparator (9BIN, AUX:1BIN)

메모리

INT

패널 설정 : 10세트

측정 데이터 : 10,000 데이터 (.csv)

USB

패널 설정 : 10개 파일

데이터 : 9,999개 파일

LCD 화면 : 999개 로그 파일

ALC(자동 레벨제어)

ON/OFF

평균

1~256

트리거

INT/MAN/EXT/BUS

딜레이

0ms~60s

Pass/Fail 기능

지원

화면 캡쳐

USB에 저장, bmp 형식

일반

디스플레이

3.5인치 LCD 디스플레이, 해상도 320 x 240

인터페이스

RS-232(SCPI), Handler, USB(Host)

AC 입력 전원

AC 100V~240V, 50~60Hz

소모 전력

최대 30W

치수 및 무게

265(W) x 107(H) x 312(D) mm, 약 3kg



-



옵션 및 악세서리

기본 액세서리

안전 지침서 x 1, 전원 코드 x 1, 테스트 픽스쳐 LCR-06B x 1, CD(사용 설명서, PC 소프트웨어)x 1


옵션 액세서리

LCR-05

Axial & Radial 리드 테스트픽스쳐 (DC~1MHz, ±35V)

229,000원

LCR-06A

켈빈 클립(4선) 테스트 리드 (DC~1MHz,±35V)

단종

LCR-06B

켈빈 클립(4선) 테스트 리드 (DC~1MHz,±35V)

158,000원

LCR-07

악어 클립(2선) 테스트 리드 (DC~1MHz,±35V)

115,000원

LCR-08

SMD 칩 테스트 트위져 (DC~1MHz,±35V)

286,000원

LCR-15

SMD 칩(0201~1812) 테스트 픽스쳐(DC~1MHz, ±35V)

286,000원

LCR-16

±45V DC 바이어스 전압 박스 (40Hz~1MHz)

712,000원

LCR-17

±2.5A DC 바이어스 전류 박스(40Hz~1MHz)

398,000원

GTL-232

RS-232 케이블, 9핀(암)-9핀, 널 모뎀, 약 2000mm

11,000원



상기 가격은 부가세 별도 가격입니다.

라인업

주문 정보

LCR-6300

10Hz~300kHz 고정밀 LCR 미터(RS-232, USB Host, Handler 인터페이스)

견적요청

LCR-6200

10Hz~200kHz 고정밀 LCR 미터(RS-232, USB Host, Handler 인터페이스)

견적요청

LCR-6100

10Hz~100kHz 고정밀 LCR 미터(RS-232, USB Host, Handler 인터페이스)

견적요청

LCR-6020

10Hz~20kHz 고정밀 LCR 미터(RS-232, USB Host, Handler 인터페이스)

견적요청

LCR-6002

10Hz~2kHz 고정밀 LCR 미터(RS-232, USB Host, Handler 인터페이스)

견적요청
