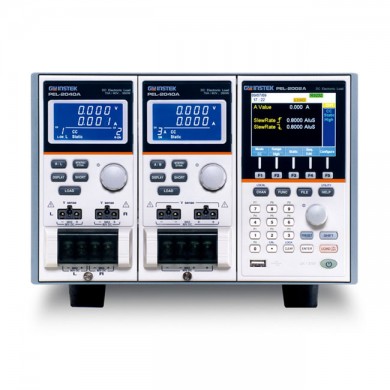

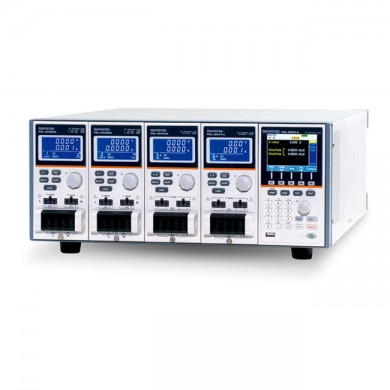

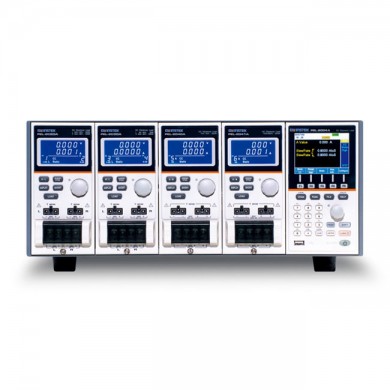

| Programmable DC Electronic Load (PEL-2000A)



제품명 Programmable DC Electronic Load
모델명 PEL-2000A
특 징 •모듈형 DC전자부하 1CH~8CH
상세사양

•33W ~ 350W / 1CH~8CH

•1~80V/2.5~500V

•0~10/20/40/70A

인터페이스 •RS-232C/USB, GPIB(옵션)
브랜드 GWINSTEK / Taiwan
판매가격 전화문의 : ☎031-750-0440
배송비 주문시 결제

상품 기본설명

Programmable DC Electronic Load (PEL-2000A)

제품사양

주요 특징

• Sequence function to do high Efficient load simulations

• Flexible configuration with mainframes and plug-in modules

• Multiple independent load inputs up to 8 channels in a mainframe

• Parallel connection of inputs for increased load capacity

• Parallel connection of inputs for static and dynamic tests

• OPP/OCP/OVP/OTP protections

• External channel control/monitoring via an analog control connector

• Multi-Interface USB Device / Host, RS-232C, and GPIB (Optional)



Satisfy All Your High Speed Load Simulation Needs



The PEL-2004A and PEL-2002A are multiple channel, programmable DC electronic loads with a modularized structure. The PEL-2000A Series is designed to meet the continuing shift toward high speed operation in today's semiconductor market. As the power supply units, DC-DC converters, and batteries that drive semiconductor circuits to follow this shift, power supply design, quality inspection, and characteristic certification using high-speed performance loadshave become necessary. The PEL-2000A Series includes two types of mainframes and 4 types of load modules to accommodate users' requirements in a flexible manner. Any load module combination can be used with a mainframe to tailor a test system based on the number of channels, and the maximum load power, voltage and current of each channel. Multiple loads can be connected in parallel to provide a higher-power load to test higher power supply outputs. This flexibility significantly reduces the investment neededfor future projects that have different power requirements. The PEL-2004A is a 4-slot mainframe with a master control unit to hold 4 load modules, while PEL-2002A is a 2-slot mainframe with master control unit to hold 2 load modules. When the PEL-2004A is configured with 4 load modules rated at 350W each, the PEL-2000A series is able to sink up to 1.4kVA of power.



For higher load capacities, mainframes can be linked together in parallel with standard MIL 20-pin connectors. A maximum of 5 mainframes, including one master and 4 slaves can be chained together to create a total load capacity of 7kW for high current and high power applications. Using 4 dual channel load modules, the PEL-2004A is able to test 8 power supply outputs simultaneously. The Sequence function allows each channel to change its load sink accordingto a predefined sequence at a rate of up to 100 s per step. Each sequence is able to run concurrently under the control of one clock. This is one of the most powerful features of the PEL-2000A ASeries as it is able to realistically simulate a multi-output power supply load. Under Dynamic mode, the load current or load resistance pulses between two preset levels at a pre-defined speed up to 25 s per step. This is often used as the standard test procedure to verify the response of a power supply to quick load changes.Most remarkably, multiple load channels can be connected in parallel to run Dynamic tests synchronously under a single clock. This Parallel Dynamic functionality gives the flexibility to perform dynamic tests for a high-power power supply without the need of another high-power load.



The PEL-2000A Series includes a number of protection modes: Over Current Protection (OCP), Over Voltage Protection (OVP), Over Power Protection (OPP), Reverse Voltage Protection (RVP), and Under Voltage Protection(UVP). The protection modes are useful to protect both the load modules and the DUT(s). A buzzer can be set when a protection setting has been tripped. When a protection mode has been tripped, the load unit will display an alarm and stop sinkingcurrent/voltage. When a load unit is operating in CR or CV mode, the unit may need Over Current Protection to prevent excessive current being sunk. Over Current Protection stops the load from sinking more current than its recommended limit and prevents the load from burn-out damage. Over Voltage Protection is used to limit the amount of voltage sink. If the OVP trips, the PEL-2000A Series load will stop sinking voltage. Over Power Protection is used when the input power exceeds the specifications of the load.When OPP is tripped, the power will cease to be sunk. Reverse Voltage Protection prevents reverse voltage damage to the PEL-2000A Series up to the specified rating. When Reverse Voltage Protection has been tripped, an alarm tone will sound until the reverse voltage is removed. Under Voltage Protection will turn off the load when the voltage drops below a set limit. The Go/NoGo function is available to monitor test results all the time. When a test result goes beyond a preset limit range, a "No Go" indicationwill be shown on the display and a "No Go" signal can be sent out through the D-SUB interface for external device control. This Go/NoGo function is available for CC mode, CV mode, and CR mode. Under "Program" mode, 12 programs, each containing 10 panel setup memories, can be edited to create work routines for repetitive tests. After a program has been executed, the results of all test steps, along with the Go/NoGo judgments, will be shown on the screen. For external control and system configuration,the PEL-2000A series has USB and RS-232 interfaces as standard and GPIB as an option. The LabView driver and Data Logging PC software are both supported for all the available interfaces. Each channel has an analog control/monitoring connector on the rear panel to externally turn a load on/off and to externally monitor load input current and voltage.



A. AUTOMATICALLY SEQUENCE FUNCTION

1

The Sequence function allows each channel to change its load sink according to a predefined sequence at a rate of up to 100 s per step. Each sequence is able to run concurrently, under the control of one clock. This is one of the most powerful features of the PEL-2000A Series as it is able to realistically simulate a multi-output power supply load. Under Dynamic mode, the load current or load resistance pulses between two preset levels at a pre-definedspeed up to 25 s per step. This is often used as the standard test procedure to verify the response of a power supply to quick load changes.



The picture above is an example of a sequence used as a load profile for a single output switching power supply. A load profile is programmed to simulate the current draw of a power supply load. By using a current probe to acquire a current waveform, the PEL-2000A is able to evaluate the performance of a power supply based on the load sequence that is programmed. An oscilloscope is then used to display the result.



B. MULTIPLE OPERATING MODE

2

C.C. ( Constant Current )

In Constant Current mode, a load unit will sink the amount of current programmed. Regardless of the voltage change, the current will stay the same. Two selectable ranges are available for constant current mode: High (HI) and low (LO) range. Low range has a higher resolution for high precision measurements. If the current exceeds the low range, high range must be used. The PEL-2000A Series offers the maximum rated power for the low measurement range. Thisunique feature enables high-resolution measurements at high voltage only if the load current doesn't exceed the rated low range level. Both static and dynamic modes are available for CC operation. Static mode can be used for stability tests and Dynamic mode can be used to test transient load performance of a power supply. Go/NoGo is supported for both high and low ranges as well as Static and Dynamic modes



3

C.V. ( Constant Voltage )

In Constant Voltage mode the load unit will sink current whilst keeping the voltage constant. Under CV mode, single channel load modules support two levels of voltage (A Value, B Value) with a preset cut-off current limit. An A / B button is available on the load module front panels to switch the Constant Voltage between A Value and B Value for power supply load regulation testing. Dual channel load modules only support A Value for CV mode. To accommodatethe response of a power supply, response rates during voltage transitions can be set to fast or slow under static test mode.



4

C.V.+C.C. ( Constant Voltage + Constant Current )

When using CV mode, a current limit can be set for CV+CC mode. If the input voltage is greater than the preset CV limit, the channel will operate in CV mode if the input current is less than the preset CC limit. When the input current exceeds the current limit, the channel will operate in CC mode.



5

C.R. ( Constant Resistance )

In Constant Resistance mode the load units will linearly sink current and voltage to match a set resistance. Two different CR values and two different rising and falling slew rates can be set under CR Mode for single channel load modules. Like CC mode, Constant Resistance mode supports both dynamic and static loads. As with the other modes, Go/No Go is also supported.



C. PARALLEL DYNAMIC LOADING

6

All the load channels in a PEL-2000A mainframe can be connected in parallel to perform any combination of static or dynamic loading. Under Dynamic mode, the load current or load resistance pulses between two preset levels at a predefined speed of up to 25 s per step. When the channels are connected in parallel, dynamic tests are synchronously clocked. The ability to perform parallel dynamic loading gives you the flexibility to perform dynamic tests tohighpower power supplies without the need for a dedicated high power electronic load.



D. FRAME LINK

7

The PEL-2000A Series allows multiple mainframes to be linked together with standard MIL 20-pin connectors to provide higher power load capacity. A maximum of 5 mainframes maximum, including one master and 4 slaves, can be chained together to give a 7kW load capacity for high current and high power applications



E. RUN PROGRAM

8

Under "Program" mode, up to 12 programs each with 10 panel setup memories, can be edited to create work routines for repetitive tests. After a program has completed, the results of all test steps, including the Go/NoGo judgments will be shown on the screen. Up to 12 programs with a total of up to 120 panel-setup memories can be chained together to be run one after the other.



F. PROTECTION MODES

9

The PEL-2000A Series includes a number of protection modes: Over Current Protection (OCP), Over Voltage Protection (OVP), Over Power Protection (OPP), Reverse Voltage Protection (RVP), and Under Voltage Protection (UVP). The protection modes are useful to protect both the load modules and the DUT(s). A buzzer can be set for when a protection setting has been tripped. When a protection mode has been tripped, the load unit will display an alarm and stopsinking current/voltage. When a load unit is operating in CR or CV mode, the unit may need Over Current Protection to prevent excessive current being sunk. Over Current Protection stops the load from sinking more current than its recommended limit and prevents the load from burn-out damage. Over Voltage Protection is used to limit the amount of voltage sunk. If the OVP trips, the PEL-2000A Series load will stop sinking voltage. Over Power Protection is used when the input power exceeds the specifications of theload. When OPP is tripped, the power will cease to be sunk. Reverse Voltage Protection prevents reverse voltage damage to the PEL-2000A Series up to the specified rating. When Reverse Voltage Protection has been tripped, an alarm tone will sound until the reverse voltage is removed. Under Voltage Protection will turn off the load when the voltage drops below a set limit.



G. Von VOLTAGE SETTINGS

10

Von Voltage is the voltage limit at which the load will start to sink current. The Von Voltage setting is necessary for some kinds of power supply if a heavy load is connected during load on. There are two operation modes for Von Voltage: Latch ON and Latch OFF. When Von Latch is set to ON, the load starts to sink current when input voltage exceeds Von, and will continue to sink current even if the voltage drops below the Von Voltage later. When Von Latchis set to OFF, the load starts to sink current when input voltage exceeds Von, but will stop sinking current when the voltage drops below the Von voltage setting. This is to prevent the power supply from running into oscillation when the output voltage goes below certain level.



H. EXTERNAL CHANNEL CONTROL

11

A six-pin analog control connector is available on the rear panel to externally turn a load on/off and to externally monitor the load input status of each channel, including input current, input voltage, and CC current or CV settings. The Voltage Monitor Output (VMON) and Current Monitor Output (IMON) output the load input voltage and load input current as a percentage of rating current/voltage. Where 0 volts = 0% rating and 10 volts = 100% load inputrating voltage or current. The voltage monitor output is across pins 1 & 3, and the current monitor output is across pins 1 & 2. Below shows the pin configuration of the voltage and current monitor outputs.

12

To turn a load on, an active low voltage (0-1V) must be applied across Load On (pin 5) and GND (pin 1), similarly an active high voltage (4-5V) must be applied to turn a load off. The Load On input must be TTL.


-

제품 사양

PEL-2020A

PEL-2030A

채널

L/R

L/R

L

R

범위

L

H

-

L

H

전력

100W

100W

30W

250W

250W

전류

0~2A

0~20A

0~5A

0~4A

0~40A

전압

1~80V

1~80V

1~80V

1~80V

1~80V

최소 동작 전압(DC)

0.4V @ 2A

0.8V @ 20A

0.8V @ 5A

0.4V @ 4A

0.8V @ 40A

0.2V @ 1A

0.4V @10A

0.4V @ 2.5A

0.2V @ 2A

0.4V @20A

Static(정적) 모드

CC(정전력) 모드

설정 범위

0~2.04A

0~20.5A

0~5.1A

0~4.08A

0~40.8A

분해능

0.1mA

1mA

0.125mA

0.1mA

1mA

정확도

±(0.1%set+0.1%F.S)

±(0.1%set+0.2%F.S)

±(0.1%set+0.1%F.S)

±(0.1%set+0.1%F.S)

±(0.1%set+0.2%F.S)

CR(정저항) 모드

설정 범위

0.075Ω~300Ω(100W/16V)

0.3Ω~1.2kΩ(30W/16V)

0.0375Ω~150Ω(250W/16V)

3.75Ω~15KΩ(100W/80V)

15Ω~60KΩ(30W/80V)

1.875Ω~7.5KΩ(250W/80V)

분해능

0.333mS(100W/16V)

83.333uS(30W/16V)

0.666mS(250W/16V)

6.667uS(100W/80V)

1.666uS(30W/80V)

13.333uS(250W/80V)

정확도 (입력≥2.5V)

300Ω : ±(0.2%set+0.1S)

12kΩ : ±(0.2%set+0.1S)

150Ω : ±(0.2%set+0.1S)

15kΩ :±(0.1%set+0.02S)

60kΩ : ±(0.1%set+0.01S)

7.5kΩ : ±(0.1%set+0.01S)

CV(정전압)+CC(정전류)모드

설정 범위

0~81.6V

분해능

2mV

정확도

±(0.05%set+0.1%F.S)

전류 설정 범위

0~20A

0~5A

0~40A

전류 분해능

1mA

0.125mA

1mA

전류 정확도

±(0.1%set+0.2%F.S)

CP(정전력) 모드

설정 범위

0~10.2W

0~102W

0~30.6W

0~25.5W

0~255W

분해능

1mW

10mW

1mW

1mW

10mW

정확도

±(0.5%set+0.5%F.S)

±(0.5%set+0.5%F.S)

±(0.5%set+0.5%F.S)

±(0.5%set+0.5%F.S)

±(0.5%set+0.5%F.S)

Dynamic(동적) 모드

T1&T2

0.025ms~10ms (분해능 1us)

0.025ms~10ms (분해능 1us)

1ms~30s (분해능 1ms)

1ms~30s (분해능 1ms)

정확도

1uS/1mS±100ppm

1uS/1mS±100ppm

CC(정전류) 모드

슬루율(±10%set+15us)

0.32~80mA/us

3.2~800mA/us

0.8~200mA/us

0.64~160mA/us

6.4~1600mA/us

슬루율 분해능

0.32mA/us

3.2mA/us

0.8mA/us

0.64mA/us

6.4mA/us

슬루율 설정 정확도

±(10%+15us)

±(10%+15us)

±(10%+15us)

±(10%+15us)

±(10%+15us)

전류 설정 범위

0~2A

0~20A

0~5A

0~4A

0~40A

전류 분해능

0.1mA

1mA

0.125mA

0.1mA

1mA

전류 정확도

±0.4% F.S

±0.4% F.S

±0.4% F.S

±0.4% F.S

±0.4% F.S

CR(정저항) 모드

슬루율

0.32~80mA/us

3.2~800mA/us

0.8~200mA/us

0.64~160mA/us

6.4~1600mA/us

슬루율 분해능

0.32mA/us

3.2mA/us

0.8mA/us

0.64mA/us

6.4mA/us

슬루율 설정 정확도

±(10%+15us)

±(10%+15us)

±(10%+15us)

±(10%+15us)

±(10%+15us)

저항 설정 범위

0.075Ω~300Ω(100W/16V)

0.3Ω~1.2kΩ(30W/16V)

0.0375Ω~150Ω(250W/16V)

3.75Ω~15KΩ(100W/80V)

15Ω~60KΩ(30W/80V)

1.875Ω~7.5KΩ(250W/80V)

저항 분해능

0.333mS(100W/16V)

83.333uS(30W/16V)

0.666mS(250W/16V)

6.667uS(100W/80V)

1.666uS(30W/80V)

13.333uS(250W/80V)

저항정확도

300Ω : ±(0.5%set+0.1S)

12kΩ : ±(0.5%set+0.1S)

150Ω : ±(0.5%set+0.1S)

15kΩ :±(0.5%set+0.01S)

60kΩ : ±(0.5%set+0.01S)

7.5kΩ : ±(0.5%set+0.01S)

측정

전압 리드백

범위

0~16V

0~80V

0~16V, 0~80V

0~16V

0~80V

분해능

0.32mV

1.6mV

0.32mV, 1.6mV

0.5mV

2.5mV

정확도

±(0.025%set+0.025%F.S)

전류 리드백

범위

0~2A

0~20A

0~5A

0~4A

0~40A

분해능

0.04mA

0.4mA

0.1mA

0.08mA

0.8mA

정확도

±(0.05%set+0.05%F.S)

전력 리드백

범위

0~10W

0~100W

0~30W

0~25W

0~250W

정확도

±(0.1%set+0.1%F.S*1)

*1 : 전력 F.S =전압 범위 F.S x 전류 범위 F.S

보호

OPP (과전력 보호)

범위

1~102W

1~30.6W

1~255W

분해능

0.5W

0.15W

1.25W

정확도

±(2%set+0.25%F.S)

OCP (과전류 보호)

범위

0~20.4A

0~5.1A

0~40.8A

분해능

0.05A

0.0125A

0.1A

정확도

±(2%set+0.25%F.S)

OVP (과전압 보호)

범위

1~81.6V

1~81.6V

1~81.6V

분해능

0.2V

0.2V

0.2V

정확도

±(2%set+0.25%F.S)

OTP

약 85℃

RPP (정격 전력 보호)

범위

110W

33W

275W

정확도

±(2%set)

일반

단락 회로

전압 (CV)

약 2.2/2A

약 22/20A

약 5.5/5A

약 4.4/4A

약 44/40A

전류 (CC)

0V

0V

0V

0V

0V

저항 (CR)

약 3.75Ω

약 0.075Ω

약 15Ω, 약 0.3Ω

약 1.875Ω

약 0.0375Ω

입력 저항(부하 OFF)

500kΩ (Typical)

AC 입력 전원

AC 100V~230V±10%; 50Hz/60Hz±2Hz

무게

약 3.8kg

치수/무게(PEL-2002)

272(W) x 200(H) x 581(D) mm; 약 16.1kg (2개 모듈 장착 시)

치수/무게(PEL-2004)

435(W) x 200(H) x 581(D) mm; 약 24.8kg (4개 모듈 장착 시)



제품 사양

PEL-2040A

PEL-2041A

범위

L

H

L

H

전력

350W

350W

350W

350W

전류

0~7A

0~70A

0~1A

0~10A

전압

1~80V

1~80V

2.5~500V

2.5~500V

최소 동작 전압(DC)

0.4V @ 7A

0.8V @ 70A

0.4V @ 1A

0.8V @ 10A

0.2V @ 3.5A

0.4V @35A

0.2V @0.5A

0.4V @ 5A

Static(정적) 모드

CC(정전류) 모드

설정 범위

0~7.14A

0~71.4A

0~1.02A

0~10.2A

분해능

0.2mA

2mA

0.05mA

0.5mA

정확도

±(0.1%set+0.1%F.S)

±(0.1%set+0.2%F.S)

±(0.1%set+0.1%F.S)

±(0.1%set+0.2%F.S)

CR(정저항) 모드

설정 범위

0.025Ω~100Ω (350W/16V), 1.25Ω~5KΩ (350W/80V)

1.25Ω~5kΩ (350W/125V), 50Ω~200KΩ (350W/500V)

분해능

1mS (350W/16V), 20uS (350W/80V)

20uS (350W/125V), 0.5uS (350W/500V)

정확도 (입력≥2.5V)

100Ω : ±(0.2%set+0.1S), 5kΩ : ±(0.1%set+0.02S)

5kΩ : ±(0.2%set+0.0.2S), 200kΩ :±(0.1%set+0.01S)

CV(정전압) + CC(정전류)모드

설정 범위

0~81.6V

0~510V

분해능

2mV

10mV

정확도

±(0.05%set+0.1%F.S)

±(0.05%set+0.1%F.S)

전류 설정 범위

0~70V

0~10A

전류 분해능

2mA

0.5mA

전류 정확도

±(0.1%set+0.2%F.S)

±(0.1%set+0.2%F.S)

CP(정전력) 모드

설정 범위

0~35.7W

0~357W

0~35.7W

0~357W

분해능

1mW

10mW

1mW

10mW

정확도

±(0.5%set+0.5%F.S)

±(0.5%set+0.5%F.S)

±(0.5%set+0.2%F.S)

±(0.5%set+0.5%F.S)

Dynamic(동적) 모드

T1&T2

0.025ms~10ms (분해능 1us)

0.025ms~10ms (분해능 1us)

10ms~30s (분해능 1ms)

10ms~30s (분해능 1ms)

정확도

1uS/1mS±100ppm

1uS/1mS±100ppm

슬루율(±10%set+15us)

0.001~0.28A/us

0.01~2.8A/us

0.16~40mA/us

1.6~400mA/us

슬루율 분해능

0.001A/us

0.01A/us

0.16mA/us

1.6mA/us

슬루율 설정 정확도

±(10%+15us)

±(10%+15us)

±(10%+15us)

±(10%+15us)

CC(정전류) 모드

설정 범위

0~7A

0~70A

0~1A

0~10A

분해능

0.2mA

2mA

0.05mA

0.5mA

정확도

±(0.4%F.S)

±(0.4%F.S)

±(0.4%F.S)

±(0.4%F.S)

CR(정저항) 모드

설정 범위

0.025Ω~100Ω (350W/16V), 1.25Ω~5KΩ (350W/80V)

1.25Ω~5kΩ (350W/125V), 50Ω~200KΩ (350W/500V)

분해능

1mS (350W/16V), 20uS (350W/80V)

20uS (350W/125V), 0.5uS (350W/500V)

정확도 (입력≥2.5V)

100Ω : ±(0.5%set+0.1S), 5kΩ : ±(0.5%set+0.02S)

5kΩ : ±(0.5%set+0.0.2S), 200kΩ :±(0.5%set+0.01S)

측정

전압 리드백

범위

0~16V

0~80V

0~125V

0~500V

분해능

0.32mV

1.6mV

2.5mV

10mV

정확도

±(0.025%set+0.025%F.S)

±(0.025%set+0.025%F.S)

전류 리드백

범위

0~7A

0~70A

0~1A

0~10A

분해능

0.14mA

1.4mA

0.02mA

0.2mA

정확도

±(0.05%set+0.05%F.S)

±(0.05%set+0.05%F.S)

전력 리드백

범위

0~35W

0~350W

0~35W

0~350W

정확도

±(0.1%set+0.1%F.S*1)

*1 : 전력 F.S =전압 범위 F.S x 전류 범위 F.S

보호

OPP (과전력 보호)

범위

1~357W

1~357W

분해능

1.75W

1.75W

정확도

±(2%set+0.25%F.S)

±(2%set+0.25%F.S)

OCP (과전류 보호)

범위

0~71.4A

0~10.2A

분해능

0.175A

0.025A

정확도

±(2%set+0.25%F.S)

±(2%set+0.25%F.S)

OVP (과전압 보호)

범위

1~81.6V

1~510V

분해능

0.2V

1.25V

정확도

±(2%set+0.25%F.S)

±(2%set+0.25%F.S)

OTP

약 85℃

약 85℃

RPP (정격 전력보호)

범위

385W

385W

정확도

±(2%set)

±(2%set)

일반

단락 회로

전류 (CC)

약 7.7/7A

약 77/70A

약 1.1/1A

약 11/10A

전압 (CV)

0V

0V

0V

0V

전항 (CR)

약 1.25Ω

약 0.025Ω

약 15Ω, 약 50Ω

약 1.25Ω

입력 저항(부하 OFF)

500kΩ (Typical)

500kΩ (Typical)

AC 입력 전원

AC 100V~230V±10%; 50Hz/60Hz±2Hz

무게

약 3.8kg

치수/무게(PEL-2002)

272(W) x 200(H) x 581(D) mm; 약 16.0kg (2개 모듈 장착 시)

치수/무게(PEL-2004)

435(W) x 200(H) x 581(D) mm; 약 28.4kg (4개 모듈 장착 시)


-


-

옵션 및 악세서리

기본 액세서리

PEL-2002A/2004A : 사용 설명서 x 1, 전원 코드 x 1,PEL-003 x 3 (PEL-2004A); PEL-003 x 1 (PEL-2002A)

PEL-2020A/2030A/2040A/2041A : 테스트 리드 GTL-120x 1, 센스 리드 GTL-121 x 1

옵션

R-CON

PEL-2000 제어 소프트웨어

옵션 액세서리

PEL-001

GPIB 카드

PEL-002

랙 마운트 키트

PEL-003

패널 커버

GTL-251

USB-GPIB 어댑터

GTL-248

GPIB 케이블

GTL-249

프레임 링크 케이블

GTL-246

USB 케이블

GTL-232

RS-232C 케이블


-




*** 본 (주)파워티엠 홈페이지의 게시물 및 제품 자료를 사전 동의없이 무단으로 복사 및 배포를 금지합니다. ***


이 분류에 등록된 다른 상품이 없습니다. 전체목록 ▲ 맨위로 ◀◀ 뒤로가기

배송정보

★ 배송정보 ★
1. 재고 보유상품의 경우 입금확인 후 1~3일 정도 상품 준비기간이 소요되며, 주문량이 많을 경우
    준비기간이 조금 더 소요될 수 있습니다.
    (단, 재고 소진 상품의 경우 배송기간이 3주~4주 소요될수 있사오니 참고바랍니다.)
2. 주문하신 상품은 배송완료 문자를 받아보신 후 1~2일 이내에 수령하실 수 있습니다.
3. 10만원 이상 구매시 배송료는 무료입니다.
※ 해외배송은 무료배송이벤트에서 제외됩니다.해외배송 상품무게는 별도 측정 후
    주문상품 구매액 + 운임료와 함께 결제해주셔야 합니다.



관련상품

★ 관련상품 ★

등록된 상품이 없습니다.







회사소개



전력전자제품



계측기기제품



제어계측시스템



자료실



고객지원

인사말

회사소개

회사연혁

오시는길

DC파워서플라이

SMPS/ LED컨버터

양방향파워/회생형파워

전자로드(전자부하기)

AC파워소스

AC/DC 저항로드뱅크

단종제품(전력기기)

디지털멀티메터

오실로스코프

스펙트럼분석기

클램프메터(전류계)

파워메터(전력분석기)

제네레이터/파형발생기

저항계 / LCR메터

내전압 절연저항시험기

데이터로거/레코더

열화상카메라

기타 계측기

단종제품(계측기기)





충방전시스템

신뢰성시험기

자동차부품시험

발전기 시험기

소프트웨어

매뉴얼 자료실

프로그램 자료실

카타로그 자료실

사양서 자료실

기술 자료실

공지사항

이벤트게시판

1:1문의

온라인 A/S요청

교정접수안내

교정신청서



견적요청

온라인 견적요청

업체명: (주)파워티엠 | 대표자: 차효정 | 주소: 경기도 성남시 중원구 갈마치로 302, B동 602호(상대원동,우림라이온스밸리5차)
전화(Tel): 031-750-0440 | 팩스(Fax): 031-750-0442 | e메일: powertm@powertm.co.kr
사업자등록번호: 215-87-96171 | 통신판매업신고: 제2016-성남중원-0113호
Copyright © (주)파워티엠. All Rights Reserved.
