내전압 시험기 다출력 스캐너 박스 GSB-01/02

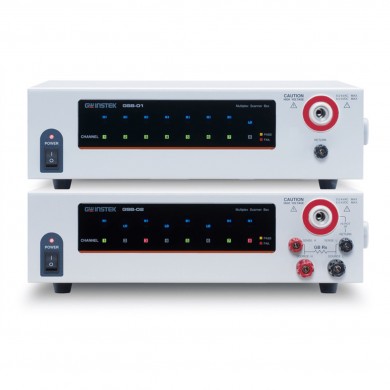

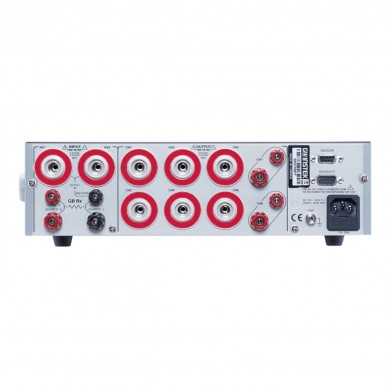

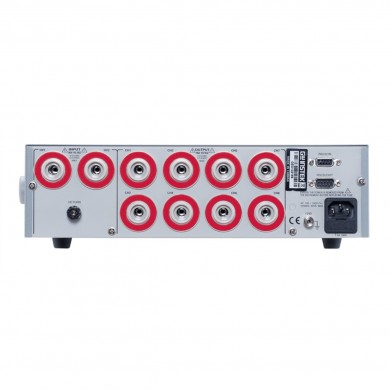

주요 특징 • GSB-01 (8CH High Voltage Scanner Box) • GSB-02 (6CH High Voltage and 2CH Ground Bond Scanner Box) • Front & rear input connector design is suitable for the GPT-9800/9900/9900A series • A maximum of 4 scanner boxes (32 CH) can be connected to one GPT-9800/9900/9900A series • High-intensity LED for Channel, Status & Judgment indications |
GW Instek presents a dedicated option, multiplex scanner box, for specific safety tester series. This multiplex scanner box, GSB-01/02, has a function that distributes the test voltage or current provided by the GPT-9800/9900/9900A series to multiple test points. Up to eight channels can be used for outputs on one scanner. Operator can conduct AC/DC withstanding, insulation resistance and ground bond test on test points depending selected scanner model.Furthermore, up to four scanners can be connected to the tester, allowing a maximum of 32 channels. These features ensure highly reliable and labor-saving for electrical and electronic equipment with multiple test points.
An electric potential mode for each channel – HI (voltage applied), LO (return) and X (open mode) can be set either by the front panel operation or through commands by the USB/GPIB(Option) of GPT-9800/9900/9900A. The multiplex scanner permits specified setting – AC/DC withstanding or insulation resistance or ground bond tests on assigned one of the eight test channel. For example, you can set CH1 ~ CH3 to HI (high voltage) and CH4 to LO.
It adds the following functions to the GPT-9800/9900/9900A tester:
One scanner extends the output to eight channels. A potential of HI, LO, or X can be set for each channel and an AC/DC withstanding voltage, insulation resistance or ground bond test can be conducted at any eight test points depending on model of scanner.
A maximum of four scanners can be connected to one GPT-9800/9900/9900A tester. This allows the output to be extended to up to 32 channels.
This allows labor-saving, reliable withstanding voltage, insulation resistance or ground bond testing of electric or electronic equipment or electronic components with multiple test points.
|
제품 사양 | ||
| GSB-01 | GSB-02 |
고전압 정격 | ||
| 5kVac/6kVdc | 5kVac/6kVdc |
고전류 정격 | ||
| - | 40Aac |
고전압 채널 개수 | ||
| 8CH | 6CH |
그라운드 본드 채널 개수 | ||
| - | 2CH |
최대 스캐너 채널 개수 | ||
| 최대 32CH (4개 스캐너 연결) | |
인터페이스 | ||
| RS-232 (GPT-9900/9800 시리즈와스캐너 박스 사이) | |
AC 입력 전원 | ||
| AC 100~240V±10%, 50/60Hz | |
치수 및 무게 | ||
| 330(W) x 101(H) x 399(D) mm, 약 5.5kg | 330(W) x 101(H) x 413(D) mm, 약 5.5kg |
기본 액세서리 | |
쿽 스타트 가이드 x 1, 전원 코드 x 1, 사용 설명서 CD x 1, 고전압 리드 GHT-108 x 1, 통신 케이블 GTL-235 x 1 | |
GSB-01 | GHT-116R x 8, GHT-116B x 1 |
GSB-02 | GHT-116R x 6, GHT-116B x1, GTL-116R x 2, GTL-116B x 1, GHT-109 x 1 |
주문 정보 | ||
GSB-01 | 멀티플렉스스캐너 박스 : 8CH HV | 2,514,000원 |
GSB-02 | 멀티플렉스스캐너 박스 : 6CH HV + 2CH GB | 2,514,000원 |
상기 가격은 부가세 별도 가격입니다. | ||
