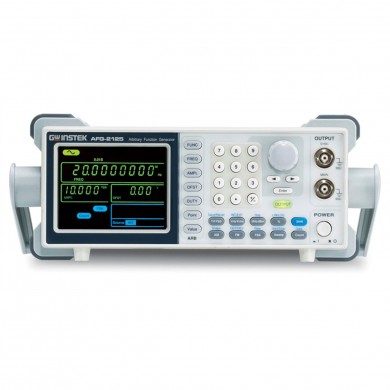

주요 특징

• 0.1Hz to 5/12/25 MHz with in 0.1Hz Resolution

• Sine, Square, Triangular, Noise and Arbitrary Waveform

• 20MSa/s Sampling Rate, 10 bit Vertical Resolution and 4k Point Memory for Arbitrary Waveform

• 1% ~ 99% adjustable duty cycle for Square Waveform

• Waveform Parameter Setting Through Numeric Keypad Entry & Knob Selection

• Amplitude, DC Offset and Other Key Setting Information Shown on the 3.5” LCD Screen Simultaneously

• AM/FM/FSK Modulation, Sweep, and Frequency Counter Functions (AFG-2100 only)

• USB Device Interface for Remote Control and Waveform Editing

• PC Arbitrary Waveform Editing Software

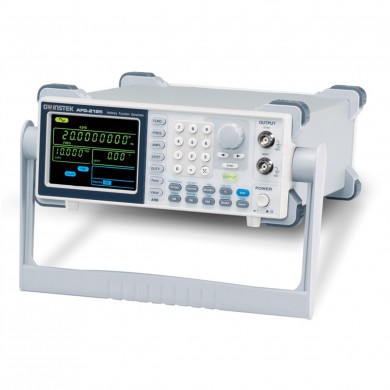

The AFG-2100/2000 Series Arbitrary Function Generator is a DDS (Direct Digital Synthesized) based signal generator designed to accommodate the Educational and Basic Industrial requirements for an accurate and affordable signal source covering the output of Sine, Square (Pulse), Ramp (Triangle), Noise and Arbitrary waveforms. The 20M Sa/s sampling rate, 10 bit vertical resolution and 4k point memory of the AFG-2100/2000 Series provide user with a flexibleenvironment for creating the specific waveform output as needed. The 0.1Hz resolution of Sine, Square and Triangle waveforms and the 1% ~ 99% adjustable duty cycle of Square (Pulse) waveform are the remarkable features to greatly extend its application range in various fields.

The AFG-2100/2000 Series includes 6 models in three frequency bands of 5MHz, 12MHz and 25MHz. Besides the basic features of the whole AFG-2100/2000 Series, AFG-2100 also carries additional features of AM/FM/FSK Modulation, Sweep, and Frequency Counter.

The user friendly interface of AFG-2100/2000 Series allows user to set waveform parameters, including waveform type, frequency, amplitude, DC offset, modulation type, and duty cycle, through keypad entry and/or the knob selection, and display the set parameters on the 3.5” LCD screen. The AFG-2100/2000 Series is equipped with a USB Device interface for remote control and waveform editing through a PC. A waveform editing software is provided to facilitatethe waveform creation on the PC. After the waveform editing is done, the user is able to download the waveform data from PC to the AFG-2100/2000 Series for signal output.

Arbitrary Waveform Function

Other than the high accuracy and high stability DDS Function Waveforms-Sine, Square and Triangle, the AFG-2100/2000 Series also provides the feature to generate Arbitrary Waveforms as what user wants. The 20MSa/s sampling rate, 10 bit vertical resolution and 4k point waveform memory allow user to create the needed waveform point by point through keypad entry on the front panel, or to do waveform editing on the PC and download the waveform data to the AFG-2100/2000Series, for arbitrary waveform output. A PC software is available to facilitate the editing of complicated and irregular waveforms, which fulfill the requirements of various applications in the real life scenarios.

Adjustable Duty Cycle

The adjustable duty cycle of square waveform is a commonly used feature of a Function Generator. For a conventional Function Generator, however, the adjustable duty cycle mostly falls in a limited 20% ~ 80% range, which may not fit the demands of specific applications. The AFG-2100/2000 Series is able to provide a 1% ~ 99% variable duty cycle for its square waveform output. This feature allows the AFG-2100/2000 Series to be used as a Pulse Generator tocreate pulse waveform simulating a spike signal or a transient signal in most of the generic applications.

Parameter Setting

The keypad entry and/or knob selection for waveform parameter setting is a unique feature of the AFG-2100/2000 Series. The conventional analog knob, which is commonly adopted in the AFG design, is not accurate enough for precision setting of waveform parameters, and may generate noise to interfere the system operation. The keypad entry design of AFG-2100/2000 Series improves the setting uncertainty of conventional Function Generator and therefore significantlyincreases the accuracy of its waveform output. Besides keypad entry, the AFG-2100/2000 Series also offers the knob selection convenience with a digital knob design, which allows user to see the parameter value change in detail on the 3.5” LCD screen when the adjustment is in progress.

Waveform Amplitude & DC Offset

Besides output waveform frequency, the AFG-2100/2000 Series is able to show output waveform amplitude, DC offset and other key setting information on the LCD screen simultaneously. This provides the convenience for user to know what signal is being sent out at the output terminal without the need to check the waveform through an oscilloscope. Further more, the waveform amplitude value can be shown in one of the three units, including Vpp, Vrms and dBm,depending on user’s selection. This saves time for tedious math conversion among various units of waveform amplitude.

AM/FM/FSK Modulation, Sweep & Frequency Counter

All AFG-2100 models are equipped with additional AM/FM/FSK Modulation, Sweep & Frequency Counter functions. The AM/FM modulated signal provides a means for basic modulation circuit tests and experiments. Whereas, the FSK modulated signal is offered as a convenient source for the performance evaluation of digital modulation circuits. The Sweep function, with accurate frequency sweep range & sweep time, adequately fits a lot of basic applicationsin the market, such as sweep-tone test of the speaker in a 20Hz ~ 20kHz sweep range. The built-in frequency counter of AFG-2100 is able to measure the frequency of an external signal up to 150MHz. This add-on value saves for user an additional cost of purchasing a standalone frequency counter.

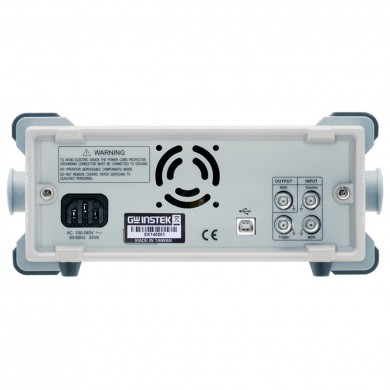

USB Interface

The AFG-2100/2000 Series provides a USB Device Interface, which allows the programming of remote control or ATE of the product. An arbitrary waveform editing software is available to facilitate the waveform creation task. After the waveform editing is completed on the PC, the waveform data can be downloaded through USB Interface to the AFG-2100/200 for arbitrary waveform output.

Arbitrary Waveform Editing PC Software

The arbitrary waveform editing software contains not only waveform drawing tools but also a wide variety of waveform editing functions. The most commonly used waveforms, including Rayleigh, Gaussian, Normal Noise, Pseudo Ternary, Bipolar AMI, Manchester, Differential Manchester, RS-232, and NRZ etc., are available in the library for user to tailor specific waveforms as needed. Besides, this software can import CSV format file as waveform data which iscreated by the other tools. The editing software will stretch AFG-2100/2000 to more applications.

제품 사양

AFG-2100 시리즈

AFG-2000 시리즈

AFG-2105

AFG-2112

AFG-2125

AFG-2005

AFG-2012

AFG-2025

파형

기본 파형

Sine, Square, Ramp, Noise, ARB

임의파형

샘플링 속도

20MSa/s

반복 속도

10MHz

파형 길이

4k 포인트

진폭 분해능

10 비트

주파수 특성

범위

Sine/Square

0.1Hz~5MHz

0.1Hz~12MHz

0.1Hz~25MHz

0.1Hz~5MHz

0.1Hz~12MHz

0.1Hz~25MHz

Ramp

0.1Hz~1MHz

분해능

0.1Hz

정확도

안정도

±20ppm

에이징 : ±1ppm/year

허용오차

<1mHz

출력 특성

진폭

범위

1mVpp~10Vpp

50Ω 부하, <20MHz

2mVpp~20Vpp

개방 회로(High Z), <20MHz

1mVpp~5Vpp

50Ω 부하, 20MHz~25MHz

2mVpp~10Vpp

개방 회로(High Z), 20MHz~25MHz

정확도

±(설정값 2%) ±1mVpp

1kHz, >10mVpp

분해능

1mV 또는 3디지트

평탄도

±1%(0.1dB)

≤100kHz

±3%(0.3dB)

≤5MHz

±4%(0.4dB)

≤12MHz

±20%(2dB)

≤20MHz

±5%(0.4dB)

≤25M

* Sinewave relative to 1kHz

단위

Vpp, Vrms, dBm

오프셋

범위

±5Vpk ac+dc

50Ω 부하, <20MHz

±10Vpk ac+dc

개방 회로(High Z), <20MHz

±2.5Vpk ac+dc

50Ω 부하, 20MHz~25MHz

±5Vpk ac+dc

개방 회로(High Z), 20MHz~25MHz

정확도

(설정값 2%)+5mV+(진폭 0.5%)

파형 출력

임피던스

출력 상태 : 50Ω; 출력 차단 : >300KΩ

보호

단락 회로 보호; 과부하 릴레이가 자동으로 출력을 차단

SYNC

레벨

TTL 호환

>1KΩ

출력

임피던스

50Ω nominal

상승/하강

≤25ns

정현파(SineWave) 특성

고조파(Harmonic)

-55dBc

DC~200kHz, 진폭>0.1Vpp

왜곡

-50dBc

200kHz~1MHz, 진폭>0.1Vpp

-35dBc

1MHz~5MHz, 진폭>0.1Vpp

-30dBc

5MHz~25MHz, 진폭>0.1Vpp

구형파(SquareWave) 특성

상승/하강시간

≤25ns

최대 출력, 50Ω 부하

오버슈트

<5%

비대칭도

(주기 1%)+1ns

듀티 비율

1.0%~99.0%

≤100kHz

20.0%~80.0%

≤5MHz

40.0%~60.0%

≤10MHz

50.00%

≤25MHz

램프(Ramp) 특성

선형성

<(피크 출력의 0.1%)

대칭 비율

0.0%~100.0%, 분해능 0.1%

AM 변조

반송 파형

Sine, Square, Triangle

-

변조 파형

Sine, Square, Triangle

변조 주파수

INT : 2mHz~20kHz, EXT : DC~20kHz

깊이

0%~120%

신호원

INT/EXT

FM 변조

반송 파형

Sine, Square, Triangle

-

변조 파형

Sine, Square, Triangle

변조 주파수

INT : 2mHz~20kHz, EXT : DC~20kHz

피크 편차

DC~최대 주파수

신호원

INT/EXT

FSK 변조

반송 파형

Sine, Square, Triangle

-

변조 파형

Square, 50% 듀티 비율

변조 주파수

INT : 2mHz~100kHz, EXT : DC~100kHz

주파수 편차

0.1Hz~최대 주파수

신호원

INT/EXT

SWEEP

파형

Sine, Square, Triangle

-

유형

LIN/LOG

Start/Stop 주파수

0.1Hz~최대 주파수

SWEEP 시간

1ms~500s

신호원

INT/EXT

주파수 카운터

범위

5Hz~150MHz

-

정확도

타임 베이스 정확도±1카운트

타임 베이스

±20ppm (23℃±5℃) ;30분 예열 후

분해능

100nHz for 1Hz

0.1Hz for100MHz

입력 임피던스

1kΩ//1pF

감도

35mVrms~30Vrms; 5Hz~150MHz

기타

저장/호출

10세트 설정 메모리

인터페이스

USB(Device)

디스플레이

3.5인치 LCD

전원 입력

AC 100~240V, 50~60Hz; 소모 전력 : 최대 25VA

치수 및 무게

266(W) x 107(H) x 293(D) mm, 약 2.5kg

기본 액세서리

퀵 스타트 가이드 x 1, 사용 설명서 CD x1, 전원 코드 x 1, 테스트 리드 :GTL-101 x 2 (AFG-2100) / GTL-101 x 1 (AFG-2000)

옵션 액세서리

GTL-246

USB 케이블, USB 2.0, A-B 타입, 4P

14,000원

GTL-110

BNC 케이블, BNC(P/M)-BNC(P/M), 1000mm

17,000원

상기 가격은 부가세 별도 가격입니다.

주문 정보

AFG-2125

25MHz 1CH ARB 발생기, 변조/주파수 카운터

견적요청

AFG-2112

12MHz 1CH ARB 발생기,변조/주파수 카운터

견적요청

AFG-2105

5MHz 1CH ARB 발생기, 변조/주파수카운터

견적요청

AFG-2025

25MHz 1CH ARB 발생기

견적요청

AFG-2012

12MHz 1CH ARB 발생기

견적요청

AFG-2005

5MHz 1CH ARB 발생기

견적요청
