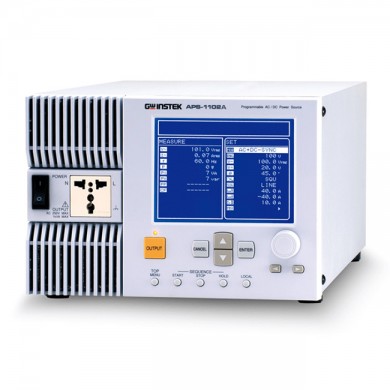

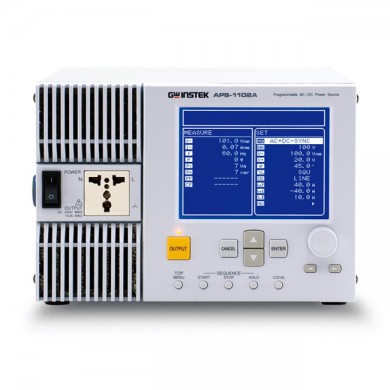

| Programmable AC/DC Power Supply (APS-1102A)



제품명 Programmable AC/DC Power Supply
모델명 APS-1102A
특 징 •AC/DC겸용 프로그램형 파워소스
상세사양

•출력 전력 : 1kVA/1kW

•AC전압:0~155Vrms/0~310Vrms

•AC전류:0~10Arms/0~5Arms

•DC전압:±220V/±440V

•DC전류:0~10A/0~5A

인터페이스 •USB(USBTMC)/RS-232
브랜드 GWINSTEK / Taiwan
판매가격 전화문의 : ☎031-750-0440
배송비 무료배송

상품 기본설명

Programmable AC/DC Power Supply (APS-1102A)

제품사양

주요 특징

• 5.7" Large LCD Display

• Output Capacity: 1kVA(for AC 200V Input)

• Output Modes: AC and AC+DC Combined with any of four signal sources

• Signal Source: Internal(INT),External(EXT),Internal+External(ADD) and Synchronization(SYNC)

• Arbitrary Waveform Power Output

• Power Amplifier of External Signal

• Measurement Functions: Voltage, Current, Power ,Frequency, Power Factor,CF,and Harmonic Current

• Capacitor Input Load Supported

• Sequence Function Allows Programming of Output Patterns

• Limiter Function ( Upper / Lower / Limit Function)

• 30 sets of Save / Recall Memory

• Output On / Off Switch

• USB(USBTMC)and RS-232 Standard for Remote Control

• PC Software (Including Data Logging)



Need an Arbitrary Waveform Power Source? No Problem!

The AC power supply APS-1102A is not only in the role as a precision AC/DC power source but also a powerful analyzer, containing abundant features for the testing and characteristic analysis of power supplies, electronic devices, components and modules. Besides providing AC/DC power, APS-1102A also allows free programming of outputs for the simulation of a power source with abnormal variations. The instantaneous interruption, frequency sweeping, voltagesweeping, and arbitrary waveforms of power source can be easily generated in accordance with the test requirements. The output function includes two main modes, AC and AC + DC. Each mode can be combined with any of the four signal sources, internal (INT), external (EXT), internal + external (ADD), and synchronization, to give an ultimate flexibility of power source setting. APS-1102 includes a multi-functional and user-friendly software, which supports the remote control of panel operations, Sequence editingand execution, Arbitrary waveform editing and transfer, and Data logging via USB interface. With capacity of 1kVA power and weighting of 20 lbs, APS-1102A provides powerful test and analysis features all in a comparatively compact and light-weight box.



A. OUTPUT MODES

Power output function includes AC and AC+DC main modes. Each mode can be combined with one of the signal sources, including internal, external, internal + external, and external synchronization, to provide a strong tool for the generation of a power source with abnormal variations.



Output of Arbitrary Waveforms

Arbitrary waveforms can be edited on the PC and transferred via USB interface to APS-1102A as the internal signal source for power output. 16 sets of waveform memory with 4k words waveform length each are available for arbitrary waveform generation and storage.



Amplifier of External Signal

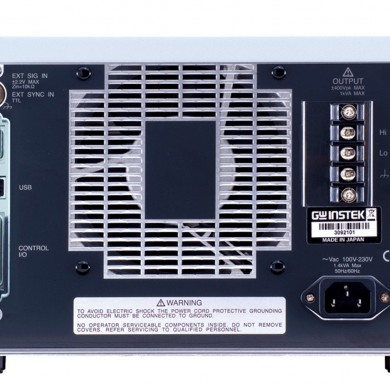

The APS-1102A can be used as an amplifier for the external signal to generate output power source. When one selects the external signal source mode (AC-EXT or AC+DC-EXT) and connects the external signal to the external signal input/external sync signal input terminal (EXT SIG IN/EXT SYNC IN), APS-1102A generate the power output according to the waveform of the external signal input.



Power output synchronization with External Signal

The externally synchronized oscillation of APS-1102 allows the output power source to be frequency-synchronized with the external signal at TTL level in the frequency range from 40Hz to 500Hz.



B. Measurement Functions

The APS-1102A is equipped with the following measurement functions

Voltage (RMS, Average DC, Peak)

Current (RMS, Average DC, Peak, Peak hold)

Power (Effective, Reactive, Apparent)

Synchronization frequency (external synchronization)

Load power factor

Load crest factor

Harmonic current (50/60Hz fundamental, up to 40th harmonics)

01



C. Sequence Operation Function

In the Sequence Operation programming, DC, sine waves, square waves, and 16 arbitrary waveforms captured via the USB interface can be used as elements for sequence editing. Among the total 255 sequence steps, as maximum capacity, the waveform, level and time duration can be set; constant / keep / sweep can be chosen in each individual step. The APS-1102A is also equipped with other functions, such as branching to a specified step during a sequence operation.All the data of start, stop, or hold of sequence operation are saved into the sequence memory to perform the sequence operation automatically.

02



D. APPLICATION FIELDS

R&D and Testing of wide variety but small quantity ac power supply manufacturers

R&D and Testing of wide variety and compact consumer device manufacturers

Testing of battery-powered modules

Used as the power source for relay and switch characteristic testing.

Used as the power source for product inspection lines of devices in wide variety

Used as the power source for LCD or battery formation



E. UNIQUE FEATURES

Inrush Current Measurement and Inrush Current Limiter

An electronic device containing a capacitor type rectifier, an inrush current, which is larger than the rated current of the device, may flow through the power line immediately after the device is turned on. APS-1102A, with peak current hold capability, is able to measure this short time inrush current. On the other hand, the large inrush current flows through the power line may cause the voltage drop, so the electronic device should be able to limit thiseffect to a certain extent. APS-1102A can supply four times as large peak current as the rated current to support this test.

The output current can be limited by setting the maximum output current (peak/average current) in advance, so the prototypes can be protected from abnormal current damage during development evaluation. However, to measure the inrush current of a completed product, the peak current limiter should be set at the maximum value to get a correct measurement result.



Harmonic Current Measurement Function

Switching power sources are widely used in both consumer and industrial electrical products in to day’s market. With the capacitor type rectifier, the switching power source has its disadvantages using an input AC source carrying significant amount of harmonic current. When a large amount of harmonic current flows through the power source line, the switching power supply in the device may experience operation faults caused by the voltage distortion, leadingto transformer overheat and possibly resulting in a hazardous accident. APS-1102A includes a harmonic current measuring function, which can be performed under AC-INT mode at the fundamental wave setting (panel frequency setting) of either 50 Hz or 60 Hz. Absolute values of harmonic current in RMS and the harmonic to fundamental ratios up to the 40th harmonics ( 2 kHz at 50 Hz fundamental) can be measured and displayed.



F. APPLICATION EXAMPLES

DC to DC converter verification:

In the general environment, the input source of DC to DC converter couldn't be a perfect DC. It may contain some AC ripples riding on a DC source due to the sample rectifier and filtering circuit used in the consumer products. AC+DC source is used as the simulation of input power to do the characteristic verification of DC to DC converter.



Transformer verification:

Ideally the voltage flows through transformer should be a pure AC; however, in the general environment, it may also contain a DC component, which may cause magnetic saturation of the transformer and therefore reduce its efficiency. AC+DC source is the simulation of such power environment.



Capacitor verification:

The main function of a capacitor is to block the DC voltage and connect the AC voltage in most of the circuits. The DC voltage imposed on the Capacitor, however, will generate extra heat and gradually degrade the function of the capacitor. AC+DC source could be used to test the durability and reliability of a capacitor.



LCD formation:

APS-1102A provides various types of power source that suits the application of the formation of LCD panel in the manufacturing process. The power source could be AC or AC+DC at various levels of output. Formation is an important process to format the liquid crystal cells inside the panel, so the polarity of the crystal cells could be well-arranged to become functional.



G. REMOTE CONTROL SOFTWARE

APS-1102A includes a multi-functional and user-friendly software, which supports the remote control of panel operations, Sequence editing and execution, Arbitrary waveform editing and transfer, and Data logging via USB interface:

A. Data logging, B. Sequence editing and execution, C. Arbitrary waveform editing and transfer, D. Remote control of panel operations

03



제품 사양

AC 출력

용량

최대 1kVA (AC 입력 180~250V)

최대 750VA (AC 입력 100~180V)

전압 (rms)

100V 범위

0.0V~155.0V (분해능 0.1V)

200V 범위

0.0V~310.0V (분해능 0.1V)

전류 (rms)

100V 범위

10A

200V 범위

5A

최대

100V 범위

40Apk

피크전류

200V 범위

20Apk

주파수

설정 범위

1Hz~550Hz (분해능 0.1Hz)

정확도

±(0.01% set)(1.0Hz~550.0Hz, 23℃±5℃)

파형 출력

Sine, Square, Arbitrary(16종류)

DC 출력

용량

최대 1kW (AC 입력 180~250V)

최대 750W (AC 입력 100~180V)

전압

100V 범위

-220V~+220V (분해능 0.1V)

200V 범위

-440V~+440V (분해능 0.1V)

전류

100V 범위

10A

200V 범위

5A

출력 특성

출력 기능

연속, 시퀀스

출력 모드

AC-INT, AC+DC-INT, AC-ADD, AC+DC-ADD,

AC-EXT,AC+DC-EXT, AC-SYNC, AC+DC-SYNC

신호원

INT, EXT, ADD(INT+EXT), SYNC

라인 변동률

최대 0.2% (100V/120V/230V 입력, 무부하, 정격 출력)

부하 변동률

최대 0.5% (무부하 및 정격 저항 부하)

출력 전압 왜곡

최대 0.5% (50/60Hz, 정격 전압의 ±50% 이상)

측정 기능



Full Scale/범위

분해능

정확도 (23℃±5℃)

주파수 카운터

1.0~550.0Hz

0.1Hz

±(0.01% set)

RMS  전압

45~65Hz

100V : 250.0Vrms

0.1Vrms

±(0.5% rdg+0.3Vrms)

200V : 500.0Vrms

0.1Vrms

±(0.5%rdg+0.6Vrms)

DC, 40~550Hz

100V : 250.0Vrms

0.1Vrms

±(0.7% rdg+0.9Vrms)

200V : 500.0Vrms

0.1Vrms

±(0.7%rdg+1.8Vrms)

RMS 전류

45~65Hz

15.00Arms

0.01Arms

±(0.5% rdg+0.04Arms)

DC, 40~550Hz

15.00Arms

0.01Arms

±(0.7% rdg+0.08Arms)

출력 전류 : 최대 전류의 5%~100%

전력

45~65Hz

1200W

1W

±(2% rdg+1W)

DC, 40~550Hz

1200W

1W

±(3% rdg+12W)

출력 전압/전류 :50V 이상/최대 전류의 10%~100%

부하 역률

0.00~1.00

0.01

-

부하 파고율

0.00~50.00

0.01

-

EXT SYNC 주파수

38.0Hz~525.0Hz

0.1Hz

±0.2Hz (23℃±5℃)

위상 (출력 ON)

0.0°~359.9°

0.1°



일반

시퀀스

메모리

30세트

스텝

최대 255스텝

스텝 시간

0.0001s~999.9999s (분해능 0.1ms)

외부 입력

이득

100V 범위 : 0.0~220.0배 (분해능 0.1,초기 값 100.0)

(EXT/ADD)

200V 범위 : 0.0~440.0배 (분해능 0.1,초기 값 200.0)



정확도

±5% (DC, 45Hz~65Hz), 이득 초기 값 설정, 정격 전압 출력, 무부하

저장/호출 메모리

30세트

인터페이스

기본 : USB(USBTMC), RS-232C

AC 입력 전원

AC 100V~230V±10%;50Hz/60Hz±2Hz, 단상

소모 전력

최대 1.4kVA

역률

AC 100V 입력 : 최소 0.95;

AC 200V 입력 : 최소 0.9

치수 및 무게

258(W) x 176(H) x 440(D) mm, 약9.7kg






옵션 및 악세서리

기본 액세서리

사용 설명서 x 1, 원격 제어소프트웨어 CD x 1, 전원 코드 x 1

옵션 액세서리

GRA-409

랙 어댑터패널 (19”, 4U)

GTL-246

USB 케이블, USB 2.0, A-B 타입, 4P

GTL-234

RS-232 케이블

라인업

주문 정보

APS-1102A

1채널프로그래머블 스위칭 AC/DC 전원 공급기 (1kVA)

견적요청

옵션 액세서리

GRA-409

랙 어댑터패널 (19”, 4U)

251,000원

GTL-246

USB 케이블, USB 2.0, A-B 타입, 4P

14,000원

GTL-234

RS-232 케이블

154,000원



상기 가격은 부가세 별도 가격입니다.
