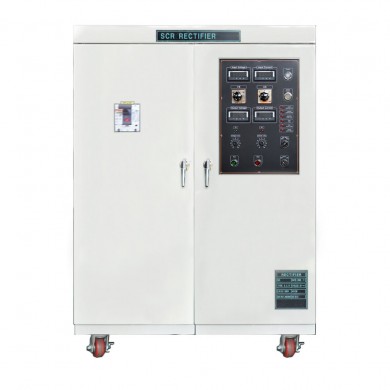

SCR정류기 (PTRF-S Series)
■ FEATURE
|
SCR CONTROL TYPE 가변형 직류전원공급기 C.V(정전압) & C.C(정전류) MODE OPERATION 전압 , 전류 DIGITAL METER OCP / OVP PROTECTION 보호기능 대용량 DC 20KW ~ 600KW 가변형 직류전원공급기 EXT ANALOG SIGNAL INPUT CONTROL (옵션) EXT ANALOG SIGNAL OUTPUT MONITORING (옵션) EXT DC OUTPUT ON-OFF 접점 (옵션) RS-232C & RS-485 Interface (옵션) |
|
■ SELECT GUIDE (모델명 구성 예 : PTRF - 용량 - 전압 )
|
전압/전류 |
20 V |
30 V |
50 V |
80 V |
100 V |
150 V |
200 V |
300 V |
500 V |
800 V |
1000 V |
1500 V |
2000 V |
|
20 A |
|
|
|
|
|
|
|
|
|
|
20 KW |
30 KW |
40 KW |
|
30 A |
|
|
|
|
|
|
|
|
|
24 KW |
30 KW |
45 KW |
60 KW |
|
50 A |
|
|
|
|
|
|
|
|
25 KW |
40 KW |
50 KW |
75 KW |
100 KW |
|
100 A |
|
|
|
|
|
|
20 KW |
30 KW |
50 KW |
80 KW |
100 KW |
150 KW |
200 KW |
|
200 A |
|
|
|
|
20 KW |
30 KW |
40 KW |
60 KW |
100 KW |
160 KW |
200 KW |
300 KW |
400 KW |
|
300 A |
|
|
|
24 KW |
30 KW |
45 KW |
60 KW |
90 KW |
150 KW |
240 KW |
300 KW |
450 KW |
|
|
500 A |
|
|
25 KW |
40 KW |
50 KW |
75 KW |
100 KW |
150 KW |
250 KW |
400 KW |
500 KW |
|
|
|
700 A |
|
21 KW |
35 KW |
56 KW |
70 KW |
105 KW |
140 KW |
210 KW |
350 KW |
|
|
|
|
|
1000 A |
20 KW |
30 KW |
50 KW |
80 KW |
100 KW |
150 KW |
200 KW |
300 KW |
500 KW |
|
|
|
|
|
1500 A |
30 KW |
45 KW |
75 KW |
120 KW |
150 KW |
225 KW |
300 KW |
450 KW |
|
|
|
|
|
|
2000 A |
40 KW |
60 KW |
100 KW |
160 KW |
200 KW |
300 KW |
400 KW |
|
|
|
|
|
|
|
3000 A |
60 KW |
90 KW |
150 KW |
240 KW |
300 KW |
450 KW |
|
|
|
|
|
|
|
|
5000 A |
100 KW |
150 KW |
250 KW |
400 KW |
500 KW |
|
|
|
|
|
|
|
|
■ SPECIFICATIONS
|
SPECIFICATION |
MODEL |
PTRF-20K |
PTRF-30K |
PTRF-50K |
PTRF-60K |
PTRF-100K |
PTRF-150K |
PTRF-200K |
|
DC OUTPUT |
50V |
50V |
100V |
200V |
200V |
150V |
200V |
|
|
DC OUTPUT |
WATTAGE |
20KW |
30KW |
50KW |
60KW |
100KW |
150KW |
200KW |
|
VOLTAGE (C.V) |
5~50V |
5~50V |
10~100V |
20~200V |
20~200V |
15~150V |
20~200V |
|
|
CURRENT (C.C) |
40~400A |
60~600A |
50~500A |
30~300A |
50~500A |
100~1000A |
100~1000A |
|
|
RIPPLE & NOISE (20Hz to 20MHz) |
≤±1% |
≤±1% |
≤±2% |
≤±2% |
≤±2% |
≤±3% |
≤±3% |
|
|
LOAD REGULATION |
≤±0.5% |
≤±0.5% |
≤±0.7% |
≤±0.7% |
≤±0.7% |
≤±1% |
≤±1% |
|
|
LINE REGULATION |
≤±0.5% |
≤±0.5% |
≤±0.7% |
≤±0.7% |
≤±0.7% |
≤±1% |
≤±1% |
|
|
CONTROL&DISPLAY |
VOLTAGE |
0.1V |
0.1V |
0.1V |
1V |
1V |
0.1V |
1V |
|
CURRENT |
1A |
1A |
1A |
1A |
1A |
1A |
1A |
|
|
WEIGHT (APPROX) |
150kg |
200kg |
350kg |
300kg |
400kg |
650kg |
950kg |
|
|
DIMENSION (W*H*D mm) |
600x1400x800 |
600x1400x800 |
700x1600x800 |
700x1600x800 |
700x1600x800 |
700x1800x800 |
700x1800x800 |
|
|
> COMMON FUNCTION |
||
|
RECTIFICATION TYPE |
SCR Control Type |
|
|
OPERATING MODE |
C.V / C.C Mode |
|
|
DISPLAYER |
VOLTAGE |
7 Segment LED 3 1/2 Digit Digital Display |
|
CURRENT |
7 Segment LED 3 1/2 Digit Digital Display |
|
|
PROTECTION |
OVER VOLTAGE |
Full Scale Of DC Output VOLTAGE + 3% (Output shut down) |
|
OVER CURRENT |
Full Scale Of DC Output CURRENT + 3% |
|
|
TEMPERATURE |
Only Heat Sink 85℃ |
|
|
AC INPUT SOURCE |
AC 380V / 440V ± 10% , 50/60Hz (CUSTOMER MADE) |
|
|
AC-DC OUTPUT EFFICIENCY |
AC Input 3-Phase Approx. 70%~80% |
|
|
OPERATING ENVIRONMENT |
0~50℃ , 80% R.H. |
|
|
ACCESSORIES |
AC Input Cord, Manual , DC Output Cable |
|
