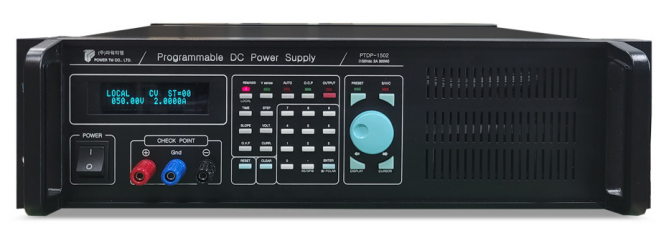

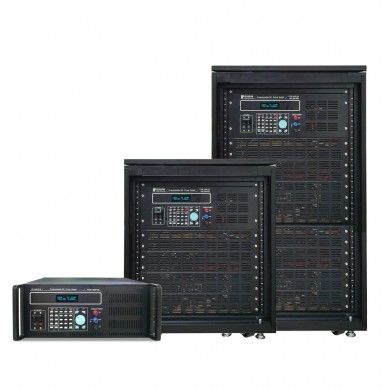

| Programmable DC Power Supply (PTDP-Series)



제품명 Programmable DC Power Supply
모델명 PTDP-Series
특 징 •정밀급/리니어타입 / 1채널
상세사양

•용량:100W~15KW

•전압:10V~500Vdc

인터페이스 •RS-232C / RS-485
브랜드 파워티엠 / Korea
판매가격 전화문의 : ☎031-750-0440
배송비 무료배송

상품 기본설명

Programmable DC Power Supply (PTDP-Series)

제품사양

■ FEATURE

* LINEAR TYPE 프로그램 가능한 가변형DC전원공급기

* C.V(정전압) & C.C(정전류) MODE OPERATION

* AUTO-SEQUENCE (자동순차, 파형구현 및 반복실행)

* 펄스파형, 삼각파형, 계단파형 등 기타 파형 구현 가능

* 메모리 저장 및 호출 100 STEP

* 시간/기울기/전압/전류/반복횟수 설정 및 호출 기능

* SEQUENCE GROUP 메모리 기능 (10 GROUP)

* OVP 과전압 (임의설정가능), OCP 과전류 보호기능

* OUTPUT ON/OFF FUNCTION





* 전압,전류 PRESET FUNCTION

* 외부 CALIBRATION 설정 기능

* V-SENSING (DROP 전압보상) 기능

* 4 ⅓  DISPLAY & CONTROL RESOLUTION

* HIGH STABILITY & HIGH ACCURACY

* LOW RIPPLE & LOW DRIFT

* 16BIT "V.F.D" DIGITAL DISPLAY 2-LINE

* RS-232C / RS-485 인터페이스 기본탑재



■ SELECTION GUIDE

 전압

전류

0~30V

0~50V

0~100V

0~150V

0~200V

0~300V

0~500V

0~1A

-

-

PTDP-1001

PTDP-1501

PTDP-2001

PTDP-3001

PTDP-5001

0~2A

-

-

PTDP-1002

PTDP-1502

PTDP-2002

PTDP-3002

PTDP-5002

0~3A

-

PTDP-503

PTDP-1003

PTDP-1503

PTDP-2003

PTDP-3003

PTDP-5003

0~5A

PTDP-305

PTDP-505

PTDP-1005

PTDP-1505

PTDP-2005

PTDP-3005

PTDP-5005

0~10A

PTDP-3010

PTDP-5010

PTDP-10010

PTDP-15010

PTDP-20010

PTDP-30010

PTDP-50010

0~15A

PTDP-3015

PTDP-5015

PTDP-10015

PTDP-15015

PTDP-20015

PTDP-30015

PTDP-50015

0~20A

PTDP-3020

PTDP-5020

PTDP-10020

PTDP-15020

PTDP-20020

PTDP-30020

-

0~30A

PTDP-3030

PTDP-5030

PTDP-10030

PTDP-15030

PTDP-20030

-

-

0~50A

PTDP-3050

PTDP-5050

PTDP-10050

PTDP-15050

PTDP-20050

-

-

0~100A

PTDP-30100

PTDP-50100

PTDP-100100

PTDP-150100

PTDP-200100

-

-

0~150A

PTDP-30150

PTDP-50150

PTDP-100150

PTDP-150150

PTDP-200150

-

-

0~200A

PTDP-30200

PTDP-50200

PTDP-100200

PTDP-150200

-

-

-

0~300A

PTDP-30300

PTDP-50300

PTDP-100300

-

-

-

-

0~500A

PTDP-30500

PTDP-50500

 -

-

-

-

-

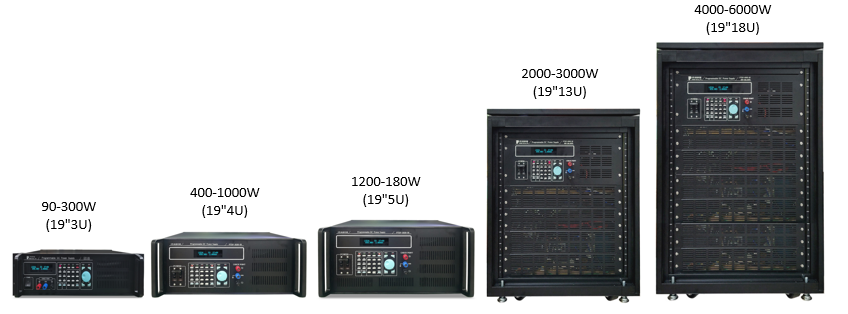

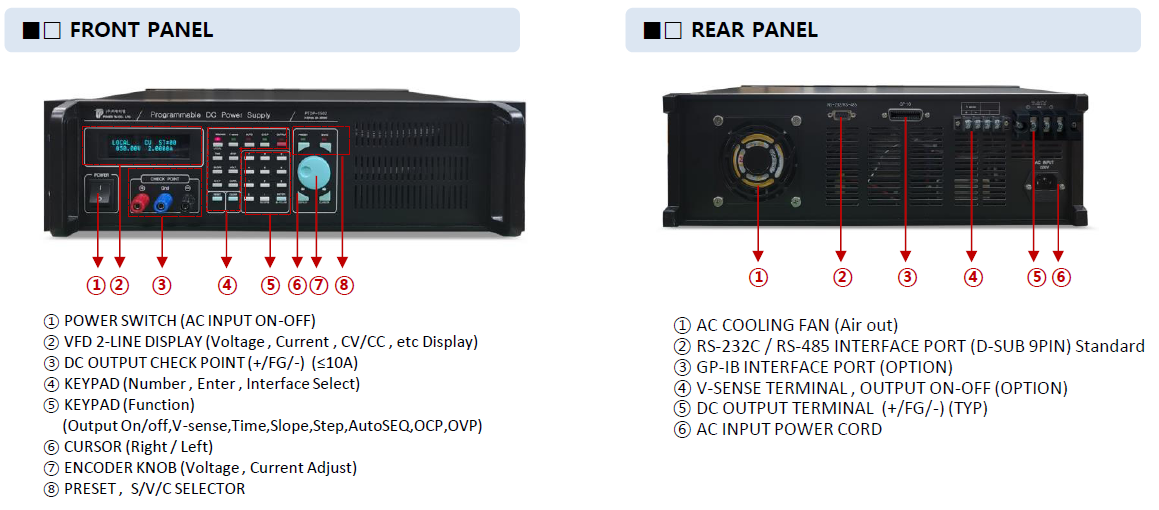

■ DIMENSION

◆90~200Watt

W: 250mm x D:360mm X H: 177mm (4U)

◆300~600Watt

W: 435mm x D:360mm X H: 177mm (19" 4U Rack)

◆750~1000Watt

W: 435mm x D:500mm X H: 177mm (19" 4U Rack)

◆1200~1800Watt

W: 435mm x D:500mm X H: 223mm (19" 5U Rack)

◆2000~4000Watt

W: 600mm x D:650mm X H: 800mm

◆5000W~8000Watt

W: 600mm x D:750mm X H: 1200mm

◆9000W~15000Watt

W: 600mm x D:900mm X H: 1600mm





■ SPECIFICATIONS

PTDP 150W Series

MODEL

PTDP-305

PTDP-503

PTDP-1501

OUTPUT

30V 5A

50V 3A

150V 1A

OUTPUT

WATT

150W

150W

150W

VOLTAGE(CV)

0 ~ 30V

0 ~ 50V

0 ~ 150V

CURRENT(CC)

0 ~ 5A

0 ~ 3A

0 ~ 1A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.06% + 10㎷

0.06% + 20㎷

0.06% + 80㎷

Current

0.1% + 5㎃

0.1% + 5㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

1.5㎷/10㎷

1.5㎷/12㎷

15㎷/30㎷

Current

10㎃

6㎃

5㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.06% + 15㎷

0.06% + 20㎷

0.06% + 80㎷

Current

0.1%+8㎃

0.1%+6㎃

0.1%+3㎃

LOAD REGULATION

Voltage

7㎷

10㎷

20㎷

Current

5㎃

3㎃

3㎃

LINE REGULATION

Voltage

3㎷

3㎷

20㎷

Current

2㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

0.1㎃

0.1㎃

0.1㎃

WEIGHT (APPROX)

13 Kg

14 Kg

12 Kg

DIMENSION(W*H*D ㎜)

250*177*360

250*177*360

250*200*360



PTDP SERIES 300W

MODEL

PTDP-3010

PTDP-605

PTDP-3001

OUTPUT

30V 10A

60V 5A

300V 1A

OUTPUT

WATT

300W

300W

300W

VOLTAGE(CV)

0 ~ 30V

0 ~ 60V

0~300V

CURRENT(CC)

0 ~ 10A

0 ~ 5A

0~1A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 6㎷

0.04% + 30㎷

0.1% + 150㎷

Current

0.1% + 10㎃

0.1% + 5㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

3㎷/6㎷

6㎷/12㎷

30㎷/90㎷

Current

20㎃

10㎃

6㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 6㎷

0.04% + 30㎷

0.1% + 150㎷

Current

0.1% + 10㎃

0.1% + 5㎃

0.1%+3㎃

LOAD REGULATION

Voltage

3㎷

10㎷

30㎷

Current

10㎃

5㎃

3㎃

LINE REGULATION

Voltage

3㎷

10㎷

30㎷

Current

2㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

1㎃

1㎃

0.1㎃

WEIGHT (APPROX)

27 Kg

27 Kg

25 Kg

DIMENSION(W*H*D ㎜)

432*133*360

432*133*360

432*133*360



PTDP SERIES 500W

MODEL

PTDP-3015

PTDP-5010

PTDP-5001

OUTPUT

30V 15A

50V 10A

500V 1A

OUTPUT

WATT

450W

500W

500W

VOLTAGE(CV)

0 ~ 30V

0 ~ 50V

0~500V

CURRENT(CC)

0 ~ 15A

0 ~ 10A

0~1A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 7㎷

0.04% + 20㎷

0.1% + 300㎷

Current

0.1% + 15㎃

0.1% + 10㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

4㎷/7㎷

5㎷/10㎷

50㎷/150㎷

Current

30㎃

20㎃

6㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 7㎷

0.04% + 20㎷

0.1% + 300㎷

Current

0.1%+15㎃

0.1% + 10㎃

0.1%+3㎃

LOAD REGULATION

Voltage

4㎷

10㎷

100㎷

Current

15㎃

10㎃

3㎃

LINE REGULATION

Voltage

4㎷

10㎷

100㎷

Current

2㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

100㎷

Current

1㎃

1㎃

0.1㎃

WEIGHT (APPROX)

33 Kg

32 Kg

35 Kg

DIMENSION(W*H*D ㎜)

432*177*360

432*177*360

432*177*360



PTDP SERIES 600W

MODEL

PTDP-3020

PTDP-6010

PTDP-3002

OUTPUT

30V20A

60V10A

300V2A

OUTPUT

WATT

600W

600W

600W

VOLTAGE(CV)

0 ~ 30V

0 ~ 60V

0 ~ 300V

CURRENT(CC)

0 ~ 20A

0 ~ 10A

0 ~ 2A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 7㎷

0.04% + 30㎷

0.1% + 150㎷

Current

0.1% + 20㎃

0.1% + 10㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

4㎷/7㎷

6㎷/12㎷

30㎷/90㎷

Current

40㎃

20㎃

6㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 7㎷

0.04% + 30㎷

0.1% + 150㎷

Current

0.1% + 20㎃

0.1% + 10㎃

0.1% + 3㎃

LOAD REGULATION

Voltage

4㎷

10㎷

30㎷

Current

20㎃

10㎃

3㎃

LINE REGULATION

Voltage

4㎷

10㎷

30㎷

Current

2㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

1㎃

1㎃

0.1㎃

WEIGHT (APPROX)

43 Kg

37 Kg

37 Kg

DIMENSION(W*H*D ㎜)

432*177*360

432*177*360

432*177*360



PTDP SERIES 1000W

MODEL

PTDP-3030

PTDP-5020

PTDP-3003

OUTPUT

30V 30A

50V 20A

300V 3A

OUTPUT

WATT

900W

1000W

900W

VOLTAGE(CV)

0 ~ 30V

0 ~ 50V

0 ~ 300V

CURRENT(CC)

0 ~ 30A

0 ~ 20A

0 ~ 3A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 8㎷

0.04% + 20㎷

0.1% + 150㎷

Current

0.1% + 30㎃

0.1% + 20㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

4㎷/8㎷

5㎷/10㎷

30㎷/90㎷

Current

60㎃

40㎃

6㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 8㎷

0.04% + 20㎷

0.1% + 150㎷

Current

0.1%+30㎃

0.1%+20㎃

0.1% + 3㎃

LOAD REGULATION

Voltage

5㎷

10㎷

30㎷

Current

30㎃

20㎃

3㎃

LINE REGULATION

Voltage

5㎷

10㎷

30㎷

Current

3㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

1㎃

1㎃

0.1㎃

WEIGHT (APPROX)

57 Kg

55 Kg

52 Kg

DIMENSION(W*H*D ㎜)

432*177*500

432*177*500

432*177*500



PTDP SERIES 1500W

MODEL

PTDP-3050

PTDP-15010

PTDP-5003

OUTPUT

30V 50A

150V 10A

500V 3A

OUTPUT

WATT

1500W

1500W

1500W

VOLTAGE(CV)

0 ~ 30V

0~150V

0~500V

CURRENT(CC)

0 ~ 50A

0~10A

0~3A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 10㎷

0.06% + 80㎷

0.1% + 300㎷

Current

0.1% + 50㎃

0.1% + 10㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

5㎷/10㎷

15㎷/30㎷

50㎷/150㎷

Current

100㎃

20㎃

6㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 10㎷

0.06% + 80㎷

0.1% + 300㎷

Current

0.1%+50㎃

0.1%+10㎃

0.1%+3㎃

LOAD REGULATION

Voltage

7㎷

20㎷

100㎷

Current

50㎃

10㎃

3㎃

LINE REGULATION

Voltage

7㎷

20㎷

100㎷

Current

5㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

100㎷

Current

10㎃

1㎃

0.1㎃

WEIGHT (APPROX)

65 Kg

63 Kg

62 Kg

DIMENSION(W*H*D ㎜)

432*222*500

432*222*500

432*222*500



PTDP SERIES 3000W

MODEL

PTDP-30100

PTDP-6050

PTDP-15020

OUTPUT

30V 100A

60V 50A

150V 20A

OUTPUT

WATT

3000W

3000W

3000W

VOLTAGE(CV)

0 ~ 30V

0~60V

0~150V

CURRENT(CC)

0 ~ 100A

0~50A

0~20A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 14㎷

0.04% + 30㎷

0.06% + 80㎷

Current

0.1% + 100㎃

0.1% + 50㎃

0.1% + 20㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

7㎷/14㎷

6㎷/12㎷

15㎷/30㎷

Current

200㎃

100㎃

40㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 14㎷

0.04% + 30㎷

0.06% + 80㎷

Current

0.1%+100㎃

0.1%+50㎃

0.1%+20㎃

LOAD REGULATION

Voltage

11㎷

13㎷

20㎷

Current

100㎃

50㎃

20㎃

LINE REGULATION

Voltage

11㎷

10㎷

20㎷

Current

10㎃

5㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

10㎃

10㎃

1㎃

WEIGHT (APPROX)

125 Kg

129 Kg

120 Kg

DIMENSION(W*H*D ㎜)

600*800*750

600*800*750

600*800*750



PTDP SERIES 6000W

MODEL

PTDP-30200

PTDP-60100

PTDP-30020

OUTPUT

30V 200A

60V 100A

300V 20A

OUTPUT

WATT

6000W

6000W

6000W

VOLTAGE(CV)

0 ~ 30V

0 ~ 60V

0~300V

CURRENT(CC)

0 ~ 200A

0 ~ 100A

0~20A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 23㎷

0.04% + 30㎷

0.1% + 150㎷

Current

0.1% + 200㎃

0.1% + 100㎃

0.1% + 20㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

12㎷/23㎷

6㎷/12㎷

30㎷/90㎷

Current

400㎃

200㎃

40㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 23㎷

0.04% + 30㎷

0.1% + 150㎷

Current

0.1%+200㎃

0.1%+100㎃

0.1%+20㎃

LOAD REGULATION

Voltage

12㎷

15㎷

30㎷

Current

200㎃

100㎃

20㎃

LINE REGULATION

Voltage

20㎷

20㎷

30㎷

Current

20㎃

10㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

10㎃

10㎃

1㎃

WEIGHT (APPROX)

200 Kg

200 Kg

200 Kg

DIMENSION(W*H*D ㎜)

600*1200*750

600*1200*750

600*1200*750








옵션 및 악세서리

■ OPTIONS



* GP-IB (IEEE488.2)  INTERFACE FOR PC (옵션)



* EXT ANALOG SIGNAL INPUT CONTROL (옵션)



* EXT ANALOG SIGNAL OUTPUT MONITORING (옵션)



* EXT DC OUTPUT ON-OFF 접점 (1-PULSE) (옵션)



* Ext Pulse&Reverse: 바이폴라 ON-OFF 접점 (옵션)



* 바이폴라 : Pulse & Reverse DC (+)(-) 정역기능(옵션)

라인업


■ SELECTION GUIDE

 전압

전류

0~30V

0~50V

0~100V

0~150V

0~200V

0~300V

0~500V

0~1A

-

-

PTDP-1001

PTDP-1501

PTDP-2001

PTDP-3001

PTDP-5001

0~2A

-

-

PTDP-1002

PTDP-1502

PTDP-2002

PTDP-3002

PTDP-5002

0~3A

-

PTDP-503

PTDP-1003

PTDP-1503

PTDP-2003

PTDP-3003

PTDP-5003

0~5A

PTDP-305

PTDP-505

PTDP-1005

PTDP-1505

PTDP-2005

PTDP-3005

PTDP-5005

0~10A

PTDP-3010

PTDP-5010

PTDP-10010

PTDP-15010

PTDP-20010

PTDP-30010

PTDP-50010

0~15A

PTDP-3015

PTDP-5015

PTDP-10015

PTDP-15015

PTDP-20015

PTDP-30015

PTDP-50015

0~20A

PTDP-3020

PTDP-5020

PTDP-10020

PTDP-15020

PTDP-20020

PTDP-30020

-

0~30A

PTDP-3030

PTDP-5030

PTDP-10030

PTDP-15030

PTDP-20030

-

-

0~50A

PTDP-3050

PTDP-5050

PTDP-10050

PTDP-15050

PTDP-20050

-

-

0~100A

PTDP-30100

PTDP-50100

PTDP-100100

PTDP-150100

PTDP-200100

-

-

0~150A

PTDP-30150

PTDP-50150

PTDP-100150

PTDP-150150

PTDP-200150

-

-

0~200A

PTDP-30200

PTDP-50200

PTDP-100200

PTDP-150200

-

-

-

0~300A

PTDP-30300

PTDP-50300

PTDP-100300

-

-

-

-

0~500A

PTDP-30500

PTDP-50500

 -

-

-

-

-





*** 본 (주)파워티엠 홈페이지의 게시물 및 제품 자료를 사전 동의없이 무단으로 복사 및 배포를 금지합니다. ***


이 분류에 등록된 다른 상품이 없습니다. 전체목록 ▲ 맨위로 ◀◀ 뒤로가기

배송정보

★ 배송정보 ★
1. 재고 보유상품의 경우 입금확인 후 1~3일 정도 상품 준비기간이 소요되며, 주문량이 많을 경우
    준비기간이 조금 더 소요될 수 있습니다.
    (단, 재고 소진 상품의 경우 배송기간이 3주~4주 소요될수 있사오니 참고바랍니다.)
2. 주문하신 상품은 배송완료 문자를 받아보신 후 1~2일 이내에 수령하실 수 있습니다.
3. 10만원 이상 구매시 배송료는 무료입니다.
※ 해외배송은 무료배송이벤트에서 제외됩니다.해외배송 상품무게는 별도 측정 후
    주문상품 구매액 + 운임료와 함께 결제해주셔야 합니다.



관련상품

★ 관련상품 ★

등록된 상품이 없습니다.







회사소개



전력전자제품



계측기기제품



제어계측시스템



자료실



고객지원

인사말

회사소개

회사연혁

오시는길

DC파워서플라이

SMPS/ LED컨버터

전자로드(전자부하기)

AC파워소스

AC/DC 저항로드뱅크

소스측정장치(소스메타)

디지털멀티메터

오실로스코프

스펙트럼분석기

클램프메터(전류계)

파워메터(전력분석기)

제네레이터/파형발생기

저항계 / LCR메터

안전규격관련 시험기

데이터로거/레코더

열화상카메라

기타 계측기





충방전시스템

신뢰성시험기

자동차부품시험

발전기 시험기

소프트웨어

매뉴얼 자료실

프로그램 자료실

카타로그 자료실

사양서 자료실

기술 자료실

공지사항

이벤트게시판

1:1문의

온라인 A/S요청

교정접수안내

교정신청서



견적요청

온라인 견적요청

업체명: (주)파워티엠 | 대표자: 차효정 | 주소: 경기도 성남시 중원구 갈마치로 302, B동 602호(상대원동,우림라이온스밸리5차)
전화(Tel): 031-750-0440 | 팩스(Fax): 031-750-0442 | e메일: powertm@powertm.co.kr
사업자등록번호: 215-87-96171 | 통신판매업신고: 제2016-성남중원-0113호
Copyright © (주)파워티엠. All Rights Reserved.
